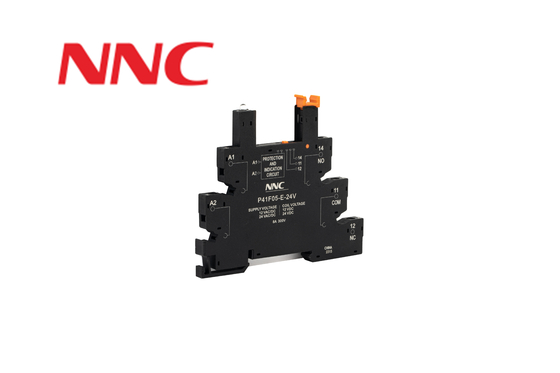

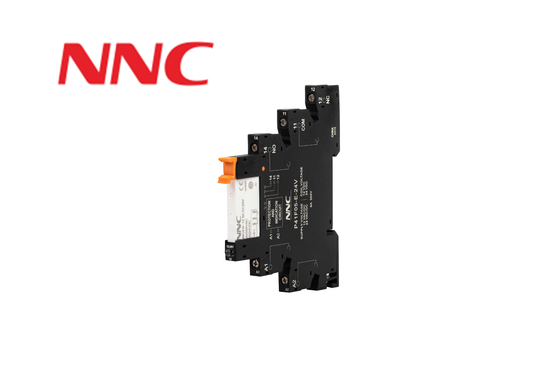

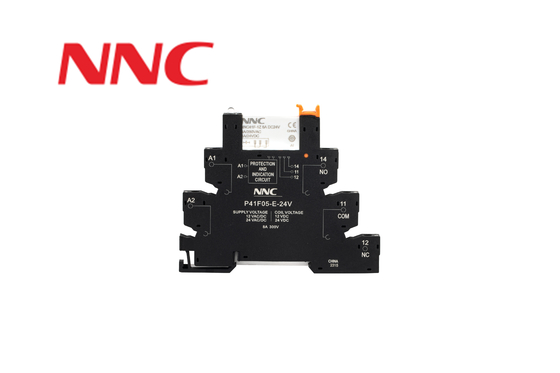

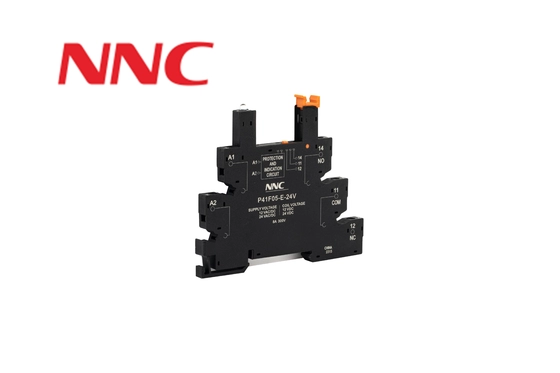

NNC Relay Socket P41F05-E-24V 8A Guide rail mounting type suitable for NNC41 slim relay

  • NNC Relay Socket P41F05-E-24V 8A Guide rail mounting type suitable for NNC41 slim relay
  • NNC Relay Socket P41F05-E-24V 8A Guide rail mounting type suitable for NNC41 slim relay
  • NNC Relay Socket P41F05-E-24V 8A Guide rail mounting type suitable for NNC41 slim relay
Place of Origin China
Brand Name NNC
Model Number P41F05-E-24V
Minimum Order Quantity 1200pcs
Price get latest price
Delivery Time 7-14 days
Payment Terms L/C, T/T
Supply Ability 50,000pcs a week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Theory Relay Socket Load Current 8A
Insulation Voltage 300A Applied For Relay Type NNC41
Leave a Message
Product Description
P41F05-E-24V Relay Socket
NNC Relay Socket P41F05-E-24V 8A Guide rail mounting type suitable for NNC41 slim relay 0
NNC Relay Socket P41F05-E-24V 8A Guide rail mounting type suitable for NNC41 slim relay 1

1 产品类型(TYPE MODEL)
型号(TYPE) P41F05-E-24V
特性(Characteristics)1Z(1C 转换 changge over)
安装方式(Installation mode)导轨安装型 Guide rail mounting type

2 性能(PERFORMANCE)
2.1 负载(Load)
负载电流(Load current)8A
负载电压(Insulation voltage)300V
可应用继电型号 Applied for relay type NNC41
2.2 介质耐电压和绝缘电阻(DIELECTRIC STRENGTHS AND INSULATION RESISTANCE):
介质耐压
Dielectric voltage 2500/S
加强绝缘 Reinforced insulation
任一端子与固定导轨
Between every terminal and guide rail 2500/S
2.3 螺纹旋紧扭矩(Thread tightening torque):0.5N.m
2.4 连接导线(Connecting Wire):AWG20-14(0.5～2.5mm²)
2.5 整体插拔力(Integral insertion and removal force):1Z≤60N
2.6 耐腐蚀(Corrosion resistance):满足 GB/T2423.17-2008 盐雾试验要求,试验周期 24h
Meet the requirement of GB/T2423.17-2008 salt spray test, Test period 24h
2.8 使用环境(Operating environment):-40℃～+85℃

3 标志(MARKING)
3.1 外壳颜色(CRUST COLOR):灰白 (White)
3.2 标志位置(MARKING POSITION):侧面(Beside the body )
3.3 字符颜色(INK COLOR):黑(Black)

4:外形安装接线图(Outline installation wiring diagram)
NNC Relay Socket P41F05-E-24V 8A Guide rail mounting type suitable for NNC41 slim relay 2
Certificate

Certificate

Top quality safety 12A 300V black relay socket for sale

Shipment & Packaging



Item No. P41F05-E
Carton 600
Dimension(mm) 30.5*27.6*43.8
Net Weight(KG) 13.85
Gross Weight(KG) 14.85
