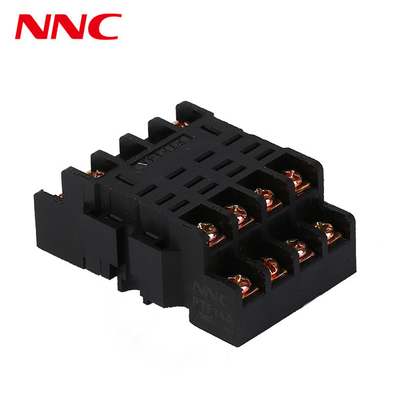

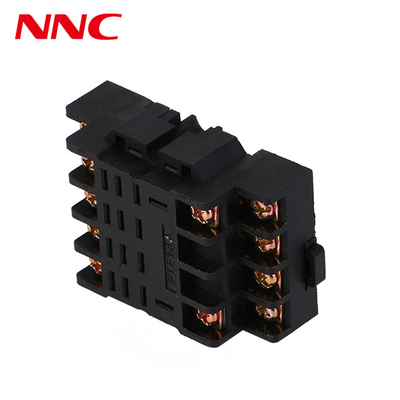

Name: Clion Industrial Control Relay NNC68A-4Z(LY4) HH54P Relay Socket PTF14A with UL certificate
Brand: CLION ELECTRIC CO.,LTD
SKU: PTF14A
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Theory: Relay Socket

Rated Current: 12A

Rated Voltage: 300A

Dielectric Strength: 2500VAC/S

Apply For Relay: NNC68A/LY Series

Basic Infomation

Place of Origin: China

Brand Name: NNC

Certification: UL

Model Number: PTF14A

Payment & Shipping Terms

Delivery Time: 7-14 days

Payment Terms: T/T

Supply Ability: 50,000pcs a week

Gallery

Clion Industrial Control Relay NNC68A-4Z(LY4) HH54P Relay Socket PTF14A with UL certificate

Product Description

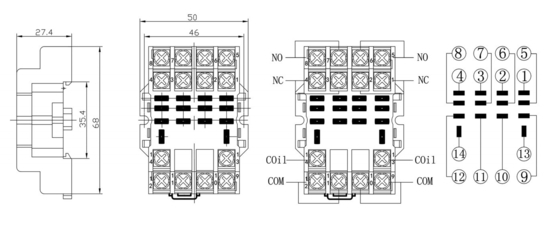

Accessory for NNC68A-4Z Relay Socket PTF14A

Clion Industrial Control Relay NNC68A-4Z(LY4) HH54P Relay Socket PTF14A with UL certificate 0

Specification
Item number	PTF14A
Rated current	12A
Rated voltage	300V
Dielectrics withstand voltage	2500V/S
Ambient temperature	-40℃ ～75℃
Material	Flame retardant –PA66+GF(V1/V0)
Material of clip clutch	QSn6.5-0.1
Installation	Standard guide rail, Screw
Accessories	/
Module	/
Weight	Approx. 78g/PCS

Certificate

Clion Industrial Control Relay NNC68A-4Z(LY4) HH54P Relay Socket PTF14A with UL certificate 2

Shipment & Packaging

			PTF14A
Packing	Inner Box	Paper box(pcs)	10
	Outer Box	Paper box(pcs)	200
	Dimension of the carton	CTN	393122.5CM
	Weight	1ctn	G.W:18KG N.W:17KG

Clion Industrial Control Relay NNC68A-4Z(LY4) HH54P Relay Socket PTF14A with UL certificate 3

FAQ

Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.

Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.

Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)

Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.

Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.

Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.

Q7: What is your warranty time of the products?
A7: 12-24 months
