Relay Socket P41F05-E-24V for NNC41 Guide Rail Mounting Type Load Current 8A Insulation Voltage 300V

600pcs
MOQ
USD 0.94-1.07
Price
Relay Socket P41F05-E-24V for NNC41 Guide Rail Mounting Type Load Current 8A Insulation Voltage 300V
Features Gallery Product Description Request A Quote
Features
Specifications
Insulation Voltage: 300V
Usage: Applied For Relay NNC41
Size: 91*6.2*77mm
Color: White
Rating: 8A
Basic Infomation
Place of Origin: China
Brand Name: NNC
Certification: UL
Model Number: P41F05-E-24V
Payment & Shipping Terms
Packaging Details: carton packing
Delivery Time: 8-15days
Payment Terms: T/T, L/C
Supply Ability: 30k pcs 7 days
Product Description
P41F05-E-24V  Relay Socket for NNC41

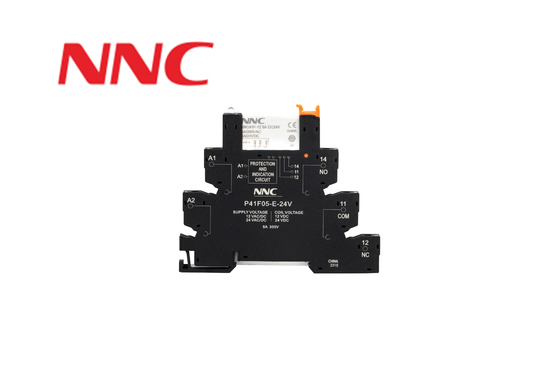

Relay Socket P41F05-E-24V for NNC41 Guide Rail Mounting Type Load Current 8A Insulation Voltage 300V 0

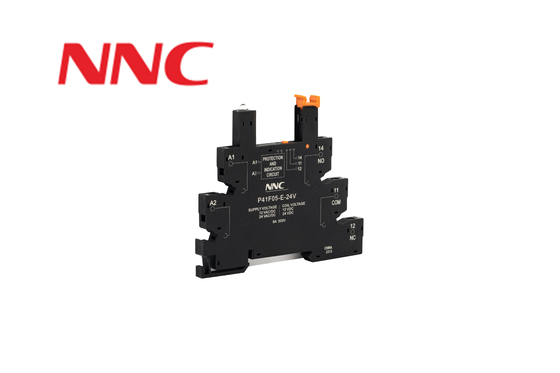

Relay Socket P41F05-E-24V for NNC41 Guide Rail Mounting Type Load Current 8A Insulation Voltage 300V 1

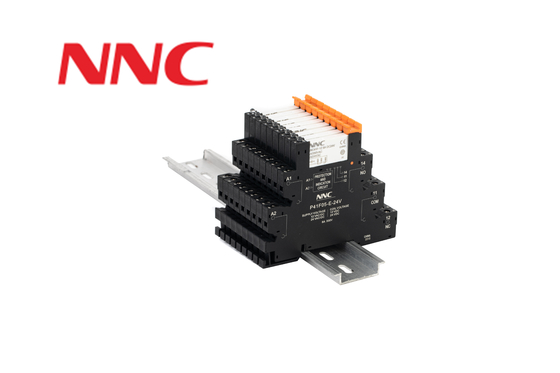

Relay Socket P41F05-E-24V for NNC41 Guide Rail Mounting Type Load Current 8A Insulation Voltage 300V 2


1 产品类型(TYPE MODEL)
特性(Characteristics)
1Z(1C 转换 changge over)
安装方式(Installation mode): 导轨安装型 Guide rail mounting type

2 性能(PERFORMANCE)
2.1 负载(Load):
负载电流(Load current)8A
负载电压(Insulation voltage)300V
2.2 介质耐电压和绝缘电阻(DIELECTRIC STRENGTHS AND INSULATION RESISTANCE):
Relay Socket P41F05-E-24V for NNC41 Guide Rail Mounting Type Load Current 8A Insulation Voltage 300V 3
2.3 螺纹旋紧扭矩(Thread tightening torque):0.5N.m
2.4 连接导线(Connecting Wire):AWG20-14(0.5～2.5mm²)
2.5 整体插拔力(Integral insertion and removal force):1Z≤60N
2.6 耐腐蚀(Corrosion resistance):满足 GB/T2423.17-2008 盐雾试验要求,试验周期 24h
Meet the requirement of GB/T2423.17-2008 salt spray test, Test period 24h
2.8 使用环境(Operating environment):-40℃～+85℃
3 标志(MARKING)
3.1 外壳颜色(CRUST COLOR):灰白 (White)
3.2 标志位置(MARKING POSITION):侧面(Beside the body )
3.3 字符颜色(INK COLOR):黑(Black)
4 外形安装接线图(Outline installation wiring diagram)
Relay Socket P41F05-E-24V for NNC41 Guide Rail Mounting Type Load Current 8A Insulation Voltage 300V 4
Relay Socket P41F05-E-24V for NNC41 Guide Rail Mounting Type Load Current 8A Insulation Voltage 300V 5
Certificate

Certificate

Relay Socket P41F05-E-24V for NNC41 Guide Rail Mounting Type Load Current 8A Insulation Voltage 300V 6

Shipment & Packaging

Shipment & Packaging

Packing Inner Box Paper box(pcs) 50
Outer Box Paper box(pcs) 500
Dimension of the carton CTN 360*210*325mm
Weight 1pc Approximate:33G
1ctn G.W:16.7KG N.W:15.7KG



Relay Socket P41F05-E-24V for NNC41 Guide Rail Mounting Type Load Current 8A Insulation Voltage 300V 7

FAQ

FAQ



Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.



Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.



Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)



Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.



Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.



Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.



Q7: What is your warranty time of the products?
A7: 12-24 months
