Name: NL-5 micro switch
Brand: CLION ELECTRIC CO.,LTD
SKU: NL-5
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Basic Infomation

Place of Origin: China

Brand Name: NNC

Certification: CE, CQC,UL

Model Number: NL-5

Payment & Shipping Terms

Packaging Details: Export packing

Delivery Time: 8 days

Payment Terms: TT

Gallery

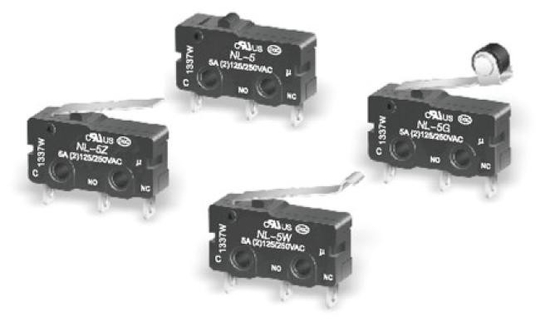

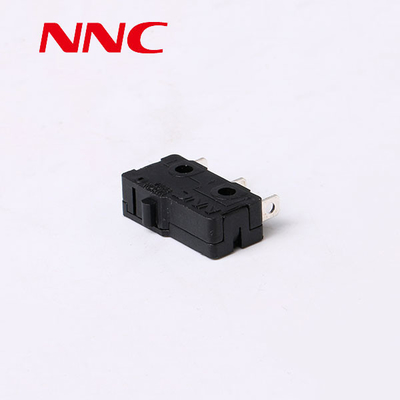

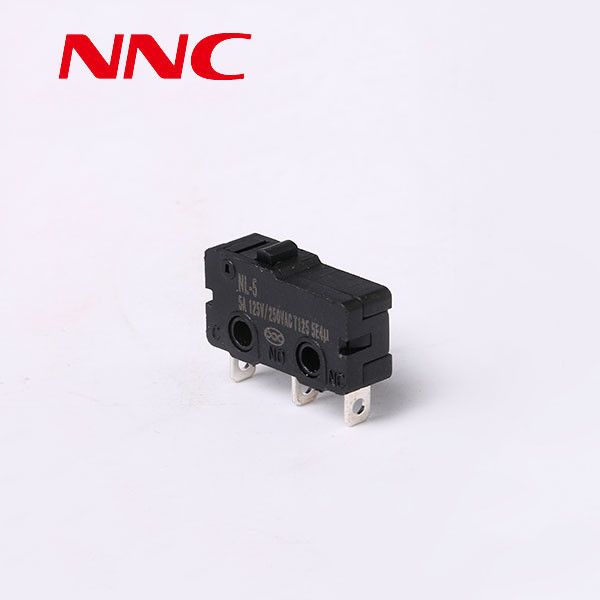

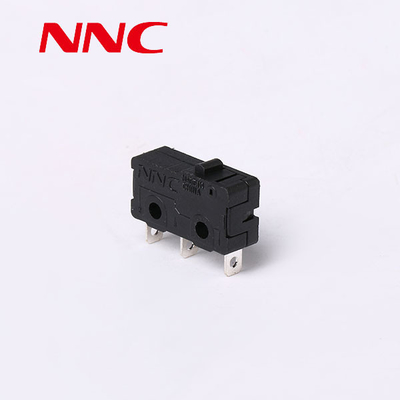

NL-5 micro switch

Product Description

https://clion.en.alibaba.com/product/60606845779-804191404/NNC_micro_switch_NL_5_Pin_Plunger_5_10A_125v_250v_ULhot_selling_products.html?spm=a2700.8304367.0.0.Baxh5r
Specifications:
- Operating speed: 0.1 to 1000mm/seconds of pin plunger, 0.5 to 1000mm/seconds of lever
- Contact resistance: 50mΩ maximum (initial value)
- Insulation resistance: 100MΩ minimum (at 500V DC)
Dielectric strength:
- 1000V, 50/60Hz 1 minute between terminals of the same polarity
- 1500V, 50/60Hz 1 minute between each terminal and no-current-carrying metal parts
- 1500V, 50/60Hz 1 minute between current-carrying metal parts and ground
Contact material: silver alloy
Protection grade: PTI IEC IP40/175
Protection grade of electric shock: class Ⅰ
Ambient temperature and humidity:
- Ambient operation temperature: -25 to +125℃ with no icing
- Humidity: 60% maximum
Life expectancy:
- Mechanical: 1,000,000 operations minute
- Electrical: 100,000 operations minute
Certifications: CQC (GB15092.1), UL (UL61058, CSA-C22.2 No 61058-1) and ENEC (EN 61058-1)
