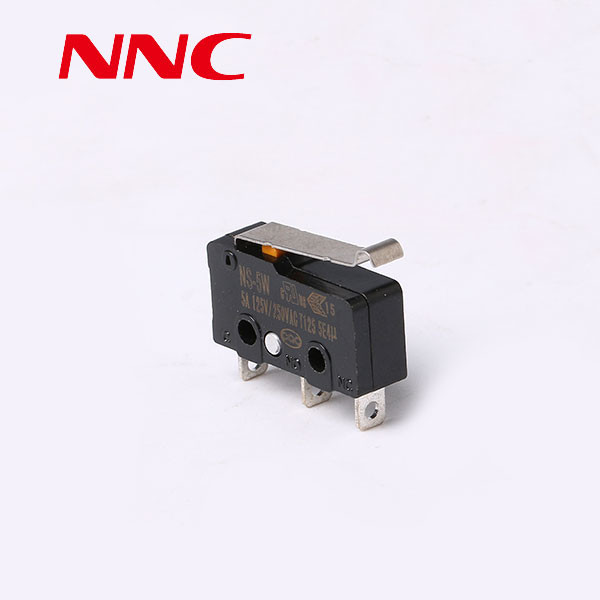

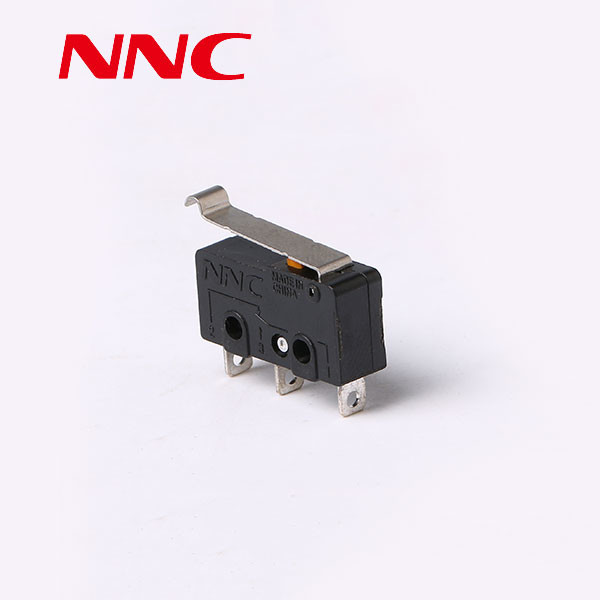

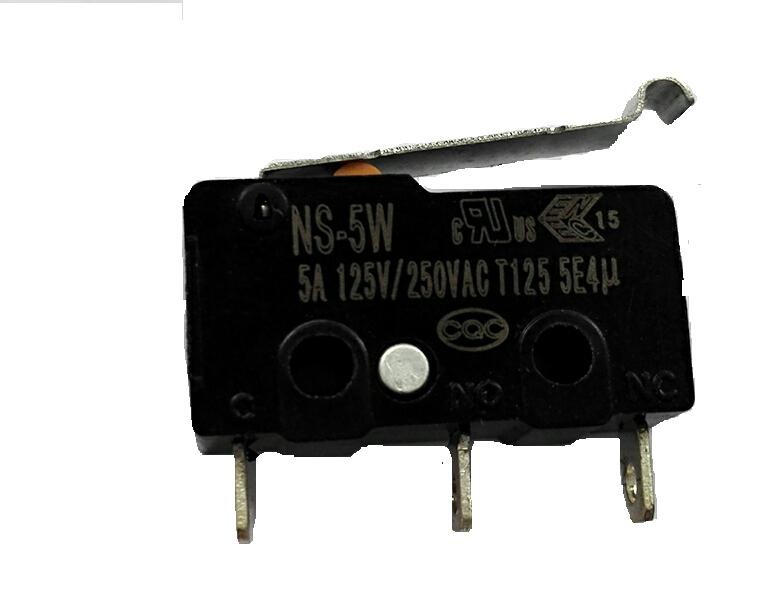

NS -5W microswitch

China NS -5W microswitch supplier
NS -5W microswitch supplier NS -5W microswitch supplier NS -5W microswitch supplier NS -5W microswitch supplier

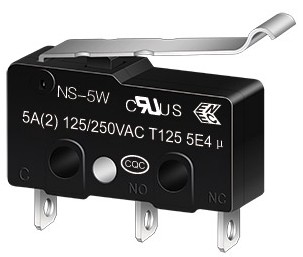

Large Image :  NS -5W microswitch

Product Details:

Place of Origin: China
Brand Name: NNC
Certification: CE, CQC,UL
Model Number: NS-5W

Payment & Shipping Terms:

Minimum Order Quantity: 5000
Price: Get Latest Price
Packaging Details: Export packing
Delivery Time: 15 days
Payment Terms: TT
Contact Now
Detailed Product Description

  • https://clion.en.alibaba.com/product/60607461867-804191404/NNC_micro_switch_NS_5W_Simulated_Roller_Lever_5_10A_125v_250v_hot_selling_products.html?spm=a2700.8304367.0.0.52Pqui
  • Specifications:
    • Rated voltage: 125/250V AC, 8/14/30/125250V DC
    • Resistive load: 5A(10A), 5A(10A), 5A(10A), 5A(10A), 4A, 0.4A and 0.2A
    • Light load NC: 1.5A
    • NO: 0.7A
    • NC: 1A
    • NO: 0.5/2/2/2/0.05/0.03A
    • Inductive load: 3/2A
    • NC: 5A
    • NO: 4A
    • NC: 4A
    • NO: 4A
    • NC: 3A
    • NO: 3A
    • NC: 0.4A
    • NO: 0.4A
    • NC: 0.2A
      • NO: 0.2A
      • Motor load NC: 2.5A
      • NO: 1.3A
      • NC: 1.5A
      • NO: 0.8, 3, 3, 3, 0.05 and 0.03A
      • Contact material: silver alloy
      • Operating speed: 0.1mm to 1000m/seconds
      • Contact resistance: 50mΩ maximum (initial value)
      • Insulation resistance: 100mΩ minute (at 500V DC)
    • Dielectric strength:
      • 1000V, 50/60Hz 1 minute between terminals of the same polarity
      • 1500V, 50/60Hz 1 minute between each terminal and no-current-carrying metal parts
      • 1500V, 50/60Hz 1 minute between current-carrying metal parts and ground
    • Protection grade: PTI IEC IP40/175
    • Protection grade of electric shock: class Ⅰ
    • Ambient temperature and humidity:
      • Ambient operation temperature: -25 to +125℃ with no icing
      • Humidity: 60% maximum
    • Life expectancy:
      • Mechanical: 1,000,000 operations minute
      • Electrical: 100,000 operations minute
    • Certifications: CQC (GB15092.1), UL (UL61058, CSA-C22.2 No. 61058-1) and ENEC (EN61058-1)
