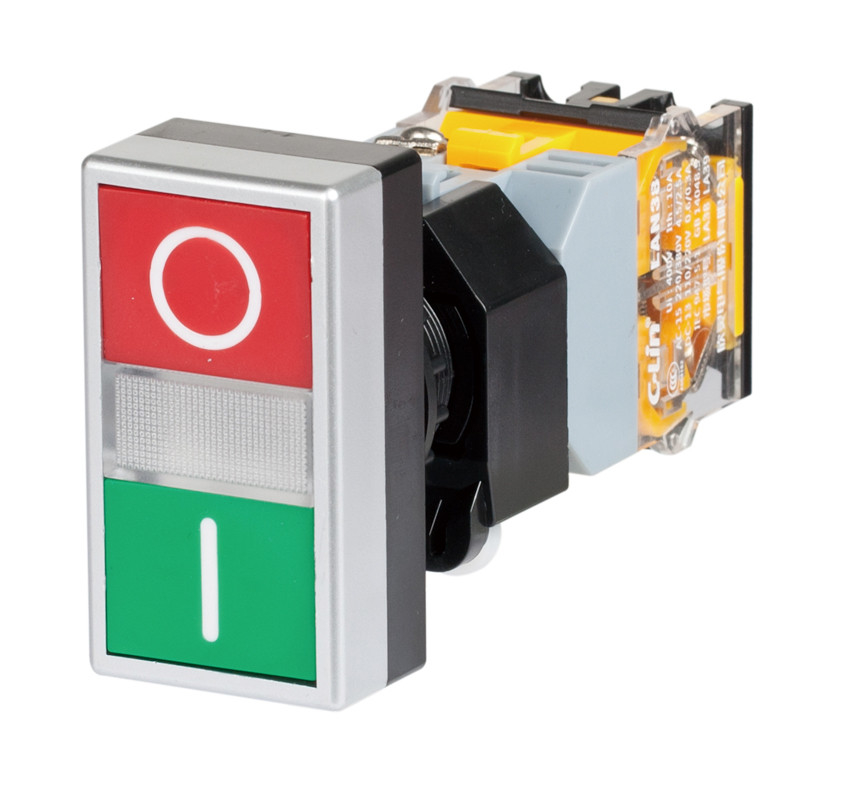

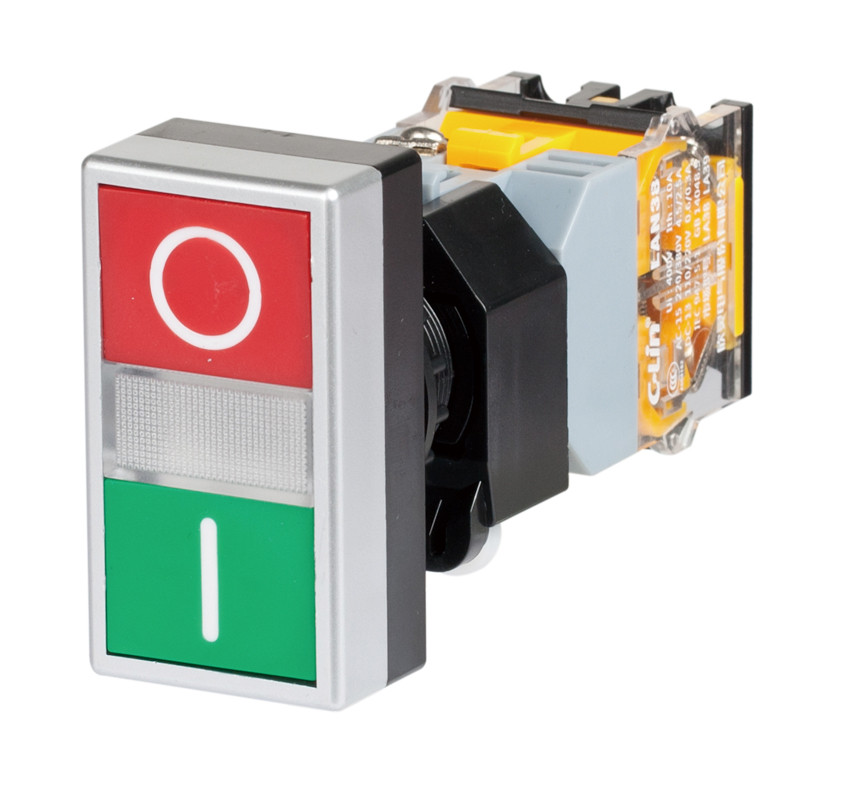

LAN38 Series Push Button Switch

  • LAN38 Series Push Button Switch
Place of Origin China
Brand Name Clin
Certification CE
Model Number LAN38-22D-11R
Minimum Order Quantity 100
Price Get Latest Price
Packaging Details Export packing
Delivery Time 30 days
Payment Terms TT

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description



Model LAN38-22D-11R;   LAN38-22D-20RD
Description LAN38-22D-11R:   Double  pushbutton  switch
LAN38-22D-20RD:   Double  pushbutton  switch  with  pilot  light
Power  frequency  withstand  voltage 2.5kV  1min
Mechanical  life equal  to  or  greater  than  3*106
Electrical  life equal  to  or  greater  than  60*104
Rated  thermal  current lth  10A
Rated  insulation  voltage Ui  AC660V
Contact  capacity AC-15  220V/6A  380V/4A  660V/2A
DC-13  24V/6A  48V/3A  110V/1A  220V/0.5A  440V/0.25A
Mounting  dimension 22.3mm(diameter)
Ambient  temperature minus  25  centigrade  to  55  centigrade
Protection  grade IP65
Contact  resistance Silver  alloy  contact:   less  than  or  equal  to  50mΩ
Colors  available red,   blue,   white,   black
