Clion Push Button LAN38 series with long Mechanical Life for machine tool, boats, spin and electricity industry

500pcs
MOQ
get latest price
Price
Clion Push Button LAN38 series with long Mechanical Life for machine tool, boats, spin and electricity industry
Features Gallery Product Description Request A Quote
Features
Specifications
Contact Resistance: ＜50mΩ(initial Value)

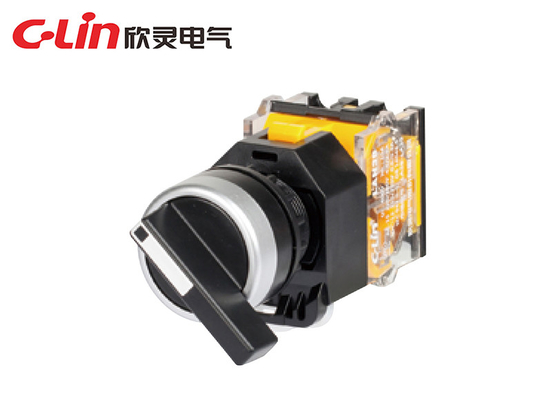

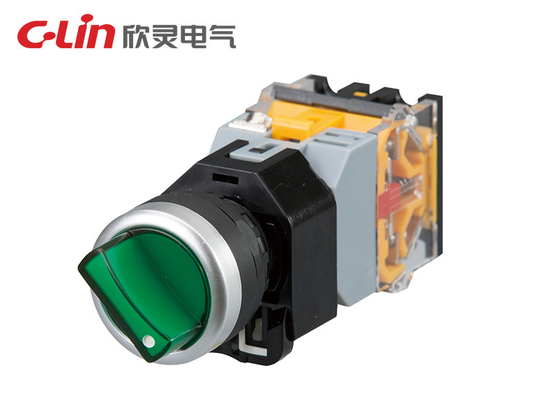

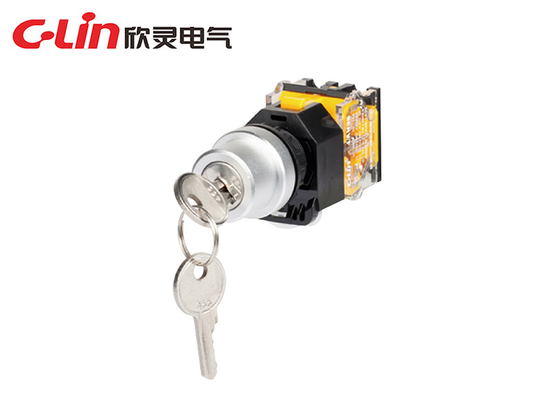

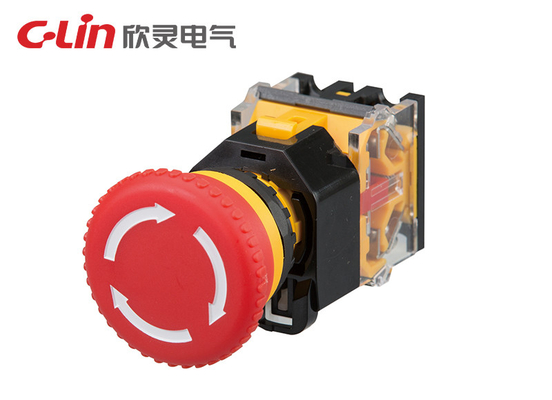

Endurance: Mechanical: 300,000 Operations Min For General Button And Rotation Button/ 50,000 Times A Min For Key Button And Emergency Button; Electrical: 600,000 Operations Min.
Dielectric Strength: AC2500V 50Hz/1min
Operating Ambient: -25℃~+55℃
Protection: IP65
Basic Infomation
Place of Origin: China
Brand Name: Clion
Certification: CCC
Model Number: LAN38
Payment & Shipping Terms
Delivery Time: 7-14 days
Payment Terms: T/T
Supply Ability: 2k pcs 7 days
Product Description

LXW-5 Series Push Button



Features

1. Compact size

2. Long mechanical endurance

3. Protective cover is available

4. Customized avaiable



Specifications

Load Capacity

AC-15  220V/A  380V/4A  660V/2A

DC-13  24V/6A  48V/3A  110V/1A  220V/0.5A  440V/0.25A

Contact Resistance

(initial value)
50mΩ max
Dielectric Strength
AC2500V, 60Hz for 1min
Ith 10A
Insulation Voltage AC660V
Operating Ambient
Temperature: -25°C ~55°C(with no icing or condensation)
Endurance

Mechanical: 300,000 operations min for general button and rotation button/ 50,000 times a min for key button and emergency button;

Electrical: 600,000 operations min.
Degree of Protection IP65





Dimension

Clion Push Button LAN38 series with long Mechanical Life for machine tool, boats, spin and electricity industry 0



Clion Push Button LAN38 series with long Mechanical Life for machine tool, boats, spin and electricity industry 1Clion Push Button LAN38 series with long Mechanical Life for machine tool, boats, spin and electricity industry 2Clion Push Button LAN38 series with long Mechanical Life for machine tool, boats, spin and electricity industry 3
