CHJ Series Inductive Proximity Switch/Sensor Switch for Stable Performance and Powerful Functionality
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item No. | CHJ | Shock Durability | 500 M/S² (Approximately 50 G) |
|---|---|---|---|
| Specification | φ8 | Distance Detection | 1.5mm |
| Protection Level | IP67 | Operating Environment | -25ºC To +70ºC (Non-Freezing) |
Product Description

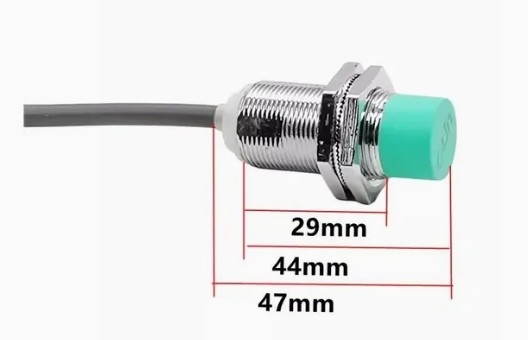

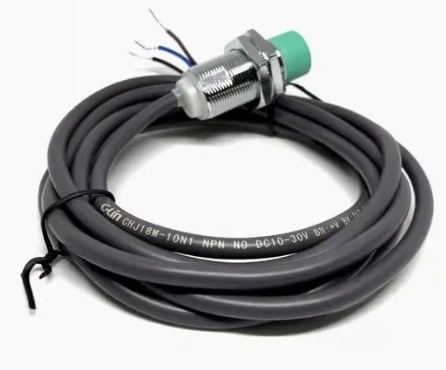

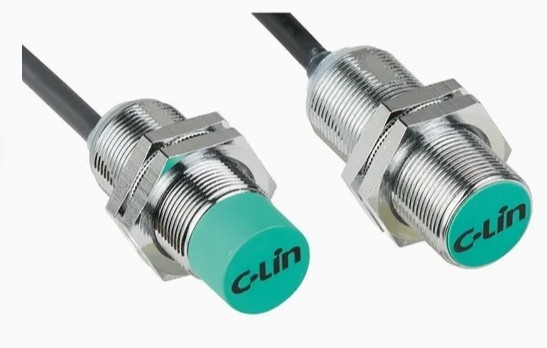

CHJ Series Inductive Proximity Switch/Sensor Switch
Features
1. Stable Performance: Internal electronic components adopt SMT patch technology, ensuring stable and reliable performance.
2. Powerful Functionality: Polarization protection prevents reverse connection.
3. Safety: Utilizes ferrite magnetic cores, ensuring long-term use without magnetic decay.
Ordering Information
| Output Formats | Embedded | Non-Embedded | ||
DC10-30V Three - Wires |
NPN | Normal Open | CHJ8-1.5N1 | CHJ8M-2N1 |
| Normal Close | CHJ8-1.5N2 | CHJ8M-2N2 | ||
| PNP | Normal Open | CHJ8-1.5P1 | CHJ8M-2P1 | |
| Normal Close | CHJ8-1.5P2 | CHJ8M-2P2 | ||
| DC10-30V Two - Wires |
Normal Open | CHJ8-1.5D1 | CHJ8M-2D1 | |
| Normal Close | CHJ8-1.5D2 | CHJ8M-2D2 | ||
| Distance detection | 1.5mm±10% | 2mm±10% | ||

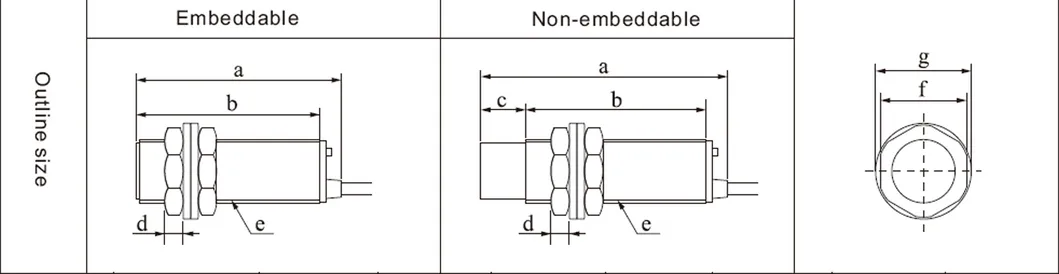

Dimensions
 |
||||||||
| Mode | Models | a | b | c | d | e | f | g |
| Embeddable | CHJ8 | 41.5±0.5 | 40±0.5 | / | 3.5 | M8x1 | 12 | 15 |
| Non-embeddable | CHJ8M | 46.5±0.5 | 4.5 | |||||
| Embeddable | CHJ12 | 41±0.5 | 35±0.5 | / | 4 | M12x1 | 17 | 21 |
| Non-embeddable | CHJ12M | 41±0.5 | 30±0.5 | 5 | ||||
| Embeddable | CHJ18 | 46±0.5 | 40±0.5 | / | 4 | M18x1 | 24 | 30 |
| Non-embeddable | CHJ18M | 46±0.5 | 30±0.5 | 10 | ||||
| Embeddable | CHJ30 | 46±0.5 | 40±0.5 | / | 34.7 | M30x1.5 | 36.2 | / |
| Non-embeddable | CHJ30M | 52±0.5 | 30±0.5 | 16 | ||||
