Name: Clion Power Relay Module NHN-RF with electromagnetic relay NNC67E T90 for automation machine
Brand: CLION ELECTRIC CO.,LTD
SKU: NHN-RF
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Theory: Relay Module

Input: NPN/PNP

Rated Voltage: 12VDC/24VDC/002VAC

Rated Current: 30A/40A

Mechanical Life: 1*10^7

Electrical Life: 1*10^5

Input Terminal: Lifting Terminal

Output Terminal: Fence Terminal

Basic Infomation

Place of Origin: China

Brand Name: NNC

Model Number: NHN-RF

Payment & Shipping Terms

Delivery Time: 7-14 days

Payment Terms: T/T

Supply Ability: 2k pcs 7 days

Gallery

Clion Power Relay Module NHN-RF with electromagnetic relay NNC67E T90 for automation machine

Product Description

HNH-RF Series Relay Module

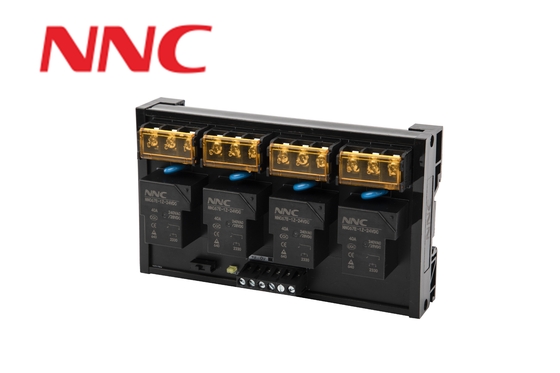

Clion Power Relay Module NHN-RF with electromagnetic relay NNC67E T90 for automation machine 0

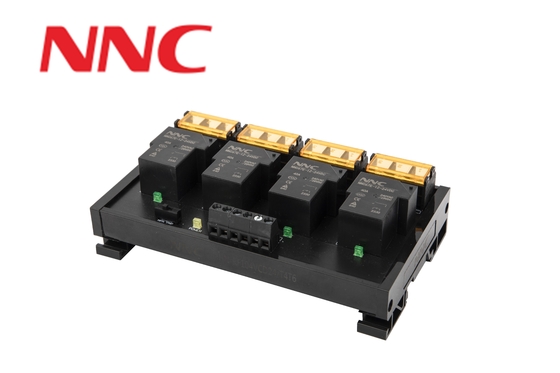

Clion Power Relay Module NHN-RF with electromagnetic relay NNC67E T90 for automation machine 2

Specification

INPUT COIL PARAMETERS
Driving mode	NPN/PNP
Rated voltage	12VDC/24VDC/220VAC
ingle power consumption	DC:0.93W
Action voltage	x80% Rated voltage
Release voltage	x10% Rated voltage
Action time	≤10ms
Release tine	≤15ms

OUTPUT CONTACT PARAMETERS
Max switching voltage	250VAC/30VDC
Contact material	Silver Alloy
Contact resistance	≤ 100mΩ(6VDC 1A)
Protection circuit	RC
Mechanical life	1x10^7
Electrical life	1x10^5

CONNECTOR
Strip length	6mm
Torque	0.4Nm/(3.54Lb-in)
Input terminal type	Lifting Terminal
Output terminal type	Fence Terminal
Input wire diameter	2.5-4.0mm/AWG10-6
Output wire diameter	2.5-4.0mm/AWG10-6

WORKING TEMPERATURE	-10~55°C
STORAGE TEMPERATURE	-40~70°C

Diagram(mm)

Clion Power Relay Module NHN-RF with electromagnetic relay NNC67E T90 for automation machine 3

Clion Power Relay Module NHN-RF with electromagnetic relay NNC67E T90 for automation machine 4

Clion Power Relay Module NHN-RF with electromagnetic relay NNC67E T90 for automation machine 5

Certificate

Clion Power Relay Module NHN-RF with electromagnetic relay NNC67E T90 for automation machine 6

Shipment & Packaging

Clion Power Relay Module NHN-RF with electromagnetic relay NNC67E T90 for automation machine 7

FAQ

Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.

Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.

Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)

Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.

Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.

Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.

Q7: What is your warranty time of the products?
A7: 12-24 months
