Name: NNC Industrial Relay module power NHN-RD series with NNC68B MY relay for welding Machine
Brand: CLION ELECTRIC CO.,LTD
SKU: NHN-RD1/2/3/4/5/6/7/8
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Theory: Relay Module

Input: NPN/PNP

Rated Voltage: 12VDC/24VDC/AC220V

Rated Current: 6.5A(NHN68B), 10A(NHN68AVL), 12A(NHN68AVL), 5A240VAC 28VDC(NHN68B, NHN68BVL)

Mechanical Life: 10^7 Operations

Electrical Life: 10^5 Operations

Input Terminal: Lifting Terminal/Shrapnel Terminal

Output Terminal: Lifting Terminal/Shrapnel Terminal

Basic Infomation

Place of Origin: China

Brand Name: NNC

Model Number: NHN-RD1/2/3/4/5/6/7/8

Payment & Shipping Terms

Delivery Time: 7-14 days

Payment Terms: T/T

Supply Ability: 2k pcs 7 days

Gallery

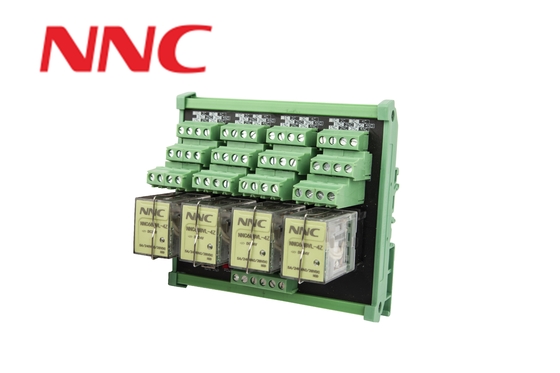

NNC Industrial Relay module power NHN-RD series with NNC68B MY relay for welding Machine

Product Description

HNH-RD Series Relay Module

NNC Industrial Relay module power NHN-RD series with NNC68B MY relay for welding Machine 0

NNC Industrial Relay module power NHN-RD series with NNC68B MY relay for welding Machine 2

Specification

INPUT COIL PARAMETERS
Rated voltage	12VDC/24VDC/220VAC
Nominal current±10%(mA)	75/37.5/5.4
Coil resistance±10%(Ω)	160/640/14259
Coil power consumption	DC:0.9W AC:1.2VA
Action voltage	x75% Rated voltage
Release voltage	x10% Rated voltage
Action time	≤20ms
Release tine	≤15ms(DC),≤25ms(AC)


OUTPUT CONTACT PARAMETERS
Contact material	Silver Alloy
Contact resistance	≤ 100mΩ(6VDC 1A)
Max switching voltage	250VAC/28VDC
Mechanical Life	10^7(300 times/min)
Electrical Life	10^5(1s on, 1s off)

CONNECTOR
Input terminal type	Lifting terminal/Shrapnel terminal
Output terminal type	Lifting terminal/Shrapnel terminal

WORKING TEMPERATURE	-10~55°C
STORAGE TEMPERATURE	-40~70°C

Diagram(mm)
NNC Industrial Relay module power NHN-RD series with NNC68B MY relay for welding Machine 3

NNC Industrial Relay module power NHN-RD series with NNC68B MY relay for welding Machine 4

NNC Industrial Relay module power NHN-RD series with NNC68B MY relay for welding Machine 5

Certificate

NNC Industrial Relay module power NHN-RD series with NNC68B MY relay for welding Machine 6

Shipment & Packaging

NNC Industrial Relay module power NHN-RD series with NNC68B MY relay for welding Machine 7

FAQ

Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.

Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.

Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)

Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.

Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.

Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.

Q7: What is your warranty time of the products?
A7: 12-24 months
