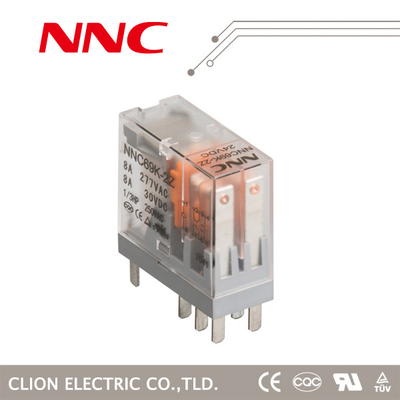

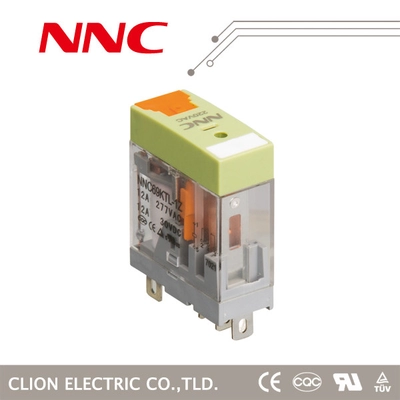

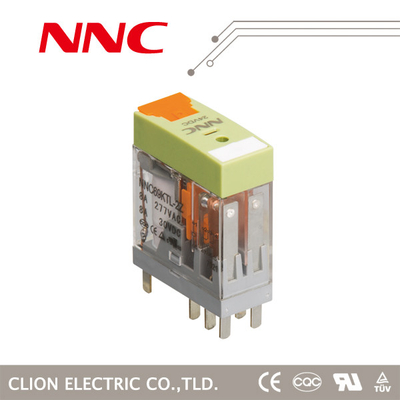

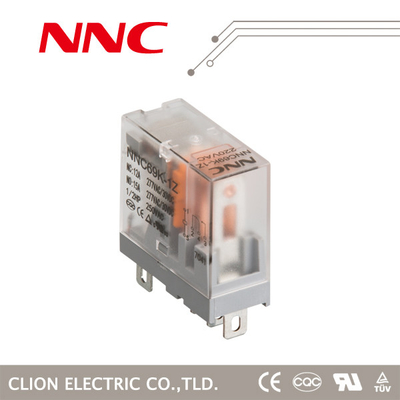

NNC miniature electric Relay NNC69KTL -1Z 2Z JQX-14FT 10A DC 3V-24v voltage 5pins 8 pins socket mounting relay
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Contact Form | 1Z 2Z | Contact Rating | 12A For 1 Pole; 8A For 2 Poles |
|---|---|---|---|
| Contact Material | Ag Alloy | Max.switching Current | 15A For 1 Pole; 12A For 2 Poles |
| Max.switching Voltage | 277VAC/28VDC | Mechanical Life | 1×10^7 Operations Min. |
| Electrical Life | 1×10^5 Operations Min. |
Product Description
NNC69KTL Series Industrial Control Relay
Specification
| Part NO. | NNC69KTL(JQX-14FTL) | ||||
| Dimension | 28.8*12.7*34 | ||||
| Contact Feature | Form | 1A,1B,1C | 2A,2B,2C | ||
| Rated load | NC 12A/240VAC 28VDC | NO 15A/240VAC 28VDC | 8A/240VAC 28VDC | ||
| Contact resistance | ≤100mΩ | ||||
| Material | Silver Alloy | ||||
| Electrical life | ≥1*105 | ||||
| Mechanical life | ≥1*107 | ||||
| Operate voltage (23℃) | DC:≤75%*Rated voltage | ||||
| AC:≤80%*Rated voltage | |||||
| Release voltage (23℃) | DC:≥10%*Rated voltage | ||||
| AC:≥30%*Rated voltage | |||||
| Maximum voltage (23℃) | 110%*Rated voltage | ||||
| Normal coil voltage | DC | 3-110V | |||
| AC | 6-220V | ||||
| Normal coil power | DC | 0.53W | |||
| AC | 1.0VA | ||||
| Pick-up time | ≤20ms | ||||
| Release time | ≤10ms | ||||
| Dielectric strength | Between Same-pole contacts | 1000VAC/1min(leakage current 1mA) | |||
| Between Opposite-pole contacts | |||||
| Between contacts and coil | 5000VAC/1min(leakage current 1mA) | ||||
| Insulation resistance | ≥100mΩ(500VDC) | ||||
| Ambient temperature | -55℃ ~70℃ | ||||
| Ambient humidity | 35%-80%RH | ||||
| Atmospheric pressure | 86-106KPa | ||||
| Shock resistance | 10G (sinusoidal half-wave pulse: 11ms) | ||||
| Vibration resistance | 10-55Hz (double amplitude: 1.5mm) | ||||
| Installation | PCB,Socket | ||||
Wiring Diagram
