HHJ1-E Counter

China HHJ1-E Counter supplier

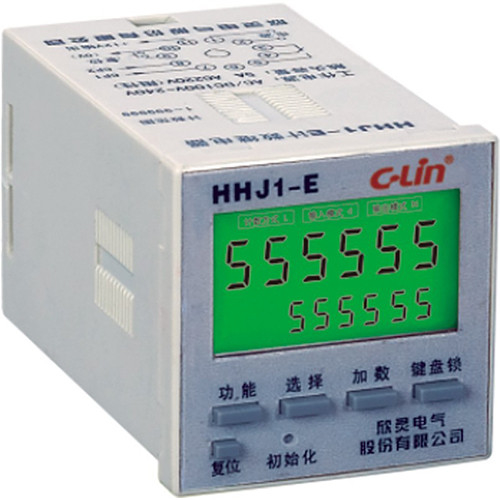

Large Image :  HHJ1-E Counter

Product Details:

Place of Origin: China
Brand Name: Clin
Certification: CCC,CQC
Model Number: HHJ1-E Counter

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Get Latest Price
Packaging Details: Export packing
Delivery Time: 30 days
Payment Terms: TT
Contact Now
Detailed Product Description

HHJ1-E series Counter

Rated Supply Voltage:AC/DC 100-240V 50/60Hz / 24 VAC (50/60 Hz)/12 to 24 VDC (ripple 20% max.)
Operating Voltage Range :85% to 110% of rated supply voltage
Input Modes:Increment, Decrement, Command (UP/DOWN A), Individual (UP/DOWN B), Quadrature (UP/DOWN C)
Counting Speed:High frequency 1000times/s, Low frequency 30times/s
Digits :1~999999
Input Signals:Contact and PNP/NPN transistor output
Output Modes:N, C, F, R
External Power Supply:DC12V 30mA(Max.)
Memory Protection:10 years
Mechanical Life :1000000 operations min.
Electrical Life :100000 operations min. (5 A at 250 VAC/30 VDC, resistive load)
Contact Form :1NO+1NC
Rated Load of the Contact:5A AC220V(Resistive)
Installation:Flush mounting and 35mm DIN rail
