Miniature Circuit Breaker

1000

MOQ

Get Latest Price

Price

Miniature Circuit Breaker

Features Gallery Product Description Request A Quote

Features

Specifications

Basic Infomation

Place of Origin: China

Brand Name: Clin

Certification: CE

Model Number: XLDM7LE-100 Mini Circuit Breaker

Payment & Shipping Terms

Packaging Details: Export packing

Delivery Time: 15 days

Payment Terms: TT

Gallery

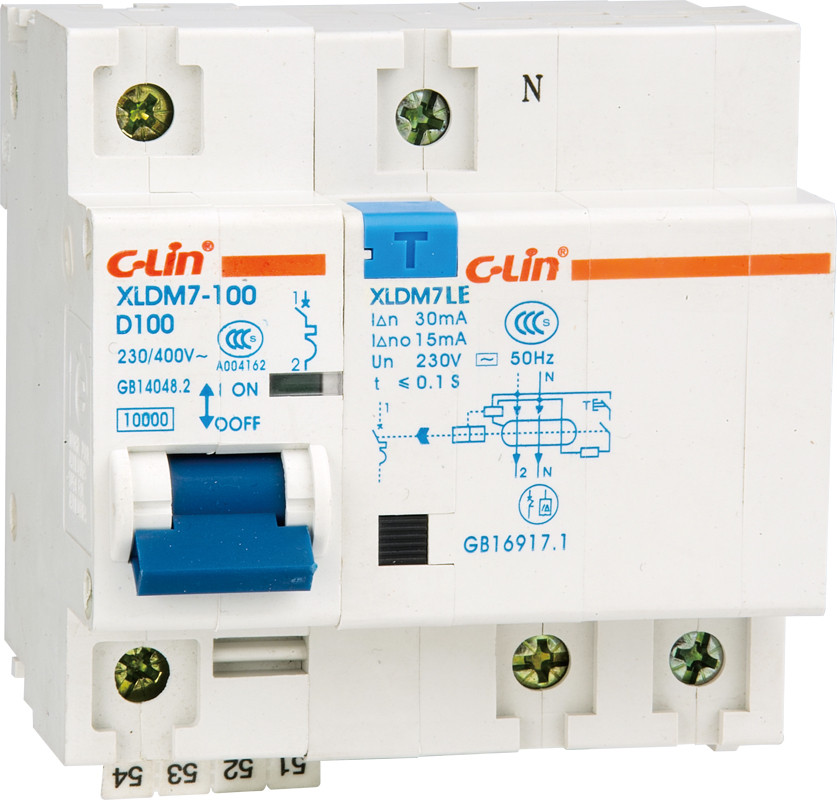

Miniature Circuit Breaker

Product Description

Applications:
- XLDM7LE-100(NCLE, DZ47LE-100) series MCB (miniature circuit breaker) is mainly suitable for avoiding overload and short circuit
- Especially used in illumination and distribution system of industry and commerce
- Appearance is small and exquisite, its capability is favorable and credible
- Has high breaking capacity
- Shell and parts are made of fire resistance and shock resistance plastics
- Has a long life
- Mainly used for avoiding overload and short circuit of AC 50/60Hz voltage of single pole 230V and two, three or four poles 400V circuit
- Can also be used for infrequent switch (turn on and off the electrical equipment) apparatus and illumination circuit under normal condition
- This product comply with GB10963.1 standards
Specifications:
- Case grade rated current Inm: 100A
- Number of poles: 1, 2, 3 and 4
- Rated current In: 63, 80 and 100A
- Rated conditional short circuit current
- Voltage breaking capacity Icn Cos(Φ 230V/10,000/0.5)
- Rated leakage motion current I△n: 30mA
- Rated leakage non-motion current I△no: 15mA
- Rated leakage motion time:＜0.1s
- Instantaneous release types: C and D
