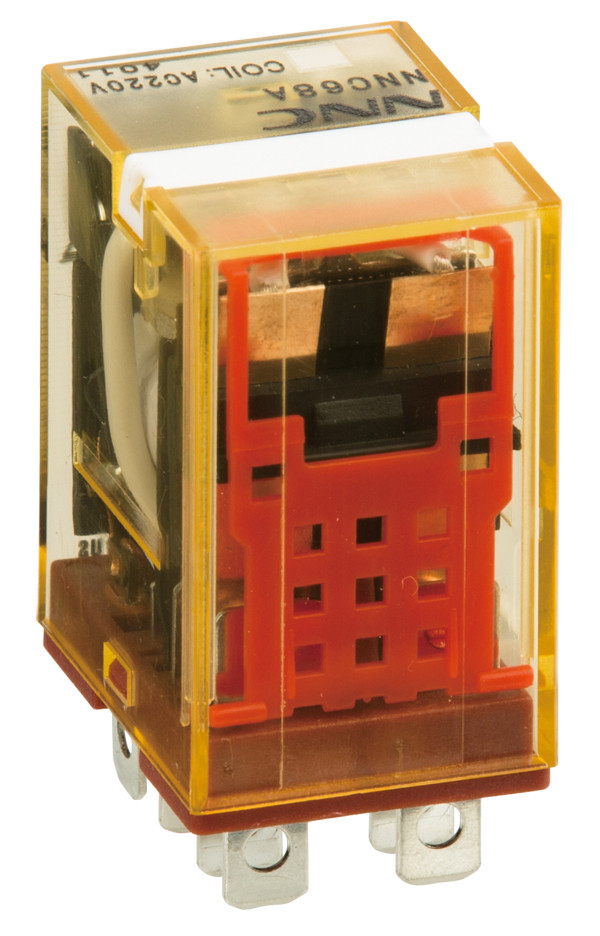

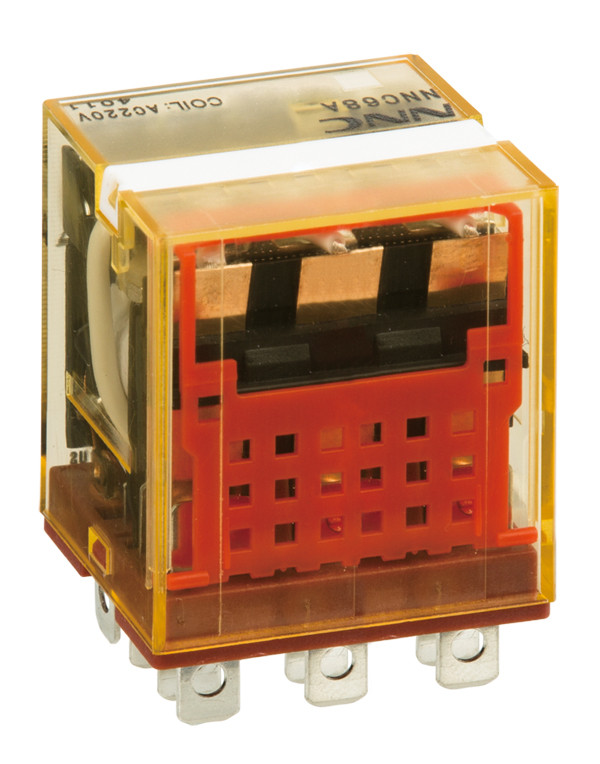

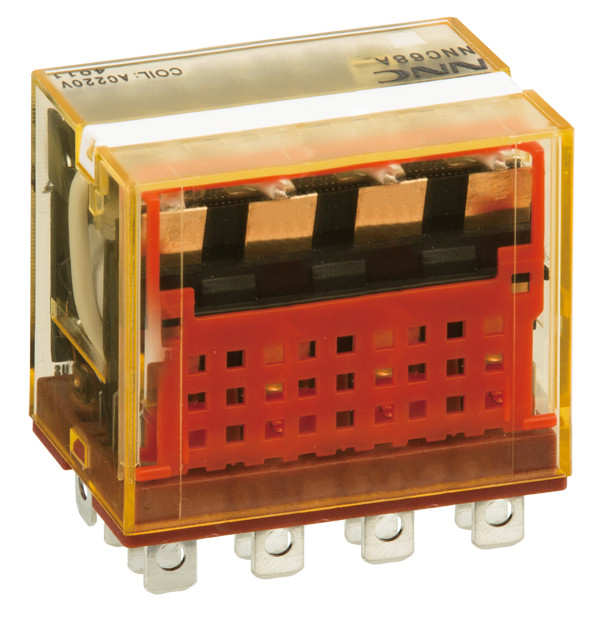

general purpose relay NNC68A(JQX-13F)

  • general purpose relay NNC68A(JQX-13F)
  • general purpose relay NNC68A(JQX-13F)
  • general purpose relay NNC68A(JQX-13F)
Place of Origin China
Brand Name NNC
Certification CE, CQC,UL
Model Number NNC68A
Minimum Order Quantity 5000
Price Get Latest Price
Packaging Details Export packing
Delivery Time 15 days
Payment Terms TT
Supply Ability 500,000 pieces

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Theory Electromagnetic Relay Usage General Purpose
Size Miniature Protect Feature Epoxy
Contact Load High Power
Leave a Message
Product Description
  • Dimensions: 27.3x21x35mm
  • Contact contact form: 2A, 2B, 2C, 3A,3B,3C,4A, 4B and 4C
  • Contact rated load: 5/3A and 240V AC/28V DC
  • Contact materials: silver/alloy
  • Contact electrical life: ≥105 time
  • Pick-up voltage (23°C) DC: ≤75% x rated voltage
  • Pick-up voltage (23°C) AC: ≤80% x rated voltage
  • Release voltage (23°C) DC: ≥10% x rated voltage
  • Release voltage (23°C) AC: ≥30% x rated voltage
  • Coil voltage DC: 6-220V
  • Coil voltage AC: 6-380V
  • Coil power:
    • DC: 0.9W
    • AC: 1.2VA
  • Operate/release time: ≤15ms/≤10ms
