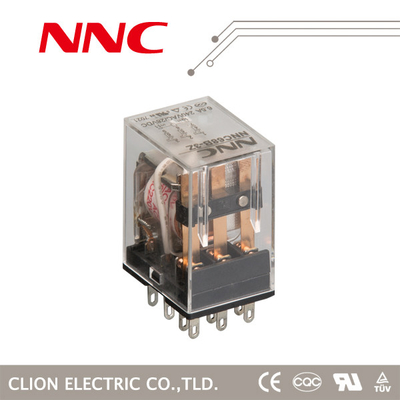

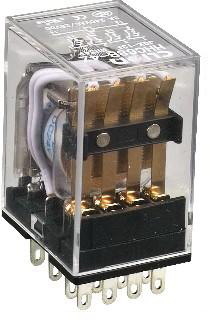

HHC68B(HH52P,HH53P,HH54P)

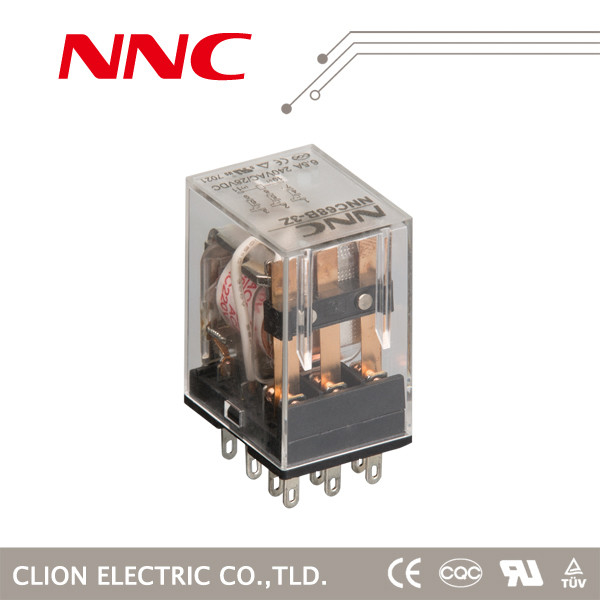

Large Image : HHC68B(HH52P,HH53P,HH54P)

Product Details:

Place of Origin:	China
Brand Name:	clion
Certification:	CE
Model Number:	HHC68B(HH52P,HH53P,HH54P)

Contact Now

Detailed Product Description

High Light:	general purpose relay , electromagnetic relay

High Light:

general purpose relay

electromagnetic relay

Part NO.			HHC68B(HH52P,HH53P,HH54P)
Dimension			*272135*
Contact Feature	Form		2A,2B,2C	3A,3B,3C	4A,4B,4C
	Rated load		5A/240VAC 28VDC		3A/240VAC 28VDC
	Contact resistance		≤100mΩ
	Material		Silver Alloy
	Electrical life		*≥110⁵**
	Mechanical life		*≥110⁷**
Operate voltage (23℃)			*DC:≤75%Rated voltage**
			*AC:≤80%Rated voltage**
Release voltage (23℃)			*DC:≥10%Rated voltage**
			*AC:≥30%Rated voltage**
Maximum voltage (23℃)			*110%Rated voltage**
Normal coil voltage		DC	3-220V
		AC	3-380V
Normal coil power		DC	0.9W
		AC	1.2VA
Pick-up time			≤15ms
Release time			≤10ms
Dielectric strength	Between Same-pole contacts		1000VAC/1min(leakage current 1mA)
	Between Opposite-pole contacts		1000VAC/1min(leakage current 1mA)
	Between contacts and coil		1500VAC/1min(leakage current 1mA)
Insulation resistance			≥100mΩ(500VDC)
Ambient temperature			-25℃ ～55℃
Ambient humidity			45%-75%RH
Atmospheric pressure			86-106KPa
Shock resistance			10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance			10-55Hz (double amplitude: 1.0mm)
Installation			PCB,SOCKET
Packing	Inner box		Paper box(pcs)	20
			Foam box(pcs)	50
	Outer box		Paper box(pcs)	600
			Foam box(pcs)	500
	Dimension of the carton		600PCS CTN	*330310345MM*
			500PCS CTN	*440310345MM*
	Weight		1PC	Approximate 35g
			600PCS CTN	G.W:22KG N.W:21KG
			500PCS CTN	G.W:19KG N.W:18KG
