Electromagnetic relay HHC68D

China Electromagnetic relay HHC68D supplier
Electromagnetic relay HHC68D supplier Electromagnetic relay HHC68D supplier

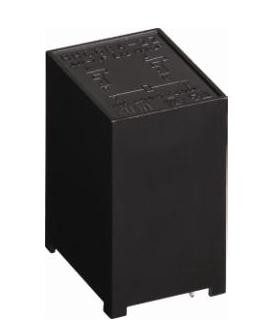

Large Image :  Electromagnetic relay HHC68D

Product Details:

Place of Origin: China
Brand Name: clion
Certification: CE, CQC,UL
Model Number: HHC68D

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Get Latest Price
Packaging Details: Export packing
Payment Terms: TT
Port: SHANGHAI&NINGBO
Contact Now
Detailed Product Description
Theory: Electromagnetic Relay Usage: General Purpose
Size: Miniature Protect Feature: Sealed
Contact Load: High Power



Specifications

1.UL/C-UL approved
2.Matching sockets available,
3.PCB version available,
4.LED/Diode/Hand switch

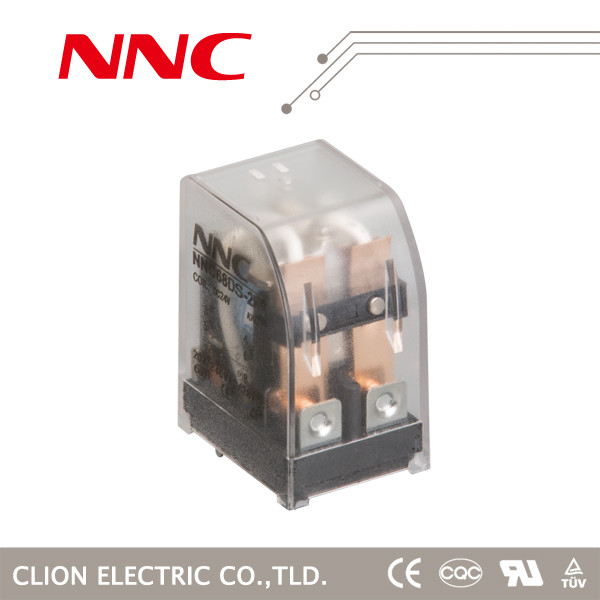

General Purpose Power Relay HHC68D



Dimension (mm): 27.8X21.7X37.5

Contact arrangement: 2A/2B/2C

Contact capacity: 15A 220VAC/28VDC

Nominal voltage: 6~220VDC, 6~380VAC

Operate/Release time: ≤25ms/25ms

Coil power: 0.9W, 1.2VA

Contact resistance: ≤50mΩ (1A 24VDC)

Insulation resistance: 100MΩ 500VDC

Dielectric strength (1mA)

Between contacts: 1500VAC

Between coil & contact: 1000VAC
