industrail control relay NNC68BZL, NNC68BVL, 2pole 4pole with led with test button socket type relay MY4NJ

1000
MOQ
Get Latest Price
Price
industrail control relay NNC68BZL, NNC68BVL, 2pole 4pole with led with test button socket type relay MY4NJ
Features Gallery Product Description Request A Quote
Features
Specifications
Color: White
Certification: CE, UL TUV
Contact Material: Sillver Alloy
Current: 5A
Basic Infomation
Place of Origin: China
Brand Name: NNC
Certification: CE, CQC,UL
Model Number: NNC68BZ(54PZ)
Payment & Shipping Terms
Packaging Details: Export packing
Delivery Time: 15-30 days
Payment Terms: TT
Supply Ability: 500000 pieces per month
Product Description

https://clion.en.alibaba.com/product/60593049435-804152237/NNC_electromagnetic_relay_HHC68BZ_HH52PZ_54PZ_general_purpose_relay.html?spm=a2700.8304367.0.0.KselJy





Detailed Images

PRODUCT DETAIL

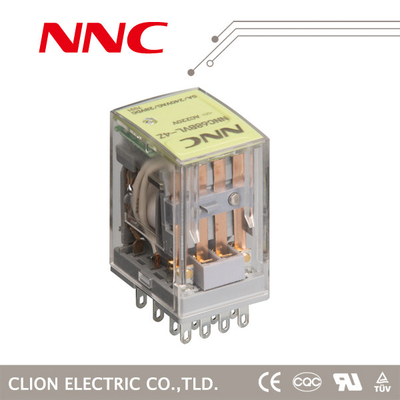

industrail control relay NNC68BZL, NNC68BVL, 2pole 4pole with led with test button socket type relay MY4NJ 0

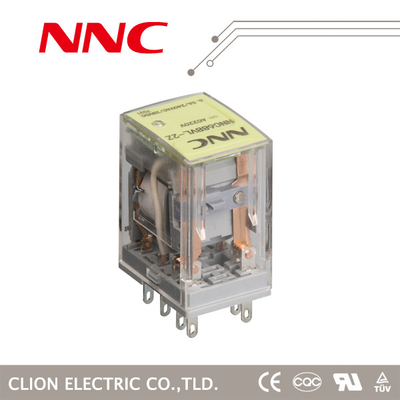

industrail control relay NNC68BZL, NNC68BVL, 2pole 4pole with led with test button socket type relay MY4NJ 1

Related Products

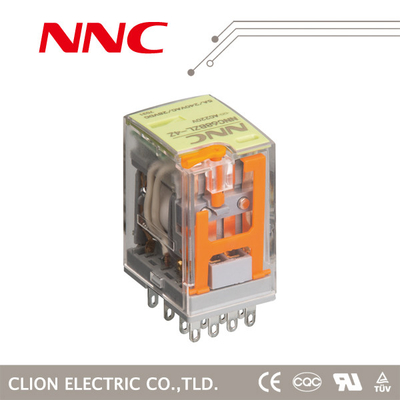

industrail control relay NNC68BZL, NNC68BVL, 2pole 4pole with led with test button socket type relay MY4NJ 2



Product Description

 Model Description

industrail control relay NNC68BZL, NNC68BVL, 2pole 4pole with led with test button socket type relay MY4NJ 3



Specification

Part NO. NNC68BVL(HH52P, HH54P)
Dimension 27.3*21*36.2
Contact Feature Form 2A,2B,2C   4A,4B,4C
Rated load

6.5A/240VAC 28VDC

10A/240VAC 28VDC

 5A/240VAC 28VDC
Contact resistance ≤100mΩ
Material Silver Alloy
Electrical life
≥1*105
Mechanical life
≥1*107
Operate voltage (23℃) DC:≤75%*Rated voltage
AC:≤80%*Rated voltage
Release voltage (23℃) DC:≥10%*Rated voltage
AC:≥30%*Rated voltage
Maximum voltage (23℃) 110%*Rated voltage
Normal coil voltage DC 3-220V
AC 3-380V
Normal coil power DC 0.9W
AC 1.2VA
Pick-up time ≤15ms
Release time ≤10ms
Dielectric strength Between Same-pole contacts 1000VAC/1min(leakage current 1mA)
Between Opposite-pole contacts 1000VAC/1min(leakage current 1mA)
Between contacts and coil 1500VAC/1min(leakage current 1mA)
Insulation resistance ≥100mΩ(500VDC)
Ambient temperature -25℃ ~55℃
Ambient humidity 45%-75%RH
Atmospheric pressure 86-106KPa
Shock resistance 10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance 10-55Hz (double amplitude: 1.0mm)
Installation PCB,SOCKET
Packing Inner box Paper box(pcs) 20
Foam box(pcs) 50
Outer box Paper box(pcs) 600
Foam box(pcs) 500
Dimension of the carton 600PCS CTN 330*310*345MM
500PCS CTN 440*310*345MM
Weight 1PC Approximate 35g
600PCS CTN G.W:22KG N.W:21KG
500PCS CTN G.W:19KG N.W:18KG


Wiring Diagram

 industrail control relay NNC68BZL, NNC68BVL, 2pole 4pole with led with test button socket type relay MY4NJ 4

Packaging & Shipping

industrail control relay NNC68BZL, NNC68BVL, 2pole 4pole with led with test button socket type relay MY4NJ 5

Shipping

industrail control relay NNC68BZL, NNC68BVL, 2pole 4pole with led with test button socket type relay MY4NJ 6




Company Information

 industrail control relay NNC68BZL, NNC68BVL, 2pole 4pole with led with test button socket type relay MY4NJ 7



OUR PRODUCTS

industrail control relay NNC68BZL, NNC68BVL, 2pole 4pole with led with test button socket type relay MY4NJ 8

CERTIFICATION

industrail control relay NNC68BZL, NNC68BVL, 2pole 4pole with led with test button socket type relay MY4NJ 9



PRPDUCTION EQUIPMENT

industrail control relay NNC68BZL, NNC68BVL, 2pole 4pole with led with test button socket type relay MY4NJ 10

SHOW ROOM

industrail control relay NNC68BZL, NNC68BVL, 2pole 4pole with led with test button socket type relay MY4NJ 11

Exhibition

 industrail control relay NNC68BZL, NNC68BVL, 2pole 4pole with led with test button socket type relay MY4NJ 12



OUR TEAM

industrail control relay NNC68BZL, NNC68BVL, 2pole 4pole with led with test button socket type relay MY4NJ 13

FAQ

 1.How do you control the quality?

100% Auto inspection machine and manul testing together before packing.

2.What's your payment terms?

We usual accept 30% T/T payment in advance, and the balance payment before shipment,

Samples cost can be paid by west union ,because it's fast and convient.

3.Would you accept to USE our LOGO?

If you have good quality,we can make OEM and ODM,custiomized specification.

4.Can I get a sample for reference?

we are gald to send samples for your testing, but you need to pay the express cost.

5.What is your delivery time?

Usually, 1-3days for samples, 10-20 days for bulk goods.

6.What is your warranty time of the products?

One year from the shipment date,we will offer replacement if you receive the defective or wrong items.
