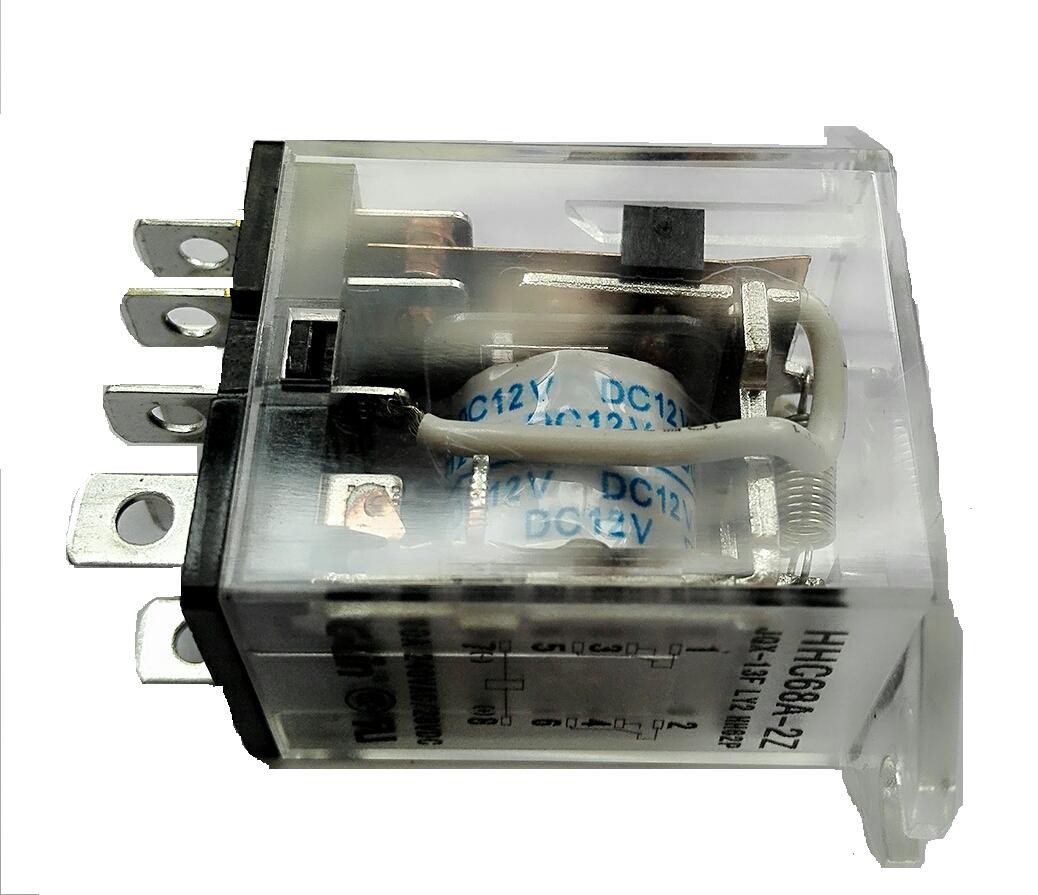

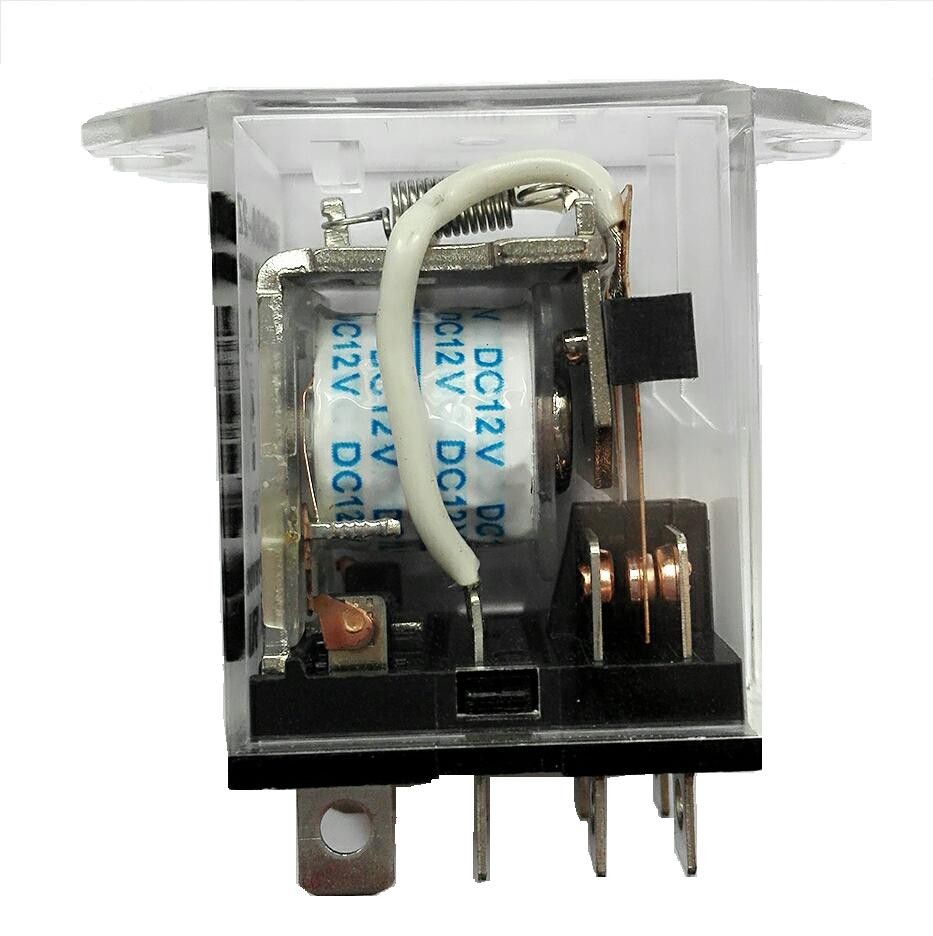

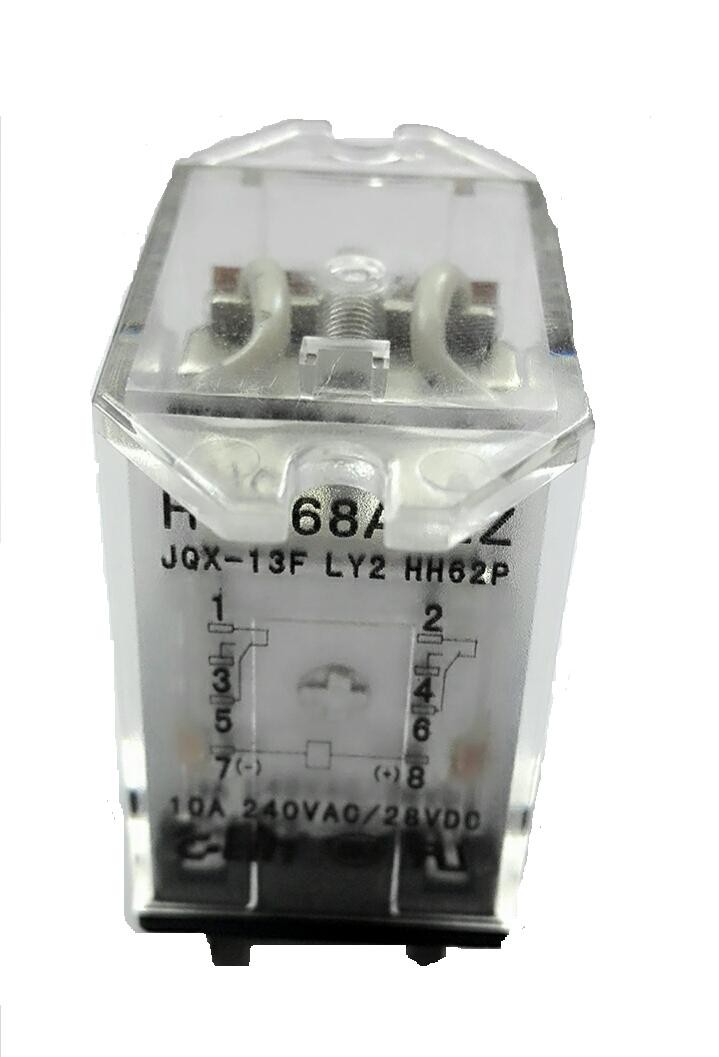

HHC68A(JQX-13F) Flange type

Place of Origin China
Brand Name clion
Certification CE, CQC,UL
Model Number HHC68A(JQX-13F)
Minimum Order Quantity 2000
Price Get Latest Price
Packaging Details Export packing
Delivery Time 30 days
Payment Terms TT

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Leave a Message
Product Description



Part NO.
HHC68A(JQX-13F)
Dimension
28*21*36
28*21*36
28*31*36
28*41*36
Contact Feature
Form
1A,1B,1C
2A,2B,2C
3A,3B,3C
4A,4B,4C
Rated load
15A/240VAC 28VDC
10A/240VAC 28VDC
Contact resistance
≤100mΩ
Material
Silver Alloy
Electrical life
≥1*105
Mechanical life
≥1*107
Operate voltage (23℃)
DC:≤75%*Rated voltage
AC:≤80%*Rated voltage
Release voltage (23℃)
DC:≥10%*Rated voltage
AC:≥30%*Rated voltage
Maximum voltage (23℃)
110%*Rated voltage
Normal coil voltage
DC
6-220V
AC
6-380V
Normal coil power
DC
0.9W
0.9W
1.4W
1.5W
AC
1.2VA
1.2VA
2.0VA
2.5VA
Pick-up time
≤20ms
Release time
≤20ms
Dielectric strength
Between Same-pole contacts
1000VAC/1min(leakage current 1mA)
Between Opposite-pole contacts
1500VAC/1min(leakage current 1mA)
Between contacts and coil
1500VAC/1min(leakage current 1mA)
Insulation resistance
≥100mΩ(500VDC)
Ambient temperature
-25℃ ~55℃
Ambient humidity
45%-75%RH
Atmospheric pressure
86-106KPa
Shock resistance
10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance
10-55Hz (double amplitude: 1.0mm)
Installation
PCB,SOCKET,SCREW
