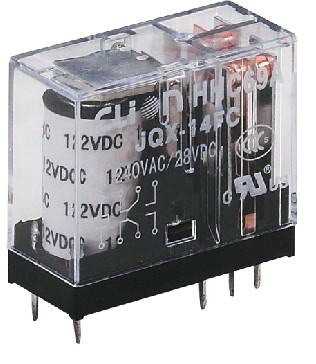

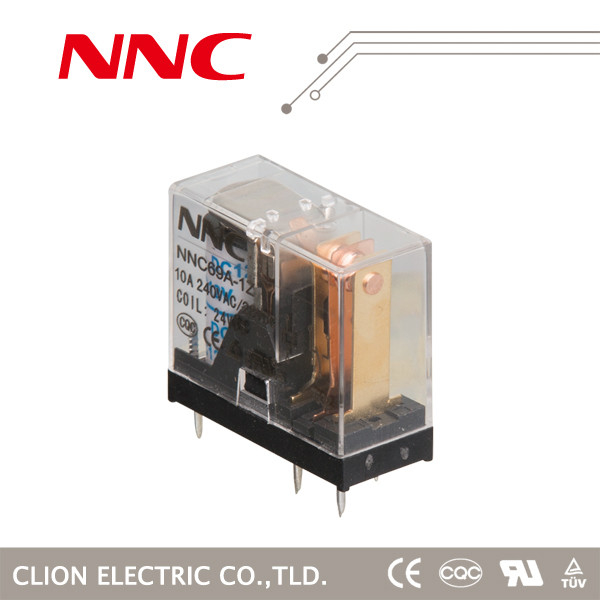

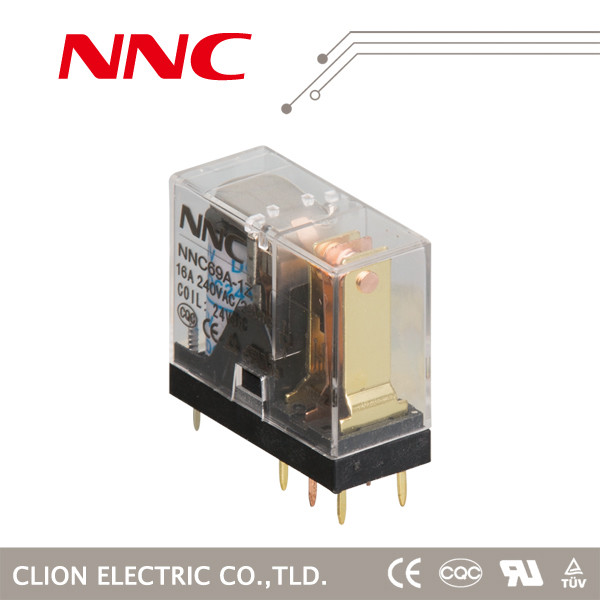

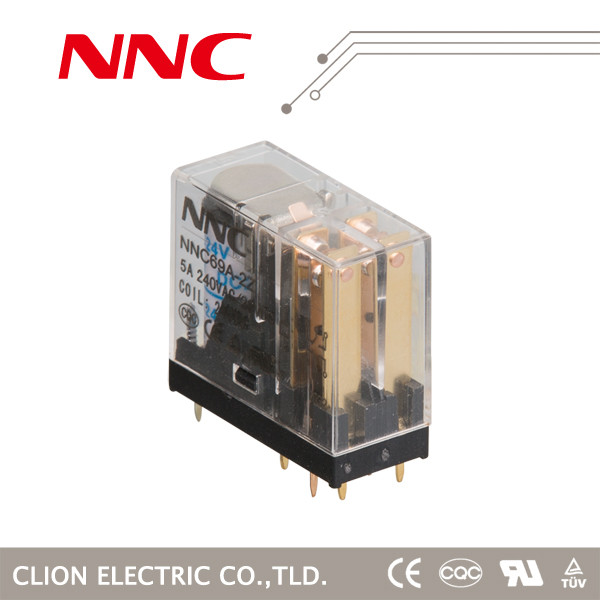

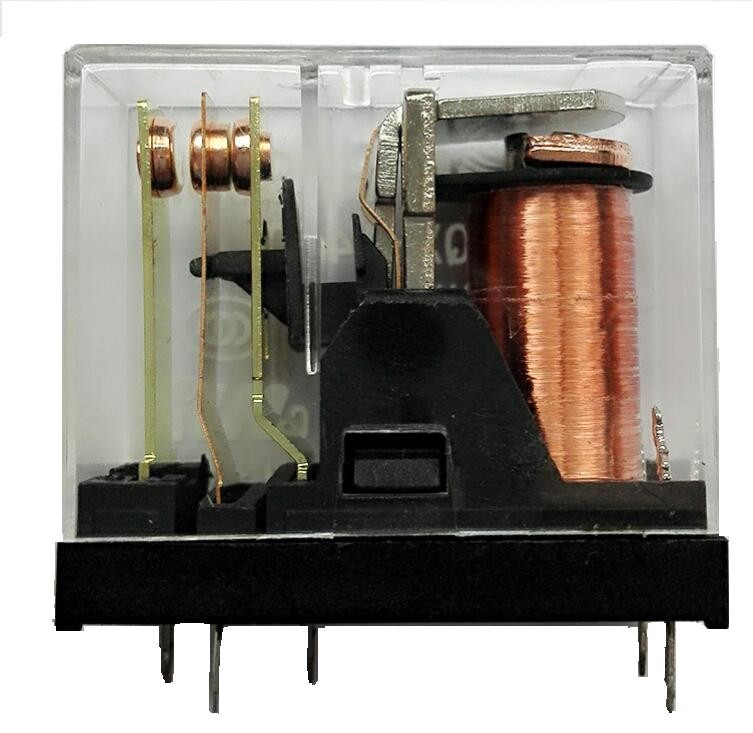

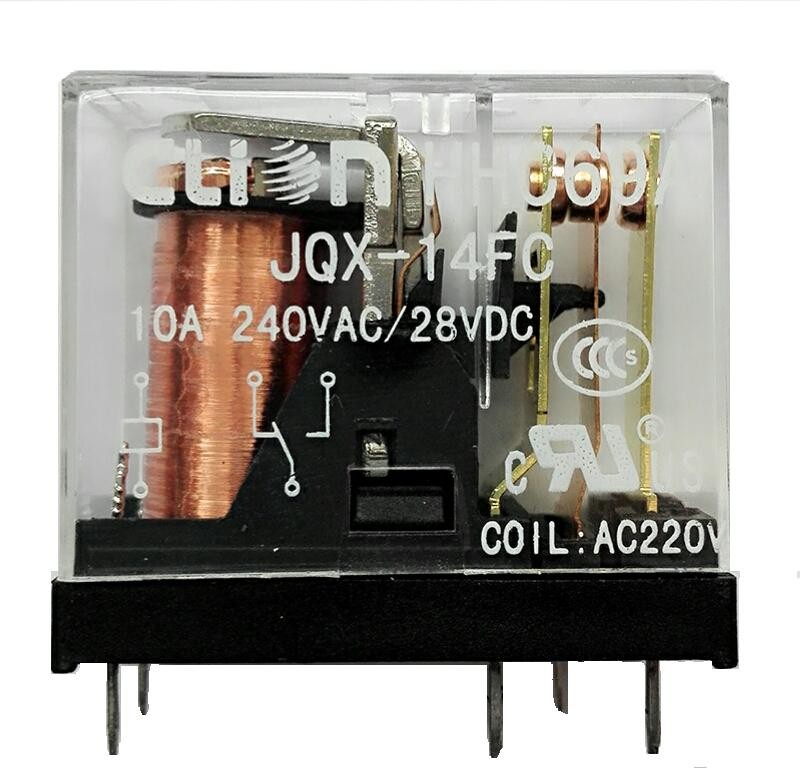

PCB Relay HHC69A-2Z(JQX-14FC) 5pin spdt pcb terminal relay 10A 5mm

1000
MOQ
Get Latest Price
Price
PCB Relay HHC69A-2Z(JQX-14FC) 5pin spdt pcb terminal relay 10A 5mm
Features Gallery Product Description Request A Quote
Features
Specifications
Theory: Electromagnetic Relay
Usage: PCB
Size: Miniature
Protect Feature: Sealed
Contact Load: Low Power
Highlight:

PCB relay

,

electromagnetic relay

,

CE certification
Basic Infomation
Place of Origin: China
Brand Name: clion
Certification: CE, CQC,UL
Model Number: NNC69A-2Z(JQX-14FC)
Payment & Shipping Terms
Packaging Details: Export packing
Delivery Time: 30 days
Payment Terms: TT
Supply Ability: 50,000 pieces per month
Port: Shanghai&Ningbo
Product Description

https://clion.en.alibaba.com/product/60665128108-804149855/NNC_miniature_PCB_Relay_NNC69A_2Z_JQX_14FC_2C_5A_DC_3V_24v_voltage_relay.html?spm=a2700.8304367.0.0.jfnbKk

PCB Relay HHC69A-2Z(JQX-14FC) 5pin spdt pcb terminal relay 10A 5mm 0

Part NO.
HHC69A(JQX-14FC)
Dimension
29*13*25.3
Contact Feature
Form
1A,1B,1C
2A,2B,2C
Rated load
10A/240VAC 28VDC
16A/240VAC 28VDC
5A/240VAC 28VDC
Contact resistance
≤100mΩ
Material
Silver Alloy
Electrical life
≥1*105
Mechanical life
≥1*107
Operate voltage (23℃)
DC:≤75%*Rated voltage
AC:≤80%*Rated voltage
Release voltage (23℃)
DC:≥10%*Rated voltage
AC:≥30%*Rated voltage
Maximum voltage (23℃)
110%*Rated voltage
Normal coil voltage
DC
3-11OV
AC
6-220V
Normal coil power
DC
0.53W
AC
1.0VA
Pick-up time
≤20ms
Release time
≤10ms
Dielectric strength
Between Same-pole contacts
1000VAC/1min(leakage current 1mA)
Between Opposite-pole contacts
　
Between contacts and coil
5000VAC/1min(leakage current 1mA)
Insulation resistance
≥100mΩ(500VDC)
Ambient temperature
-55℃ ～70℃
Ambient humidity
35%-80%RH
Atmospheric pressure
86-106KPa
Shock resistance
10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance
10-55Hz (double amplitude: 1.5mm)
Installation
PCB,Socket
