PCB Relay HHC67H(T93)

China PCB Relay HHC67H(T93) supplier
PCB Relay HHC67H(T93) supplier PCB Relay HHC67H(T93) supplier PCB Relay HHC67H(T93) supplier

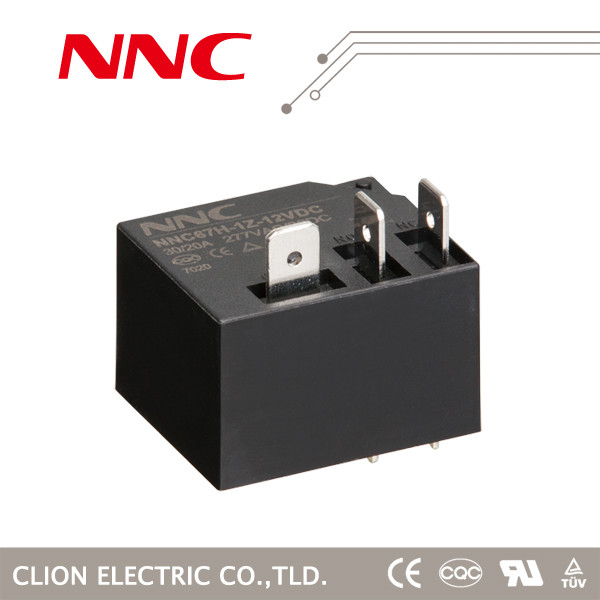

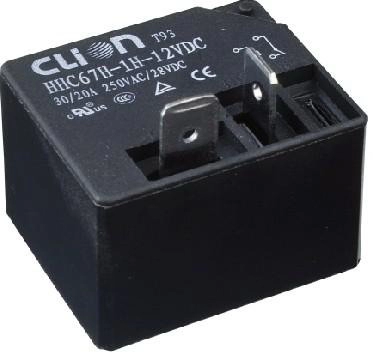

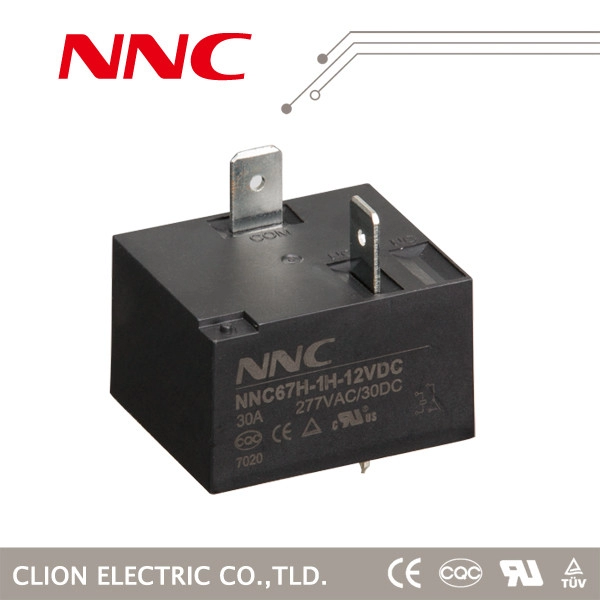

Large Image :  PCB Relay HHC67H(T93)

Product Details:

Place of Origin: China
Brand Name: clion
Certification: CE, CQC,UL,TUV
Model Number: HHC67H(T93)

Payment & Shipping Terms:

Minimum Order Quantity: 10000
Price: Get Latest Price
Packaging Details: Export packing
Delivery Time: 15 days
Payment Terms: TT
Supply Ability: 500,000 pieces
Port: Shanghai&Ningbo
Contact Now
Detailed Product Description
Theory: Electromagnetic Relay Usage: PCB
Size: Miniature Protect Feature: Sealed
Contact Load: Low Power
High Light:

PCB relay

,

general purpose relay

,

T series

https://clion.en.alibaba.com/product/60670343895-804149855/NNC_miniature_electromagnetic_PCB_Relay_NNC67H_T93_12v_24v_30A_5Pin_SPDT_voltage_relay.html?spm=a2700.8304367.0.0.k1bjdd

Part NO.
HHC67H(T93)
Dimension
32.5*27.5*28.5
Contact Feature
Form
1A,1B,1C
Rated load
A:30A/240VAC 28VDC Z:20A/240VAC 28VDC
A:40A/240VAC 28VDC Z:30A/240VAC 28VDC
Contact resistance
≤100mΩ
Material
Silver Alloy
Electrical life
≥1*105
Mechanical life
≥1*107
Operate voltage (23℃)
DC:≤75%*Rated voltage
AC:≤80%*Rated voltage
Release voltage (23℃)
DC:≥10%*Rated voltage
AC:≥30%*Rated voltage
Maximum voltage (23℃)
110%*Rated voltage
Normal coil voltage
DC
3-11OV
AC
6-220V
Normal coil power
DC
0.93W
AC
1.2VA
Pick-up time
≤15ms
Release time
≤10ms
Dielectric strength
Between Same-pole contacts
1500VAC/1min(leakage current 1mA)
Between Opposite-pole contacts

Between contacts and coil
1500VAC/1min(leakage current 1mA)
Insulation resistance
≥100mΩ(500VDC)
Ambient temperature
-55℃ ~70℃
Ambient humidity
35%-80%RH
Atmospheric pressure
86-106KPa
Shock resistance
10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance
10-55Hz (double amplitude: 1.5mm)
Installation
PCB
Packing
Inner box
Paper box(PCS)
50
Outer box
Paper box(PCS)
500
Dimension of the carton
CTN
360*210*415mm
Weight
1PC
Approximate: 33g
1CTN
G.W:17.5KG N.T:16.5KG
