NNC miniature electromagnetic pcb Relay 90F 1Z 60A for PCB circuit

5000
MOQ
Get Latest Price
Price
NNC miniature electromagnetic pcb Relay 90F 1Z 60A for PCB circuit
Features Gallery Product Description Request A Quote
Features
Specifications
Theory: Electromagnetic Relay
Usage: PCB
Size: Miniature
Protect Feature: Sealed
Contact Load: Low Power
Rated Contact Load: 60A
Insulation Resistance: 100MΩ
Contact Form: 1 Form A, 1 Form B, 1 Form C
Number Of Poles: 1 Pole
Release Time: 15ms Max.
Operating Temperature: -40°C To 85°C
Max Switching Voltage: 277VAC/30VDC
Basic Infomation
Place of Origin: China
Brand Name: clion
Certification: CE, CQC,UL,TUV
Model Number: NNC90F-1Z 60A
Payment & Shipping Terms
Packaging Details: Export packing
Delivery Time: 15 days
Payment Terms: TT
Supply Ability: 50,000 pieces Per Month
Port: Shanghai&Ningbo
Product Description

Clion Rohs compliance NNC69FTL 1Z 2Z industrial control relay for Household Appliances - industrial control relay and Household Appliances


Related Items

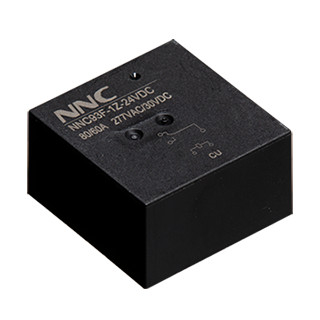

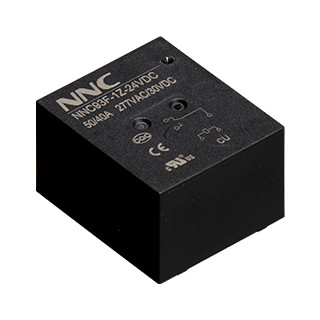

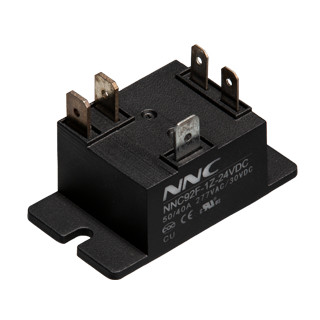

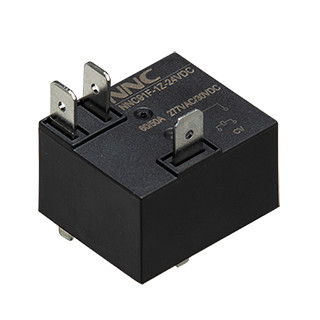

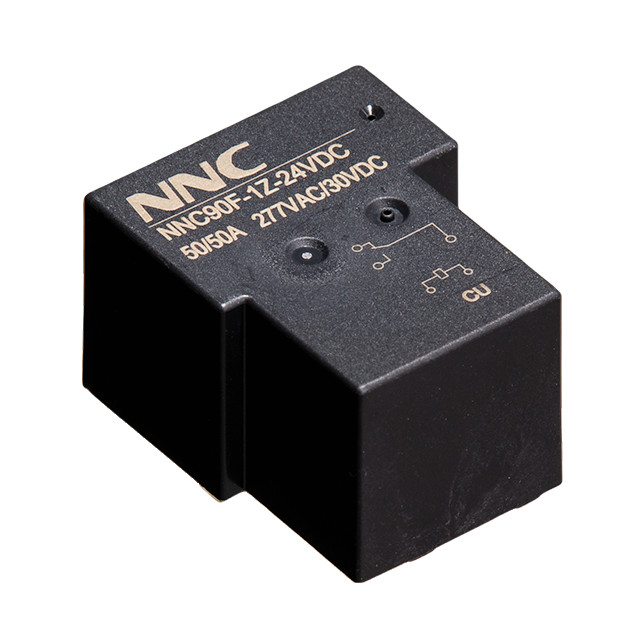

NNC miniature electromagnetic pcb Relay 90F 1Z 60A for PCB circuit 0NNC miniature electromagnetic pcb Relay 90F 1Z 60A for PCB circuit 1NNC miniature electromagnetic pcb Relay 90F 1Z 60A for PCB circuit 2NNC miniature electromagnetic pcb Relay 90F 1Z 60A for PCB circuit 3




Model Descriptions

NNC90F-1ZL-12VDC

① Item no. NNC90F

② Contact form: 1H;1D;1Z

③ Coil Power: L:0.9W; Blank:1.5W

④ COil Voltage: Customized

NNC miniature electromagnetic pcb Relay 90F 1Z 60A for PCB circuit 4



Specification

Part NO. NNC90F
Dimension 32.2*27.4*19.4
Contact Feature Form 1A,1B,1C
Rated load 60A 277VAC
Contact resistance ≤100mΩ
Material Silver Alloy
Electrical life ≥1*10^4
Mechanical life ≥1*10^7
Operate voltage (23℃) DC:≤75%*Rated voltage
AC:≤75%*Rated voltage
Release voltage (23℃) DC:≥10%*Rated voltage
AC:≥10%*Rated voltage
Maximum voltage (23℃) 90-130%*Rated voltage
Normal coil voltage DC 5-110V
AC 5-110V
Normal coil power DC 1.5W
AC 0.9VA
Pick-up time ≤20ms
Release time ≤15ms
Dielectric strength Between Same-pole contacts 1500VAC/1min(leakage current 1mA)
Between Opposite-pole contacts
Between contacts and coil 2500VAC/1min(leakage current 1mA)
Insulation resistance ≥100mΩ(500VDC)
Ambient temperature -45℃ ~85℃
Ambient humidity 45%-85%RH
Vibration resistance 10-55Hz (double amplitude: 1.5mm)
Installation PCB
Packing Inner box Paper box(PCS) 50
Outer box Paper box(PCS) 500
Dimension of the carton CTN 360*210*325mm
Weight 1PC Approximate: 33g
1CTN G.W:17.5KG N.T:16.5KG

Dimension/Wiring Diagram
NNC miniature electromagnetic pcb Relay 90F 1Z 60A for PCB circuit 5

NNC miniature electromagnetic pcb Relay 90F 1Z 60A for PCB circuit 6



 NNC miniature electromagnetic pcb Relay 90F 1Z 60A for PCB circuit 7
