Home /Products/Encoder/Clion CHB38H Series Rotary Encoder with High-Frequency Response and Resolution for Stone Machinery and Automation Fields

Clion CHB38H Series Rotary Encoder with High-Frequency Response and Resolution for Stone Machinery and Automation Fields

500pcs
MOQ
get latest price
Price
Clion CHB38H Series Rotary Encoder with High-Frequency Response and Resolution for Stone Machinery and Automation Fields
Features Gallery Product Description Request A Quote
Features
Specifications
Item NO.: CHB38H
Shaft Diameter: φ8mm
Installation Form: Axle Sleeve Type
Working Power: DC5-24V
Specification: Ф 38mm
Basic Infomation
Place of Origin: China
Brand Name: Clion
Certification: CE/CCC
Model Number: CHB38H
Payment & Shipping Terms
Delivery Time: 7-14 days
Payment Terms: T/T
Supply Ability: 2k pcs 7 days
Product Description

CHB-38H series Rotary Encoder

Features

1. Small size,Diverse varieties
2. Comprehensive functions
3. High-frequency response and resolution
4. Low power consumption
5. Stable and reliable performance

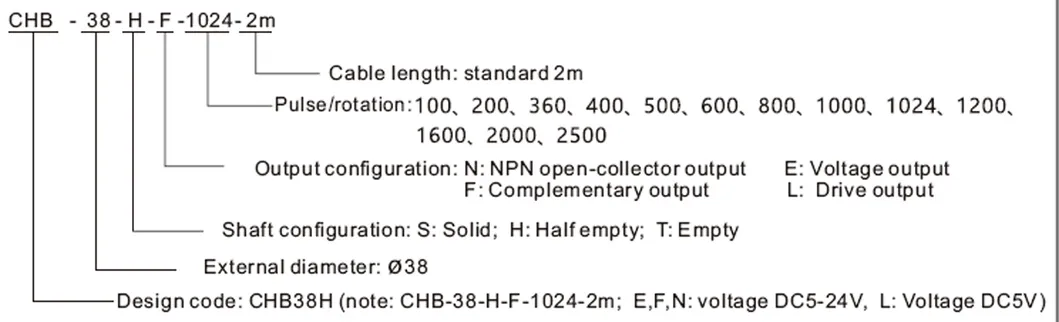

Ordering InformtaionClion CHB38H Series Rotary Encoder with High-Frequency Response and Resolution for Stone Machinery and Automation Fields 0



Specification
CHB38H series
Model CHB38H-N/E/F/L-(100,200,360,400,600,800,1000,1024,2000,2500)
Main size External diameter:φ38mm; Shaft inner diameter:φ8mm
Working power DC5V-24V
Output mode N: Open-collector output (NPN)
E: Voltage output
F: Complementary output
L: Drive output
Pulse output 100,200,360,400,600,800,1000,1024,2000,2500
Output phase A B Z or A B Z -A -B -Z
Termination mode G:Side entry cable
Application Stone machinery, robots and other automation fields

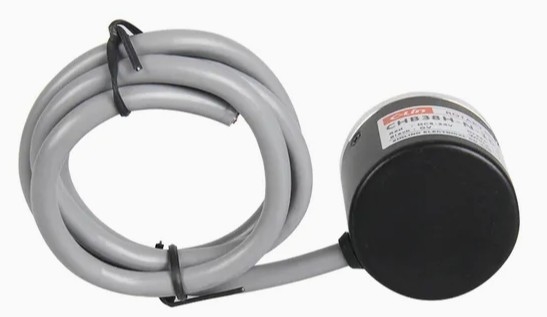

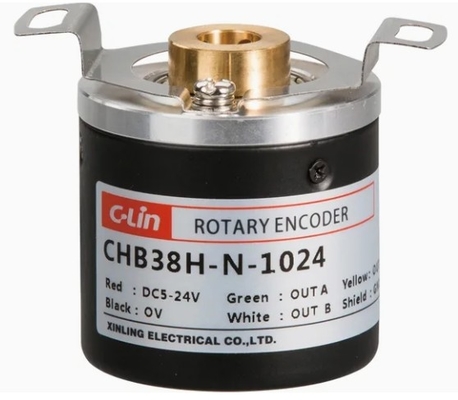

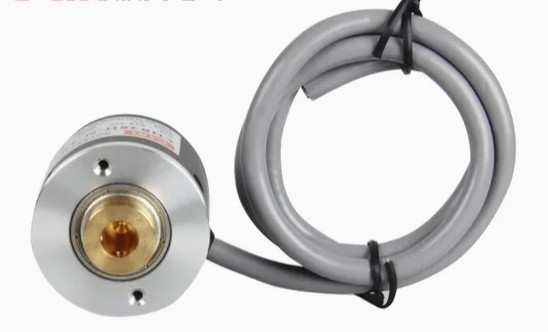

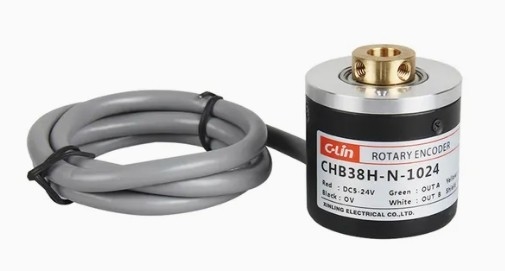

Clion CHB38H Series Rotary Encoder with High-Frequency Response and Resolution for Stone Machinery and Automation Fields 1Clion CHB38H Series Rotary Encoder with High-Frequency Response and Resolution for Stone Machinery and Automation Fields 2Clion CHB38H Series Rotary Encoder with High-Frequency Response and Resolution for Stone Machinery and Automation Fields 3
