Clion CHA38S-N/E/F series Rotary Encoder with stable performance for motors, elevators,CNC machine tools
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item NO. | CHA38S-N/E/F | Shaft Diameter | Ф6mm |
|---|---|---|---|
| Termination Mode | G: Side Entry Cable | Working Power | DC5-24V&Plusmn10 Percent |
| Specification | Ф 38mm |
Product Description
CHB-38S series Rotary Encoder
Features
1. Small size,Diverse varieties
2. Comprehensive functions
3. High-frequency response and resolution
4. Low power consumption
5. Stable and reliable performance

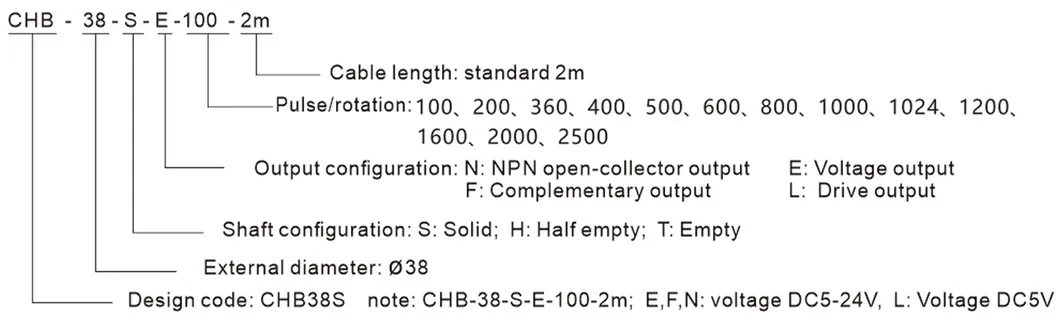

Ordering Informtaion
Specification
| CHB38S series | |
| Model | CHA38S-N/E/F-(100,200, 360,400,600) |
| Main size | External diameter:φ38mm; Shaft diameter:φ6mm |
| Working power | DC5-24V±10% |
Output mode |
N: Open-collector output (NPN) |
| E: Voltage output | |
| F: Complementary output | |
| Pulse output | 100,200,360,400,600 |
| Output phase | A B |
| Termination mode | G:Side entry cable |
| Application | Bending machines, solar cutting machines, glass machinery and food packaging industry |
Applications of the rotary encoder include pairing with our company's meter or rebar straightening machine, as well as various machinery industries such as textiles, packaging, printing, woodworking, plastics, etc., for counting and measuring displacement. It is widely used in automation control fields such as motors, elevators, CNC machine tools, robots, as well as in aerospace, industrial assembly lines, lifting industry, wind power industry, and more.

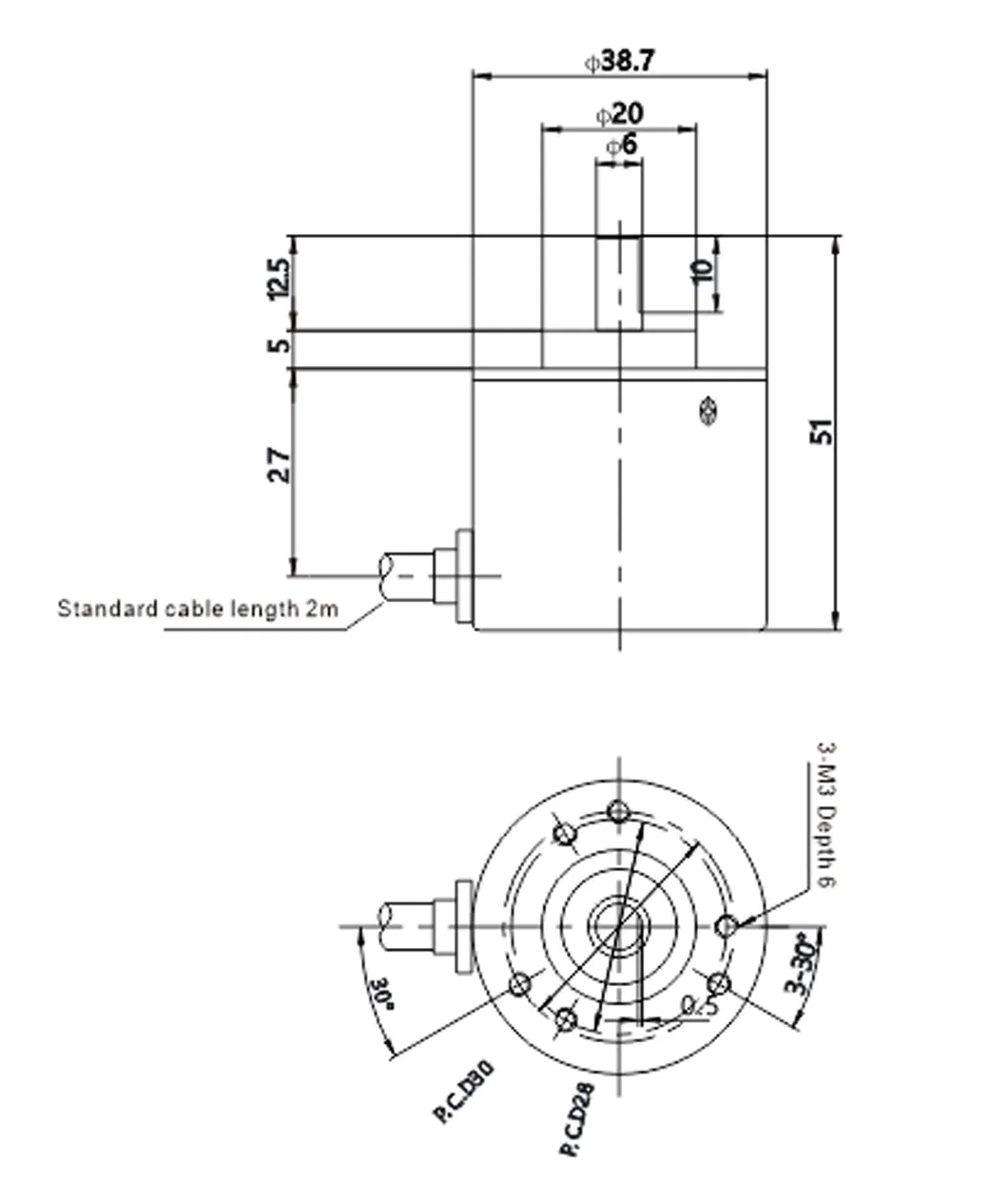

Dimensions
