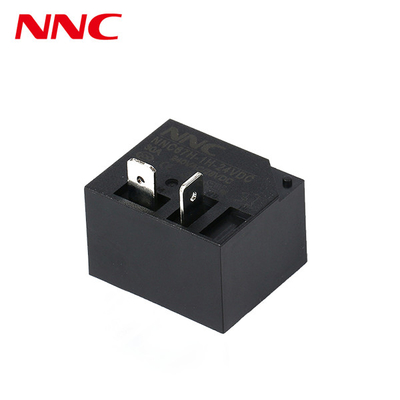

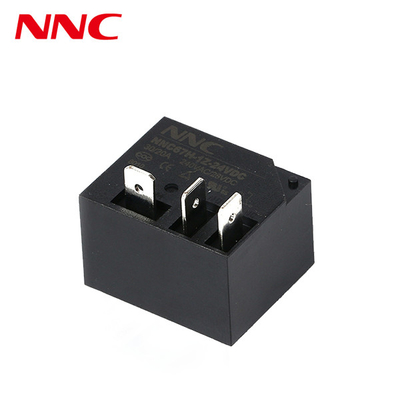

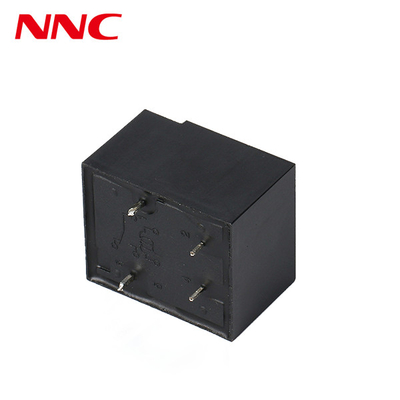

NNC miniature pcb relay NNC67H-1Z (T93) 5pin 12 volt pcb relay with Switching capability up to 40A

1000pcs
MOQ
USD 0.57~1.12
Price
NNC miniature pcb relay NNC67H-1Z (T93) 5pin 12 volt pcb relay with Switching capability up to 40A
Features Gallery Product Description Request A Quote
Features
Specifications
Contact Material: Ag Alloy
Contact Form: Z=C(CO); H=A(NO); D=B(NC)
Contact Load: 30A 40A
Coil Voltage: DC3V-110V; AC6V-240V
Max Switching Voltage: 277VAC/30VDC
Mechanical Life: 1×10^7 Operations Min.
Electrical Life: 1×10^5 Operations Min.
Basic Infomation
Place of Origin: China
Brand Name: NNC
Certification: UL/CE/TUV/CQC
Model Number: NNC67H-1Z DC12V 30A
Payment & Shipping Terms
Packaging Details: carton packing
Delivery Time: 7-14 days
Payment Terms: T/T, L/C
Supply Ability: 30k pcs 7 days
Product Description
NNC67H Miniature High Power Relay

NNC miniature pcb relay NNC67H-1Z (T93) 5pin 12 volt pcb relay with Switching capability up to 40A 0NNC miniature pcb relay NNC67H-1Z (T93) 5pin 12 volt pcb relay with Switching capability up to 40A 1

NNC miniature pcb relay NNC67H-1Z (T93) 5pin 12 volt pcb relay with Switching capability up to 40A 2



Features:
Miniature,PCB terminals
Quick-connect terminals
Switching capability up to 40A
AC/DC coil relay
RoHS compliance
TUV:R50301238
UL:E235027
CE:5398090516 CQC:14002106906

NNC miniature pcb relay NNC67H-1Z (T93) 5pin 12 volt pcb relay with Switching capability up to 40A 3
NNC miniature pcb relay NNC67H-1Z (T93) 5pin 12 volt pcb relay with Switching capability up to 40A 4
Certificate

Certificate

NNC miniature pcb relay NNC67H-1Z (T93) 5pin 12 volt pcb relay with Switching capability up to 40A 5

Shipment & Packaging

Shipment & Packaging



Packing   Paper Box
Inner Box(pcs) 50
Outer Box(pcs) 500
Dimension of the carton
360×210×415mm
Weight G.W:16KG N.W:15KG



NNC miniature pcb relay NNC67H-1Z (T93) 5pin 12 volt pcb relay with Switching capability up to 40A 6

FAQ

FAQ



Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.



Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.



Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)



Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.



Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.



Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.



Q7: What is your warranty time of the products?
A7: 12-24 months
