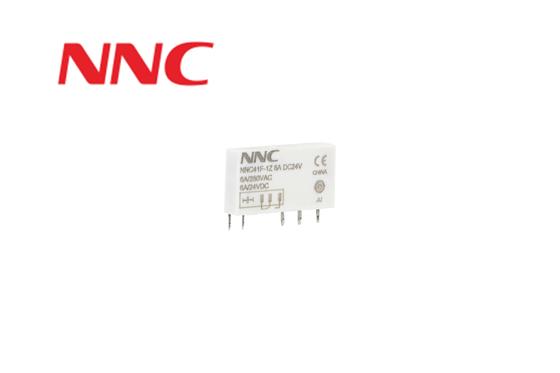

NNC41 Industrial Control Relay with 10A Switching Capability and High Performance for Industrial Device

2000pcs
MOQ
USD 0.73-1.108MOQ600pcs
Price
NNC41 Industrial Control Relay with 10A Switching Capability and High Performance for Industrial Device
Features Gallery Product Description Request A Quote
Features
Specifications
Contact Material: Ag Alloy
Insulation Class: Class F
Load Current: 6A/10A

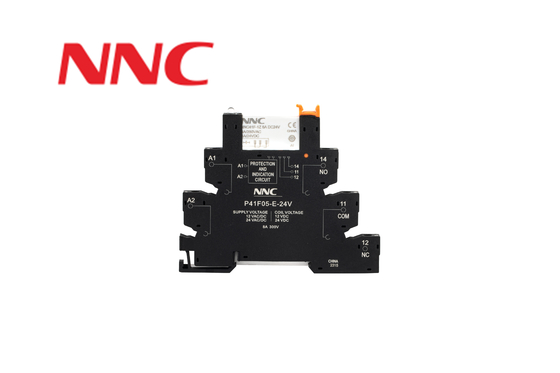

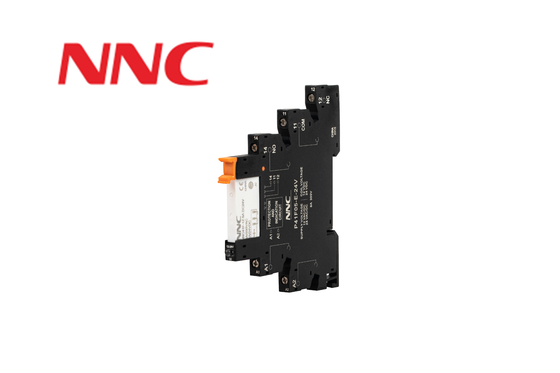

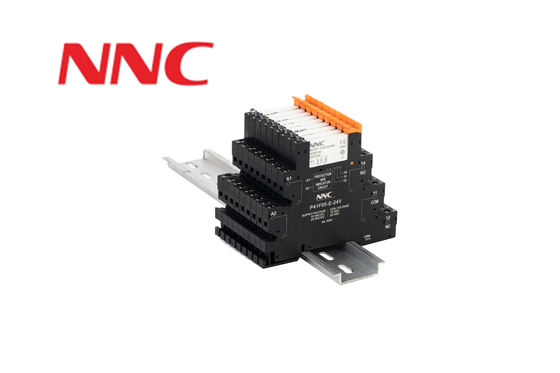

Installation: Socket Available
Size: 28*5*15.05mm
Contact Form: 1Z/1H
Mechanical Life: 1*10^7
Electrical Life: 1*10^4~3*10^4
Basic Infomation
Place of Origin: China
Brand Name: NNC
Certification: UL/TUV/CQC
Model Number: NNC41-10-1Z DC12V
Payment & Shipping Terms
Packaging Details: carton packing
Delivery Time: 8-15days
Payment Terms: T/T, L/C
Supply Ability: 30k pcs 7 days
Product Description

NNC41 Specification



Ordering information 订货信息
NNC  41-10-1H  S  P  F  T  G-(XXX)-DC12V
1         2    3   4    5  6  7   8  9     10       11
①Brand name 商标代码:NNC
②Item no.设计型号:41
③Rating load current 额定负载电流:6=6A 安培 10=10A 安培
④Contact contact 触点类型:1A=normally open 1 组常开型；1Z=switching contact 1 组转换型.
⑤Protect construction 保护结构:S=Plastic sealed 塑封型；Blank 无=RTII 防焊剂型.
⑥Coil power 线圈功率 P=High Power 高功率型; Blank 无=Standard type 标准型
⑦Insulation class 绝缘等级:F=ClassF F 级
⑧Contact material 触点材料:T: AgNi; Blank 无=AgSnO 银锡材料
⑨Contact plating 触点镀层:G=Gold Plating 表层镀金；Blank 无=无镀层
⑩Special code 特性码:XXX=Special requirement code 客户特殊特性代码
⑪Coil voltage 线圈电压:refer coil datasheet 参考线圈参数表

Features 特点:
● 10A switching capability 10A 负载切换能力
● matching inrush current 80A,承受 80A 冲击电流
● 1 poles available 1 组触点
● M-life 10KK cycles,机械寿命 1000 万次以上.
● UL insulation system UL 绝缘等级:Class F
● ROHS comply. 满足 ROHS 要求
● Comply IEC60335-1 available ,可提供满足 IEC60335-1 标准产品
● Socket available 满足插座配套使用
● Clearance distance: >8 mm,and creepage distance: >8 mm.
空间距离大于 8mm,爬电距离大于 8mm.
NNC41 Industrial Control Relay with 10A Switching Capability and High Performance for Industrial Device 0NNC41 Industrial Control Relay with 10A Switching Capability and High Performance for Industrial Device 1
NNC41 Industrial Control Relay with 10A Switching Capability and High Performance for Industrial Device 2NNC41 Industrial Control Relay with 10A Switching Capability and High Performance for Industrial Device 3
NNC41 Industrial Control Relay with 10A Switching Capability and High Performance for Industrial Device 4
Outline dimensions 外形尺寸
1: 外形尺寸图 OUTLINE
                                                  1C TYPE  1 组转换型                                                                                                               1A TYPE 1 组常开型
NNC41 Industrial Control Relay with 10A Switching Capability and High Performance for Industrial Device 5
内部接线图 Terminal-arrangement(bottom view)

NNC41 Industrial Control Relay with 10A Switching Capability and High Performance for Industrial Device 6
            1A TYPE     1组常开型
NNC41 Industrial Control Relay with 10A Switching Capability and High Performance for Industrial Device 7
Certificate

Certificate

NNC41 Industrial Control Relay with 10A Switching Capability and High Performance for Industrial Device 8

Shipment & Packaging

Shipment & Packaging

Packing   Paper box(pcs) 2000
Outer Box
Dimension of the carton CTN 57*18.5*12CM
Weight 1ctn G.W:12KG N.W:11KG



NNC41 Industrial Control Relay with 10A Switching Capability and High Performance for Industrial Device 9

FAQ

FAQ



Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.



Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.



Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)



Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.



Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.



Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.



Q7: What is your warranty time of the products?
A7: 12-24 months
