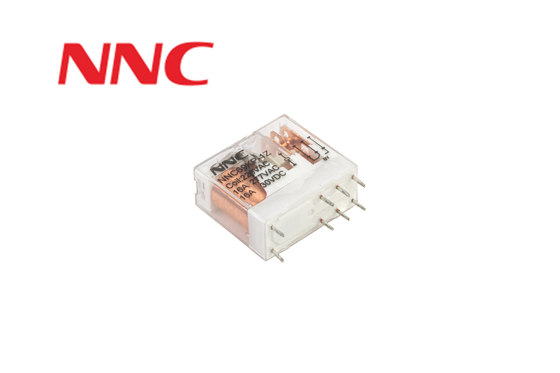

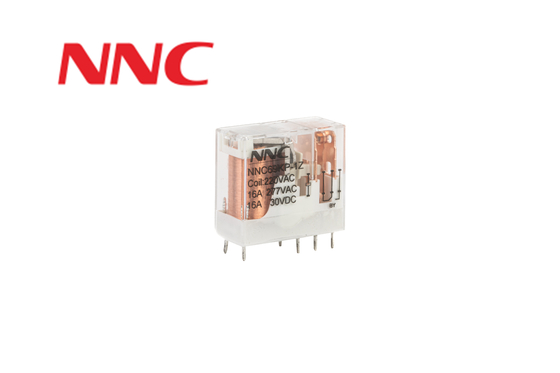

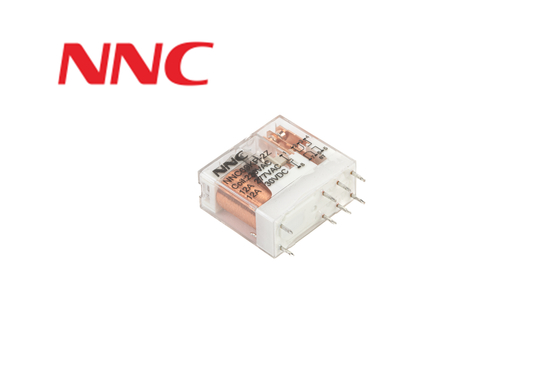

Sealed PCB terminals 1 to 2 switching poles customized Relay The Ultimate Solution for Your Industrial Control
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Contact Material | Ag Alloy | Load Current | 1Z For 10A And 16A; 2Z For 12A |
|---|---|---|---|
| Protect Construction | Plastic Sealed Or Flux Type | Indulation Class | Class F |
| Mechanical Life | 1*10^7 | Electrical Life | 1*10^5 |
| Size | 29*12.7*27.5 |
You can tick the products you need and communicate with us in the message board.
| 8536411090 |
|---|
Product Description
NNC69KP Specification
1 产品类型(TYPE MODEL)
1.1 型号(TYPE)及说明:NNC69KP-2Z
NNC69KP - 2Z -12A -S T F (XXX) / DC12V
① ② ③ ④ ⑤ ⑥ ⑦ ⑧
① Series 系列: 69KP
② Contact arrangement 触点类型:
2H=2 form H 2 组常开型； 2D=2 form B 2 组常闭； 2Z=2 form Z 2 组转换型.
③ Rating load current 额定负载电流:12=12A 安培
④ Protect construction 保护结构:S=Plastic sealed 塑封型；Nil 无=Flux type 防焊剂型.
⑤ Contact material 触点材料:T=AgSnO2 银氧化锡
⑥ Insulation class 绝缘等级: F= Class F F 级
⑦ Special code 特性码:XXX=Special requirement code 客户特殊特性代码
⑧ Coil voltage 线圈电压: refer coil data sheet 参考线圈参数表
1.2 触点形式(CONTACT ARRANGEMENT) 2Z,2H,2D
1.3 触点材料(CONTACT MATERIAL) 银合金 Ag Allyo
Shipment & Packaging
| Packing | Inner Box | Paper box(pcs) | 100 |
| Outer Box | Paper box(pcs) | 600 | |
| Dimension of the carton | CTN | 41*31*16CM | |
| Weight | 1CTN | G.W:11.6KG N.W:10.6KG |
FAQ
Q1: Are you Factory?
A1:Yes,we focus on relay and micro switch more than 13years.
Q2: How do you control the products' quality?
A2: Auto inspection machine and manual testing together before packing.
Q3: What's your payment term?
A3:We usually accept T/T(30% deposit,the balance before delivery.)
Q4: Would you accept to use our logo?
A4: If you have good quantity,we can make OEM for you.
Q5: Can I get a sample for reference?
A5: We provide free samples for testing,you only need to pay the express cost.
Q6: What is your delivery time?
A6: Usually it takes 20-35 working days for production.
Q7: What is your warranty time of the products?
A7: 12-24 months
