PCB Relay HHC69B(JQX-14FF)

China PCB Relay HHC69B(JQX-14FF) supplier
PCB Relay HHC69B(JQX-14FF) supplier PCB Relay HHC69B(JQX-14FF) supplier PCB Relay HHC69B(JQX-14FF) supplier PCB Relay HHC69B(JQX-14FF) supplier PCB Relay HHC69B(JQX-14FF) supplier PCB Relay HHC69B(JQX-14FF) supplier PCB Relay HHC69B(JQX-14FF) supplier PCB Relay HHC69B(JQX-14FF) supplier

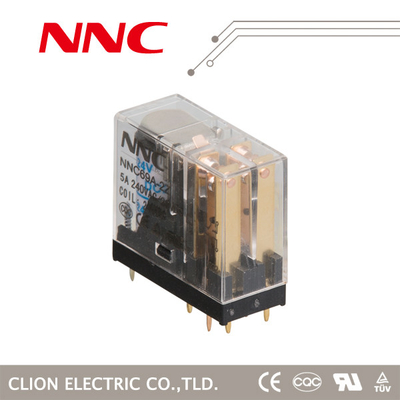

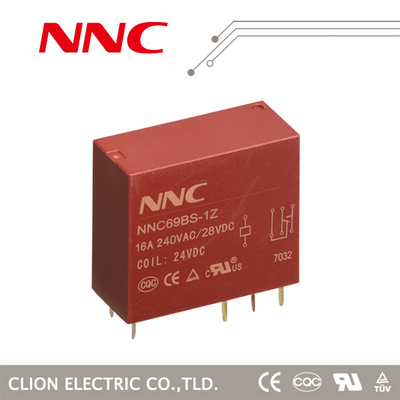

Large Image :  PCB Relay HHC69B(JQX-14FF)

Product Details:

Place of Origin: China
Brand Name: clion
Certification: CE, CQC,UL
Model Number: HHC69B

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Get Latest Price
Packaging Details: Export packing
Delivery Time: 30 days
Payment Terms: TT
Supply Ability: 50,000 pieces per month
Port: Shanghai&Ningbo
Contact Now
Detailed Product Description
Color: Black And Red

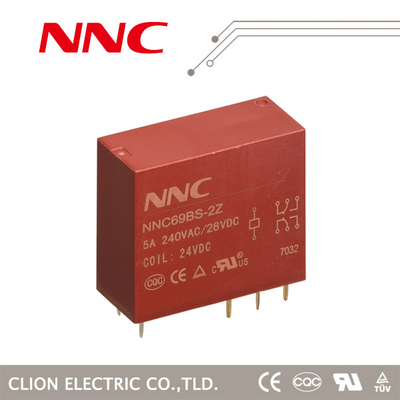

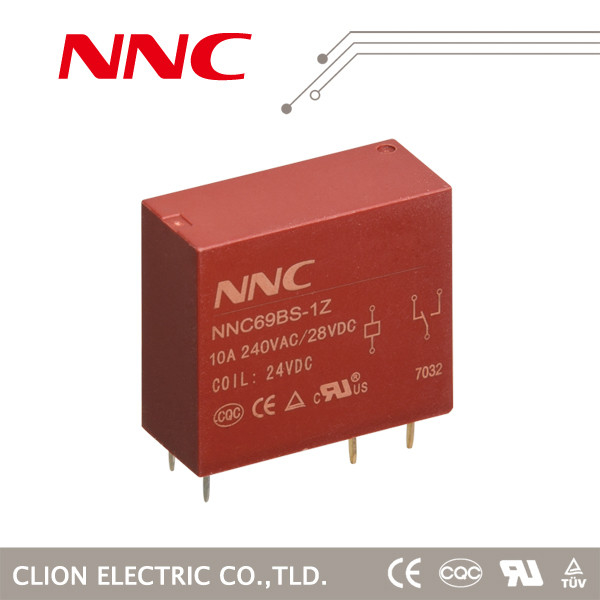

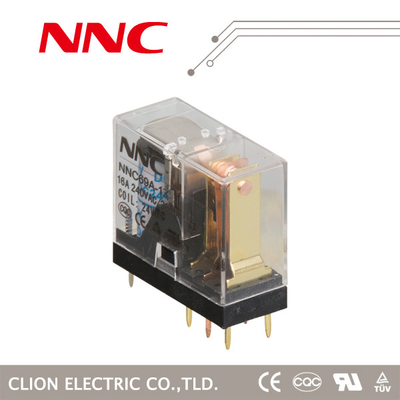

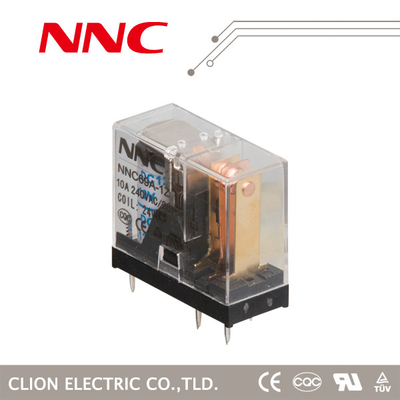

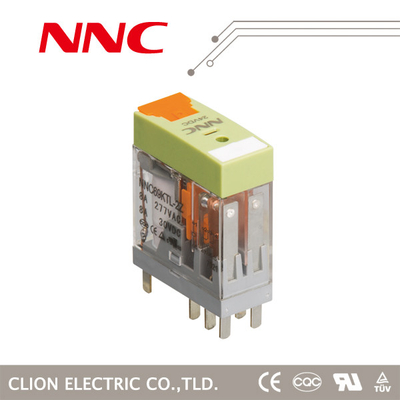

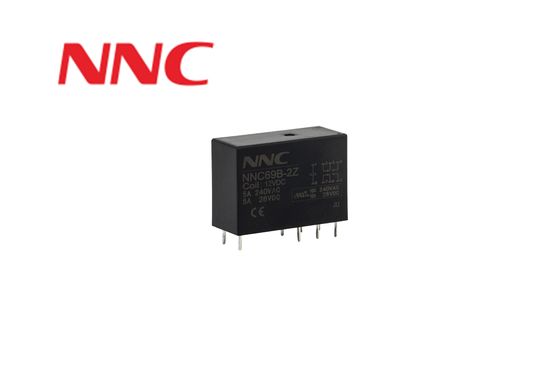

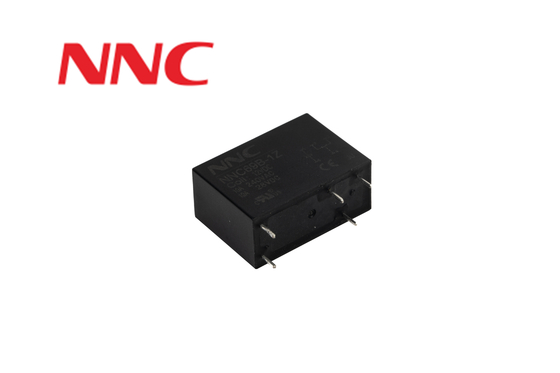

Detailed Images

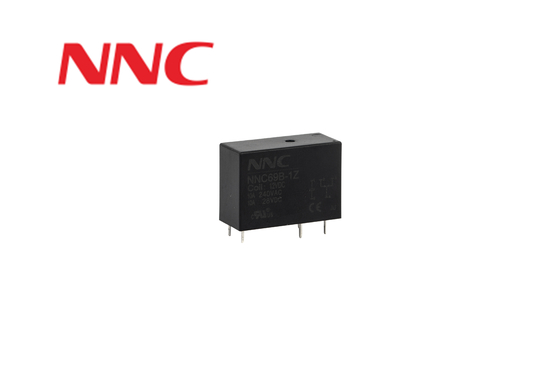

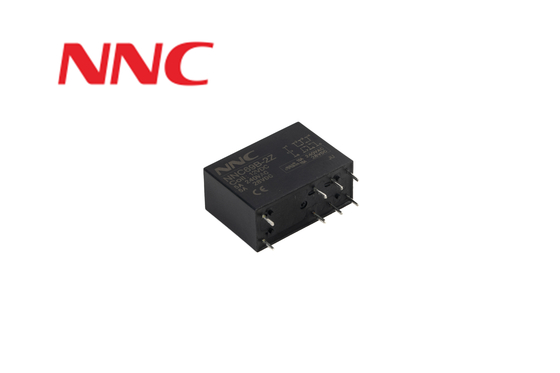

Related Products


Product Description

 Model Description




Part NO. NNC69B(JQX-14FF)
Dimension 29*12.5*25.6
Contact Feature Form 1A,1B,1C 2A,2B,2C
Rated load 10A/240VAC 28VDC 16A/240VAC 28VDC 5A/240VAC 28VDC
Contact resistance ≤100mΩ
Material Silver Alloy
Electrical life ≥1*105
Mechanical life ≥1*107
Operate voltage (23℃) DC:≤75%*Rated voltage
AC:≤80%*Rated voltage
Release voltage (23℃) DC:≥10%*Rated voltage
AC:≥30%*Rated voltage
Maximum voltage (23℃) 110%*Rated voltage
Normal coil voltage DC 3-11OV
AC 6-220V
Normal coil power DC 0.53W
AC 1.0VA
Pick-up time ≤20ms
Release time ≤10ms
Dielectric strength Between Same-pole contacts 1000VAC/1min(leakage current 1mA)
Between Opposite-pole contacts
Between contacts and coil 5000VAC/1min(leakage current 1mA)
Insulation resistance ≥100mΩ(500VDC)
Ambient temperature -55℃ ~70℃
Ambient humidity 35%-80%RH
Atmospheric pressure 86-106KPa
Shock resistance 10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance 10-55Hz (double amplitude: 1.5mm)
Installation PCB,Socket
Wiring Diagram

69A 2.jpg

Packaging & Shipping

 t90 4.png






Company Information














OUR TEAM

team 2.jpg


 1.How do you control the quality?

100% Auto inspection machine and manul testing together before packing.

2.What's your payment terms?

We usual accept 30% T/T payment in advance, and the balance payment before shipment,

Samples cost can be paid by west union ,because it's fast and convient.

3.Would you accept to USE our LOGO?

If you have good quality,we can make OEM and ODM,custiomized specification.

4.Can I get a sample for reference?

we are gald to send samples for your testing, but you need to pay the express cost.

5.What is your delivery time?

Usually, 1-3days for samples, 10-20 days for bulk goods.

6.What is your warranty time of the products?

One year from the shipment date,we will offer replacement if you receive the defective or wrong items.
