power relay HHC71B(JQX-38F-3Z)

China power relay HHC71B(JQX-38F-3Z) supplier
power relay HHC71B(JQX-38F-3Z) supplier power relay HHC71B(JQX-38F-3Z) supplier

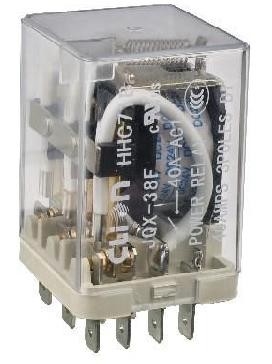

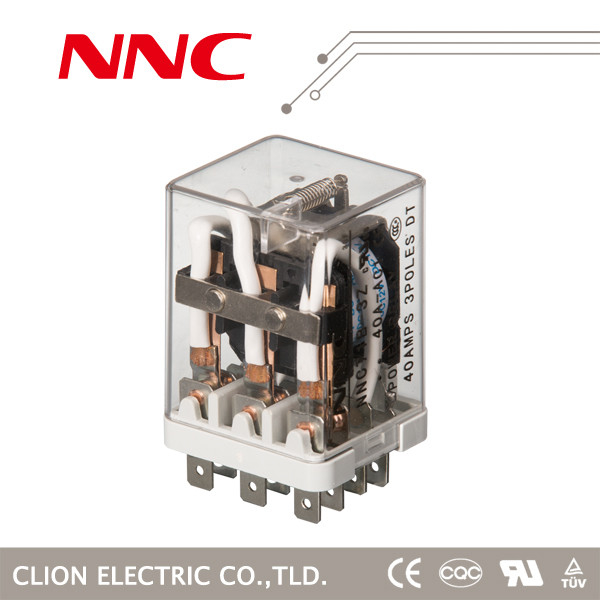

Large Image :  power relay HHC71B(JQX-38F-3Z)

Product Details:

Place of Origin: China
Brand Name: clion
Model Number: HHC71B(JQX-38F-3Z)

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Get Latest Price
Packaging Details: Export packing
Delivery Time: 30 days
Payment Terms: TT/LC
Supply Ability: 50,000 pieces per month
Contact Now
Detailed Product Description



Product Overview

Part NO.:HHC71B(JQX-38F-3Z)
Dimension: 55.5*30*37.5
Contact Feature
Form:3A,3B,3C
Rated load: 40A/240VAC 28VDC
Contact resistance: ≤100mΩ
Material: Silver Alloy
Electrical life: ≥1*105
Mechanical life: ≥1*107
Operate voltage (25℃): DC:≤75%*Rated voltage
                                           AC:≤80%*Rated voltage
Release voltage (25℃):DC:≥10%*Rated voltage
                                            AC:≥30%*Rated voltage
Normal coil voltage : DC  6-220V
                                      AC   6-380V
Normal coil power  : DC   2.5W
                                      AC   6VA
Pick-up time(Rated voltage): ≤25ms
Release time(Rated voltage):≤15ms
Dielectric strength
Between Same-pole contacts: 1500VAC/1min(leakage current 1mA)
Between Opposite-pole contacts: 1500VAC/1min(leakage current 1mA)
Between contacts and coil:  2500VAC/1min(leakage current 1mA)
Insulation resistance: ≥500mΩ(500VDC)
Ambient temperature:  -25℃ ~55℃
