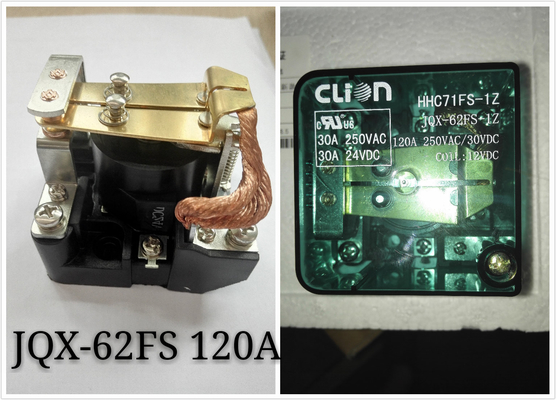

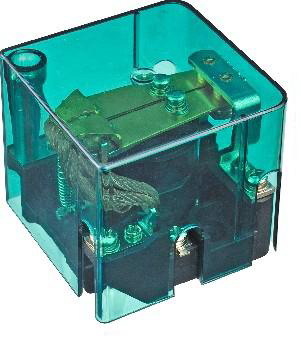

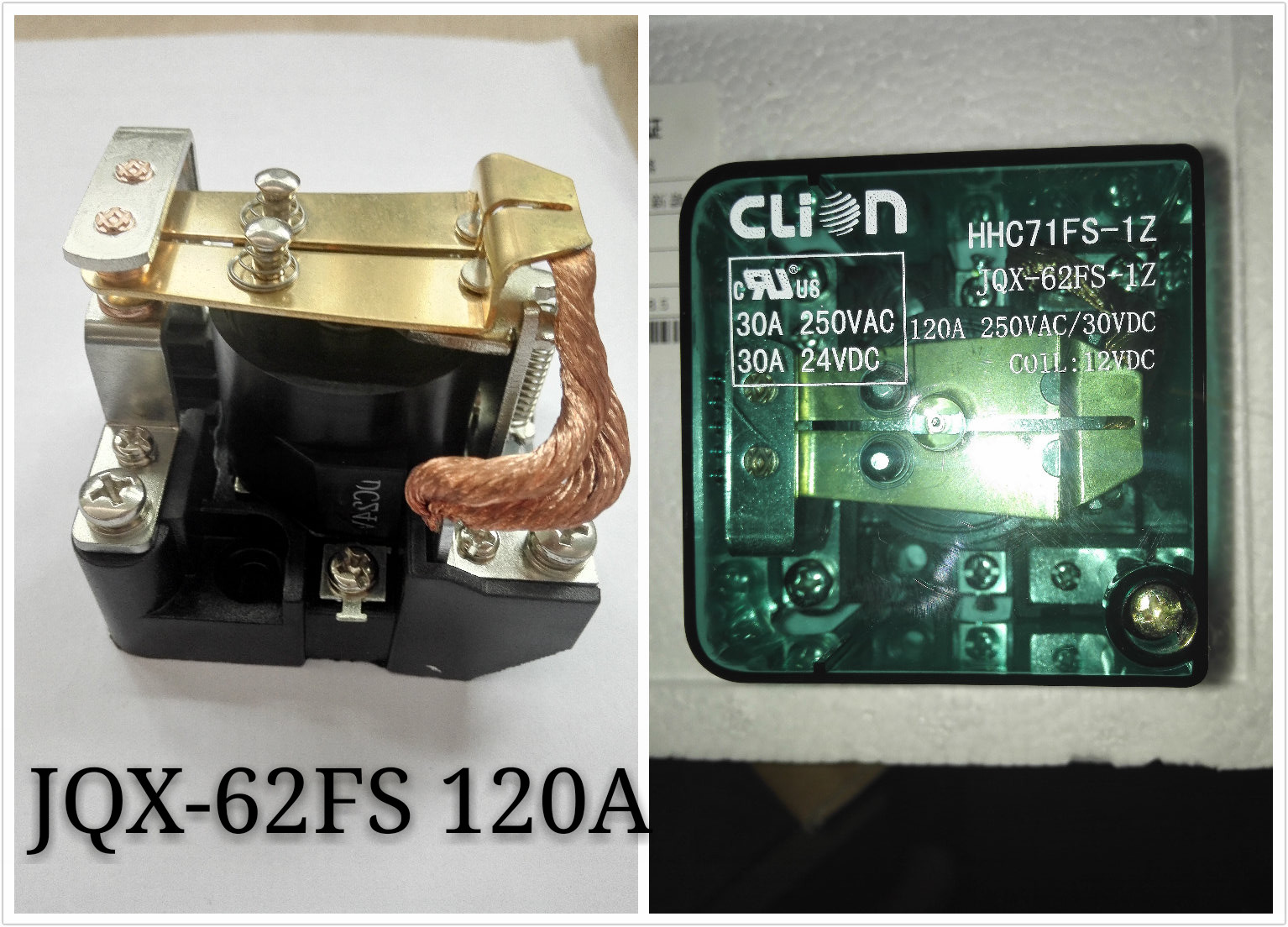

power relay,HHC71FS(JQX-62FS)

China power relay,HHC71FS(JQX-62FS) supplier
power relay,HHC71FS(JQX-62FS) supplier power relay,HHC71FS(JQX-62FS) supplier power relay,HHC71FS(JQX-62FS) supplier

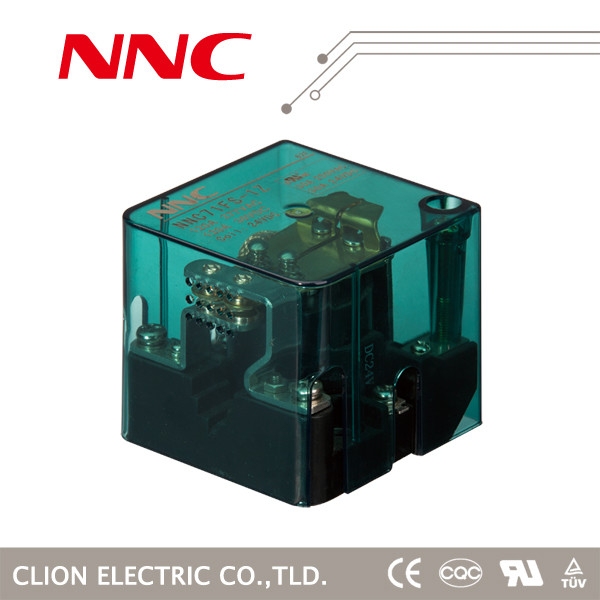

Large Image :  power relay,HHC71FS(JQX-62FS)

Product Details:

Place of Origin: China
Brand Name: clion
Model Number: HHC71FS(JQX-62FS)

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Get Latest Price
Packaging Details: Export packing
Delivery Time: 15-30 days
Payment Terms: TT
Supply Ability: 50,000 pieces per month
Contact Now
Detailed Product Description

Part NO.
HHC71FS(JQX-62FS)
Dimension
67*67*60.5
Contact Feature
Form
1A,1B,1C
Rated load
120A
Max switching voltage
250VAC/30VDC
Contact resistance
≤100mΩ
Material
Silver Alloy
Electrical life
≥1*105
Mechanical life
≥1*107
Operate voltage (25℃)
DC:≤75%*Rated voltage
AC:≤80%*Rated voltage
Release voltage (25℃)
DC:≥10%*Rated voltage
AC:≥30%*Rated voltage
Maximum voltage (25℃)
110%*Rated voltage
Normal coil voltage
DC
6-220V
AC
6-380V
Normal coil power
DC
2.0W
AC
10VA
Pick-up time(Rated voltage)
≤25ms
Release time(Rated voltage)
≤15ms
Dielectric strength
Between Same-pole contacts
1500VAC/1min(leakage current 1mA)
Between Opposite-pole contacts
1500VAC/1min(leakage current 1mA)
Between contacts and coil
2500VAC/1min(leakage current 1mA)
Insulation resistance
≥500mΩ(500VDC)
Ambient temperature
-25℃ ~55℃
Ambient humidity
45%-75%RH
Atmospheric pressure
86-106KPa
Shock resistance
10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance
10-55Hz (double amplitude: 1.0mm)
Installation
SCREW
Packing
Inner box
Paper box(pcs)
1
Foam box(pcs)
/
Outer box
Paper box(pcs)
80
Foam box(pcs)
/
Dimension of the carton
Paper box(pcs)
370*275*330MM
Foam box(pcs)
/
Weight
1PC
Approximate 210g
1 CTN
G.W:17KG N.W:16KG
