power relay HHC71A1(JQX-12F)

China power relay HHC71A1(JQX-12F) supplier
power relay HHC71A1(JQX-12F) supplier power relay HHC71A1(JQX-12F) supplier

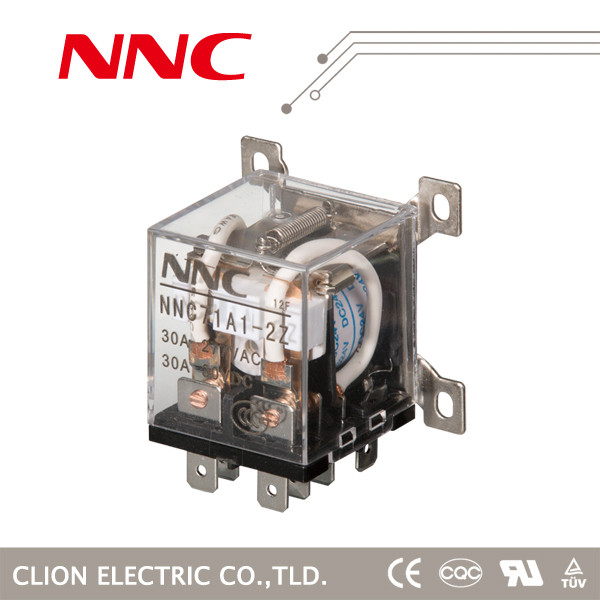

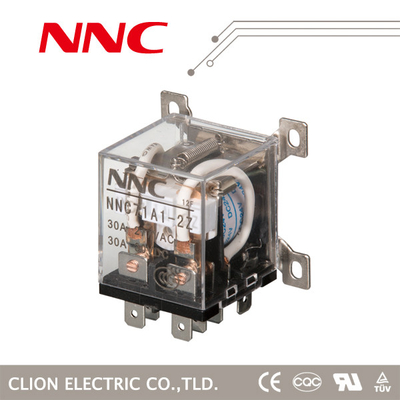

Large Image :  power relay HHC71A1(JQX-12F)

Product Details:

Place of Origin: China
Brand Name: clion
Certification: CE
Model Number: HHC71A1(JQX-12F)
Contact Now
Detailed Product Description

https://clion.en.alibaba.com/product/60632014404-804346879/NNC_Power_Relay_HHC71A1_JQX_12F_electromagnetic_relay.html?spm=a2700.8304367.0.0.C4MLvb

Part NO.
HHC71A1(JQX-12F)
Dimension
48*45.8*38.5
Contact Feature
Form
1A,1B,1C
2A,2B,2C
Rated load
30A/240VAC 28VDC
Contact resistance
≤100mΩ
Material
Silver Alloy
Electrical life
≥1*105
Mechanical life
≥1*107
Operate voltage (25℃)
DC:≤75%*Rated voltage
AC:≤80%*Rated voltage
Release voltage (25℃)
DC:≥10%*Rated voltage
AC:≥30%*Rated voltage
Maximum voltage (25℃)
110%*Rated voltage
Normal coil voltage
DC
6-220V
AC
6-380V
Normal coil power
DC
2.0W
AC
4VA
Pick-up time(Rated voltage)
≤30ms
Release time(Rated voltage)
≤20ms
Dielectric strength
Between Same-pole contacts
1500VAC/1min(leakage current 1mA)
Between Opposite-pole contacts
1500VAC/1min(leakage current 1mA)
Between contacts and coil
2500VAC/1min(leakage current 1mA)
Insulation resistance
≥500mΩ(500VDC)
Ambient temperature
-25℃ ~55℃
Ambient humidity
45%-75%RH
Atmospheric pressure
86-106KPa
Shock resistance
10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance
10-55Hz (double amplitude: 1.0mm)
Installation
PCB,SCREW
Packing
Inner box
Paper box(pcs)
/
Foam box(pcs)
10
Outer box
Paper box(pcs)
/
Foam box(pcs)
150
Dimension of the carton
Paper box(pcs)
/
Foam box(pcs)
400*265*345MM
Weight
1PC
Approximate 70g
1CTN
G.W:11.5KG N.W:10.5KG
