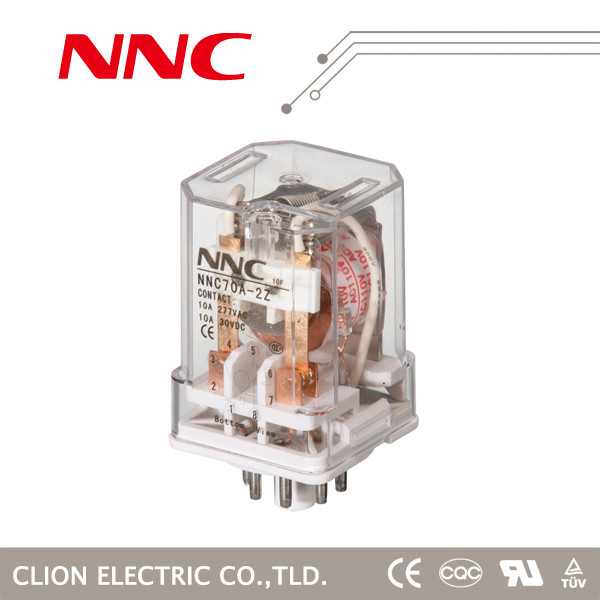

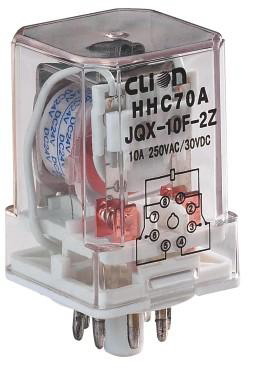

power relay HHC70A-2Z(JQX-10F,JTX-2Z)

power relay HHC70A-2Z(JQX-10F,JTX-2Z)
Features Gallery Product Description Request A Quote
Features
Specifications
Theory: Electromagnetic Relay
Usage: General Purpose
Size: Miniature
Protect Feature: Sealed
Contact Load: Low Power
Highlight:

power relay

,

electromagnetic relay
Basic Infomation
Place of Origin: China
Brand Name: clion
Certification: CE, CQC
Model Number: HHC70A(JQX-10F,JTX)
Payment & Shipping Terms
Product Description

https://clion.en.alibaba.com/product/60603328107-804346879/NNC_Clion_power_relay_HHC70A_2Z_10F_jtx_10f_24v_relay_UL_hot_selling_products.html?spm=a2700.8304367.0.0.LqHhUN

Part NO.
HHC70A(JQX-10F,JTX))
Dimension
35*35*52.5
Contact Feature
Form
2A,2B,2C

Rated load
10A/240VAC 28VDC
Contact resistance
≤100mΩ
Material
Silver Alloy
Electrical life
≥1*105
Mechanical life
≥1*107
Operate voltage (25℃)
DC:≤75%*Rated voltage
AC:≤80%*Rated voltage
Release voltage (25℃)
DC:≥10%*Rated voltage
AC:≥30%*Rated voltage
Maximum voltage (25℃)
110%*Rated voltage
Normal coil voltage
DC
6-220V
AC
6-380V
Normal coil power
DC
1.8W
AC
2.7VA
Pick-up time(Rated voltage)
≤30ms
Release time(Rated voltage)
≤20ms
Dielectric strength
Between Same-pole contacts
1000VAC/1min(leakage current 1mA)
Between Opposite-pole contacts
1500VAC/1min(leakage current 1mA)
Between contacts and coil
1500VAC/1min(leakage current 1mA)
Insulation resistance
≥500mΩ(500VDC)
Ambient temperature
-25℃ ～55℃
Ambient humidity
45%-75%RH
Atmospheric pressure
86-106KPa
Shock resistance
10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance
10-55Hz (double amplitude: 1.0mm)
Installation
SOCKET
Packing
Inner box
Paper box(pcs)
10
Foam box(pcs)
20
Outer box
Paper box(pcs)
200
Foam box(pcs)
200
Dimension of the carton
Paper box(pcs)
395*198*318MM
Foam box(pcs)
375*240*480MM
Weight
1PC
Approximate 75g
1CTN
G.W:16KG N.W:15KG
