power relay HHC71-4(JQX-78F)

China power relay HHC71-4(JQX-78F) supplier
power relay HHC71-4(JQX-78F) supplier power relay HHC71-4(JQX-78F) supplier

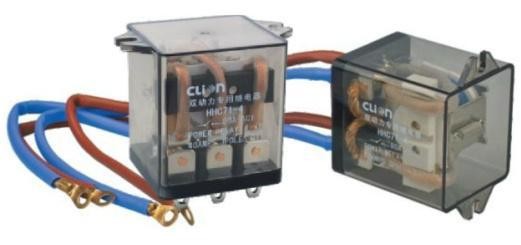

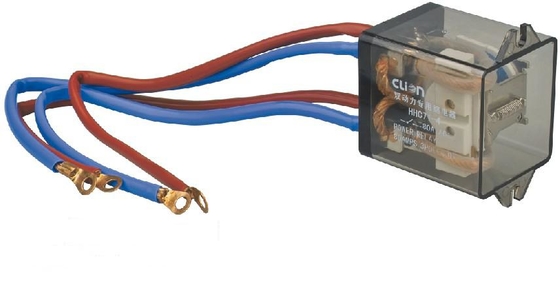

Large Image :  power relay HHC71-4(JQX-78F)

Product Details:

Place of Origin: China
Brand Name: clion
Certification: CE, CQC
Model Number: HHC71-4(JQX-78F)

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Get Latest Price
Packaging Details: Export packing
Delivery Time: 30 days
Payment Terms: TT
Contact Now
Detailed Product Description



Part NO.
HHC71-4(JQX-78F)
Dimension
81*53.5*67.5
Contact Feature
Form
2A,2B,2C
3A,3B,3C
Rated load
60A/250VAC 28VDC
Contact resistance
≤100mΩ
Material
Silver Alloy
Electrical life
≥1*105
Mechanical life
≥1*107
Operate voltage (25℃)
DC:≤75%*Rated voltage
AC:≤80%*Rated voltage
Release voltage (25℃)
DC:≥10%*Rated voltage
AC:≥30%*Rated voltage
Maximum voltage (25℃)
110%*Rated voltage
Normal coil voltage
DC
6-220V
AC
6-380V
Normal coil power
DC
3.6W
AC
10.5VA
Pick-up time(Rated voltage)
≤25ms
Release time(Rated voltage)
≤15ms
Dielectric strength
Between Same-pole contacts
1500VAC/1min(leakage current 1mA)
Between Opposite-pole contacts
1500VAC/1min(leakage current 1mA)
Between contacts and coil
2500VAC/1min(leakage current 1mA)
Insulation resistance
≥500mΩ(500VDC)
Ambient temperature
-25℃ ~55℃
Ambient humidity
45%-75%RH
Atmospheric pressure
86-106KPa
Shock resistance
10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance
10-55Hz (double amplitude: 1.0mm)
Installation
SCREW
Packing
Inner box
Paper box(pcs)
/
Foam box(pcs)
6
Outer box
Paper box(pcs)
/
Foam box(pcs)
60
Dimension of the carton
Paper box(pcs)
/
Foam box(pcs)
402*288*370MM
Weight
1PC
Approximate 260g
1 CTN
G.W:10KG N.W:9KG
