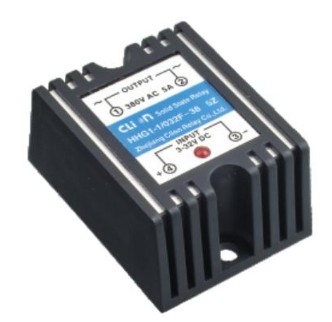

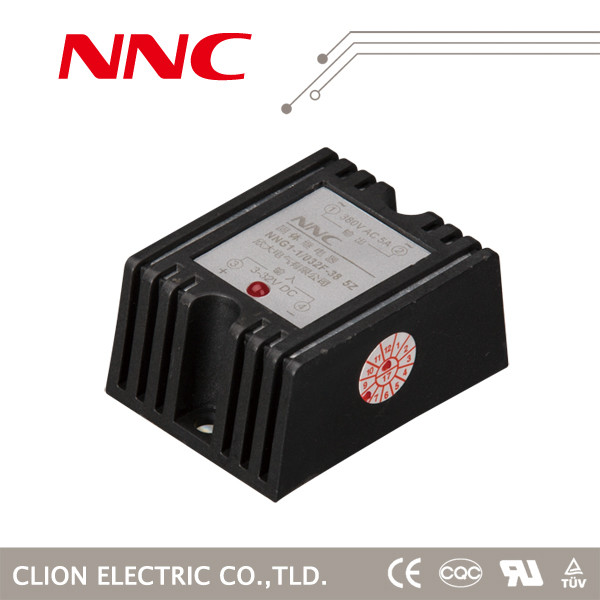

Miniature Double-parallel PCB SSR 5A

Miniature Double-parallel PCB SSR 5A
Features Gallery Product Description Request A Quote
Features
Specifications
Highlight:

Solid State Relay

,

miniature PCB SSR

,

CE certification
Basic Infomation
Place of Origin: China
Brand Name: Clion
Certification: CE
Model Number: Miniature Double-parallel PCB SSR 5A
Payment & Shipping Terms
Product Description

Part NO.
HHG1-1/032F-22、38 5A
HHG1-0/032F-06、20 5A
　
DC---AC
DC---DC
Description
Miniature Double-parallel PCB SSR
Miniature Double-parallel PCB SSR
Control Voltage
014:3-14VDC 032:3-32VDC
014:3-14VDC 032:3-32VDC
Control Current
6-35mA
6-35mA
Turn-on Voltage
3VDC
3VDC
Turn-off Voltage
1VDC
1VDC
Reverse Voltage
32VDC
32VDC
Load Voltage
22:30-240VAC,38:40-440VAC
06:12-60VDC,11:12-110VDC,20:12-250VDC
Load Current
5A
5A
Transient Voltage
22:600VAC,38:900VAC
06:100VDC,11:110VDC,20:250VDC
On-state Voltage Drop
＜1.6VAC
＜1.2VDC
ON-OFF Time
≤10mS
≤5mS
Off-state Leakage Current
≤10mA
≤5mA
Dielectrics Voltage-resistance
≥1500VAC
≥1500VAC
Insulation Resistance
500MΩ 500VDC testing
500MΩ 500VDC testing
Ambient temperature
-30～80℃
-30～80℃
Dimensions
43L*31W*20H
43L*31W*20H
Indicated Methods
LED
LED
Installation
PCB
PCB
Packing
Inner Box (PCS)
10/Foam board
Outer CTN (PCS)
300
CTN Size
380*215*175mm
Weight
about 42g/pcs G.W:14.5kg N.W:13.5kg
Radiator
/
Remarks
1.Load current＞10A ,a radiator is necessary,Load current＞80A, fan is necessary.
2.When controlling inductive load, a varistor is necessary and its voltage could be
