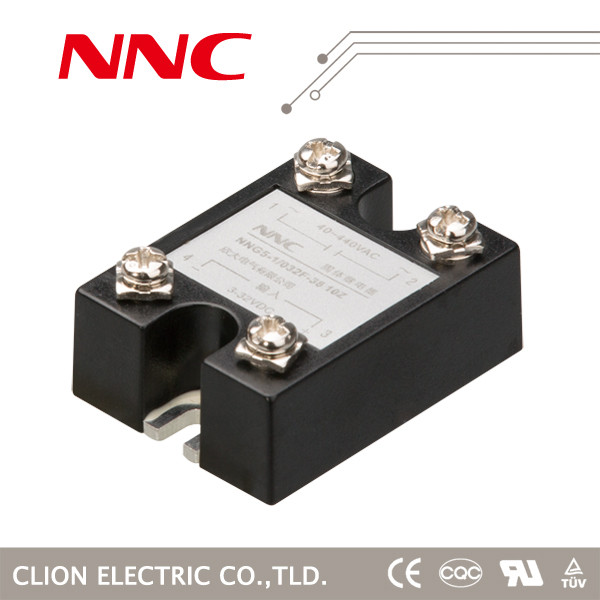

HHG5 Single-phase SSR

China HHG5 Single-phase SSR supplier
HHG5 Single-phase SSR supplier HHG5 Single-phase SSR supplier

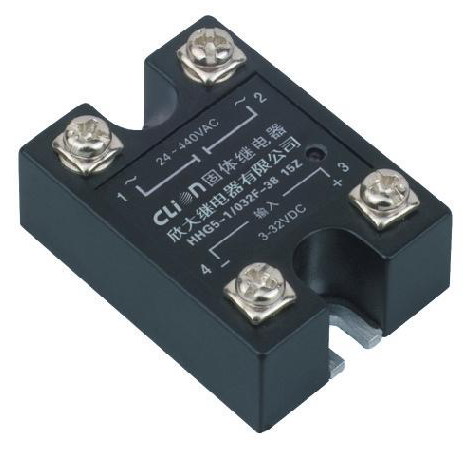

Large Image :  HHG5 Single-phase SSR

Product Details:

Place of Origin: China
Brand Name: Clion
Certification: CE
Model Number: HHG5 Single-phase SSR
Contact Now
Detailed Product Description

Part NO.
HHG5-1/032F-22、38 5-15A
HHG5-1/032F-38、120 60-120A

DC---AC
DC---AC
Description
Mini Single-phase SSR
Single-phase Thyristor Antiparallel SSR
Control Voltage
014:3-14VDC 032:3-32VDC
014:3-14VDC 032:3-32VDC
Control Current
6-35mA
6-25mA
Turn-on Voltage
3VDC
3VDC
Turn-off Voltage
1VDC
1VDC
Reverse Voltage
32VDC
32VDC
Load Voltage
22:30-240VAC,38:40-440VAC
38:40-440VAC,120:40-1200VAC
Load Current
5A,10A,15A
60A,80A,100A,120A
Transient Voltage
22:600VAC,38:900VAC
38:900VAC,120:1600VAC
On-state Voltage Drop
<1.6VAC
<1.6VAC
ON-OFF Time
≤10mS
≤10mS
Off-state Leakage Current
≤10mA
≤10mA
Dielectrics Voltage-resistance
≥2500VAC
≥2500VAC
Insulation Resistance
500MΩ 500VDC testing
500MΩ 500VDC testing
Ambient temperature
-30~80℃
-30~80℃
Dimensions
38.5L*28.7W*18H
57.2L*43.5W*29H
Indicated Methods
LED
LED
Installation
Screw fixing
Screw fixing
Packing
Inner Box (PCS)
10pcs/foam board
1PCS/small box,10pcs/paper box
Outer CTN (PCS)
300
100
CTN Size
380*215*175mm
380*215*175mm
Weight
30g/pcs, G.W:10KG N.W:9KG
140g/PCS GG.W:15KG N.W:14KG
Radiator

HH060,HH061,HH062,HH063
Remarks
1.Load current>10A ,a radiator is necessary,Load current>80A, fan is necessary.
2.When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage
