CAG6-1 Series Single-phase SSR

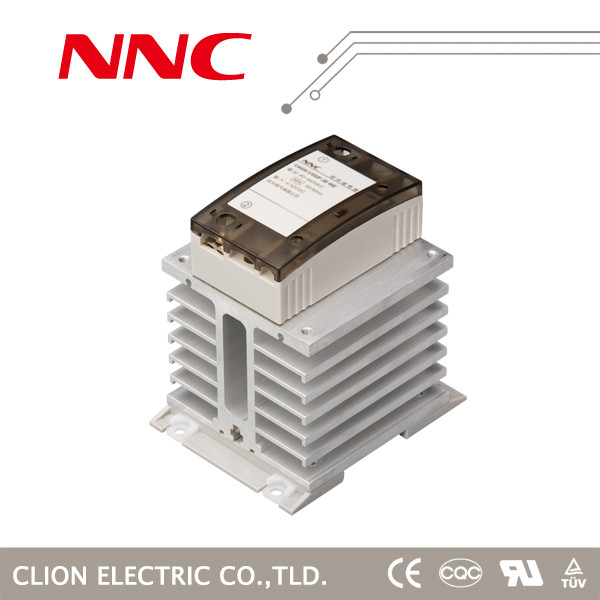

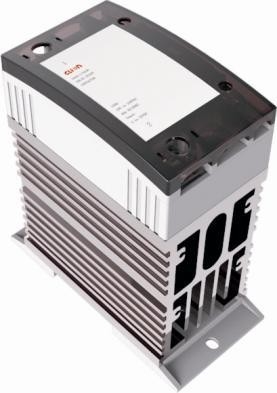

Large Image : CAG6-1 Series Single-phase SSR

Product Details:

Place of Origin:	China
Brand Name:	clion
Model Number:	CAG6-1/032F-38 40A CAG6-1/250F-38 40A

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Get Latest Price
Packaging Details:	Export packing
Payment Terms:	TT

Contact Now

Detailed Product Description

Theory:	Solid State Relay	Contact Load:	High Power

https://clion.en.alibaba.com/product/60622774079-804655096/hot_selling_NNC_Clion_solid_state_relay_CAG6_1_032F_10_80A_with_heat_sink_Din_rail_mounting.html?spm=a2700.8304367.0.0.BSX7iS

Dimension: 100mm*48mm*107mm Model

CAG6-1/032F-38 40A Single phase SSR( Input DC, Output AC )

CAG6-1/250F-38 40A Single phase SSR( Input AC, Output AC )

Control voltage: 032: 3-32VDC

250: 90-250VAC

Control current: 5-20mA

5-20mA

Turn-on voltage: 4VDC

90VAC

Turn-off voltage: 2VDC

10VAC

Reverse voltage: 32VDC

Indicate methods: LED with red and green colour Installation

35mm DIN Rail Packing

Inner box

1 PCS/Small paper box, 10 PCS/Paper box Outer box 18 PCS CTN size

380mm*215mm*175mm Weight

10A≈388g, 1CTN/100PCS G.W: 8KG, N.W: 7KG, 40A≈438g, 1CTN/100PCS G.W: 9KG, N.W: 8KG, 80A≈458g, 1CTN/100PCS G.W: 9.5KG, N.W:8.5KG
