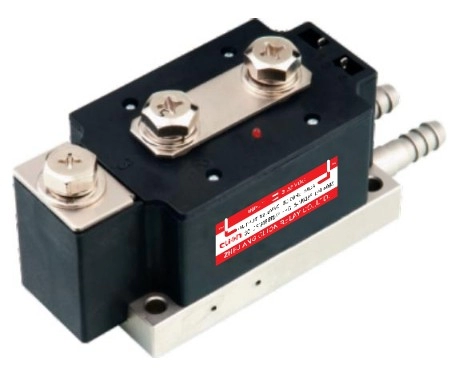

HHG1S Single-phase Indusreial SSR

China HHG1S Single-phase Indusreial SSR supplier

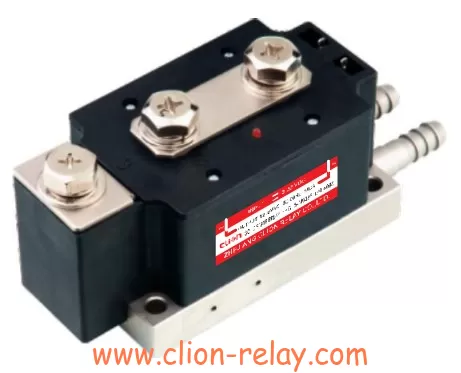

Large Image :  HHG1S Single-phase Indusreial SSR

Product Details:

Place of Origin: China
Brand Name: Clion
Certification: CE
Model Number: HHG1S Single-phase Indusreial SSR
Contact Now
Detailed Product Description

Part NO.
HHG1S-1/032F-120 500-800A(SSR-DA) Water-cooled

DC---AC
Description
Single-phase Industrial SSR
Control Voltage
014:3-14VDC 032:3-32VDC
Control Current
5-25mA
Turn-on Voltage
3VDC
Turn-off Voltage
1VDC
Reverse Voltage
32VDC
Load Voltage
120:60-1200VAC
Load Current
500A,600A,800A
Transient Voltage
120:1600VAC
On-state Voltage Drop
<1.6VAC
ON-OFF Time
≤10mS
Off-state Leakage Current
≤10mA
Dielectrics Voltage-resistance
≥2500VAC
Insulation Resistance
500MΩ 500VDC testing
Ambient temperature
-30~80℃
Dimensions
160L*63W*72H
Indicated Methods
LED
Installation
Screw fixing
Packing
Inner Box (PCS)
1
Outer CTN (PCS)
60
CTN Size
380*215*175mm
Weight
Approximate 1800g/pcs
Radiator
Water-cooled
Remarks
1.Load current>10A ,a radiator is necessary,Load current>80A, fan is necessary.
2.When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage
