Power relay HHC71C1(JQX-40 30A)

China Power relay HHC71C1(JQX-40 30A) supplier

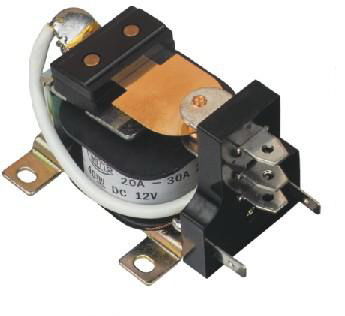

Large Image :  Power relay HHC71C1(JQX-40 30A)

Product Details:

Place of Origin: China
Brand Name: clion
Certification: CE
Model Number: HHC71C1(JQX-40 30A)
Contact Now
Detailed Product Description
High Light:

power relay

,

electromagnetic relay

,

CE certification

Part NO.
HHC71C1(JQX-40 30A)
Dimension
60*45*46
Contact Feature
Form
1A,1B,1C
Rated load
30A
Max switching voltage
250VAC/28VDC
Contact resistance
≤100mΩ
Material
Silver Alloy
Electrical life
≥1*105
Mechanical life
≥1*107
Operate voltage (25℃)
DC:≤75%*Rated voltage
/
Release voltage (25℃)
DC:≥10%*Rated voltage
/
Maximum voltage (25℃)
110%*Rated voltage
Normal coil voltage
DC
6-220V
AC
/
Normal coil power
DC
2.6W
AC
/
Pick-up time(Rated voltage)
≤30ms
Release time(Rated voltage)
≤20ms
Dielectric strength
Between Same-pole contacts
1500VAC/1min(leakage current 1mA)
Between Opposite-pole contacts
/
Between contacts and coil
2500VAC/1min(leakage current 1mA)
Insulation resistance
≥500mΩ(500VDC)
Ambient temperature
-25℃ ~55℃
Ambient humidity
25%-75%RH
Atmospheric pressure
86-106KPa
Shock resistance
10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance
10-55Hz (double amplitude: 1.0mm)
Installation
SCREW
Packing
Inner box
Paper box(pcs)
/
Foam box(pcs)
10
Outer box
Paper box(pcs)
/
Foam box(pcs)
100
Dimension of the carton
Paper box(pcs)
/
Foam box(pcs)
402*288*370MM
Weight
1PC
Approximate 160g
1CTN
G.W:17KG N.W:16KG
