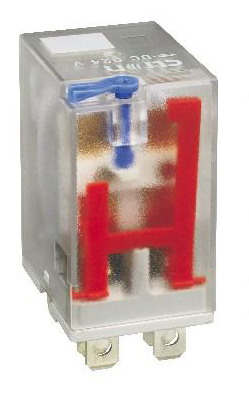

Name: general purpose relay HHC68AZ(JQX-13FZ)
Brand: CLION ELECTRIC CO.,LTD
SKU: HHC68AZ(JQX-13FZ)
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Highlight:

general purpose relay

HHC68AZ(JQX-13FZ)

Basic Infomation

Place of Origin: China

Brand Name: clion

Certification: CE, CQC,UL

Model Number: HHC68AZ(JQX-13FZ)

Payment & Shipping Terms

Product Description

Part NO.			HHC68AZ(JQX-13FZ)
Dimension			*2821.536*
Contact Feature	Form		2A,2B,2C
	Rated load		10A/240VAC 28VDC
	Contact resistance		≤100mΩ
	Material		Silver Alloy
	Electrical life		*≥110⁵**
	Mechanical life		*≥110⁷**
Operate voltage (23℃)			*DC:≤75%Rated voltage**
			*AC:≤80%Rated voltage**
Release voltage (23℃)			*DC:≥10%Rated voltage**
			*AC:≥30%Rated voltage**
Maximum voltage (23℃)			*110%Rated voltage**
Normal coil voltage		DC	6-220V
		AC	6-380V
Normal coil power		DC	0.9W
		AC	1.2VA
Pick-up time			≤20ms
Release time			≤20ms
Dielectric strength	Between Same-pole contacts		1000VAC/1min(leakage current 1mA)
	Between Opposite-pole contacts		1500VAC/1min(leakage current 1mA)
	Between contacts and coil		1500VAC/1min(leakage current 1mA)
Insulation resistance			≥100mΩ(500VDC)
Ambient temperature			-25℃ ～55℃
Ambient humidity			45%-75%RH
Atmospheric pressure			86-106KPa
Shock resistance			10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance			10-55Hz (double amplitude: 1.0mm)
Installation			PCB,SOCKET
