general purpose relay HHC68A(JQX-13F) , LY2, LY3,LY4 , 10A ,dpdt electromagnetic relay manufacturer

China general purpose relay HHC68A(JQX-13F) , LY2, LY3,LY4 , 10A ,dpdt electromagnetic relay manufacturer supplier

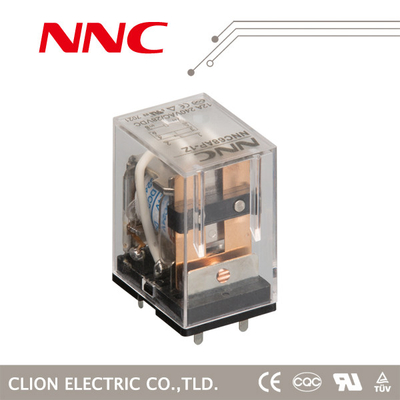

Large Image :  general purpose relay HHC68A(JQX-13F) , LY2, LY3,LY4 , 10A ,dpdt electromagnetic relay manufacturer

Product Details:

Place of Origin: China
Brand Name: CLION, NNC
Certification: CE, CQC,UL
Model Number: HHC68A(JQX-13F)

Payment & Shipping Terms:

Minimum Order Quantity: 5000
Price: Get Latest Price
Packaging Details: Export packing
Delivery Time: 30 days
Payment Terms: TT
Supply Ability: 50000PCS/per month
Detailed Product Description
Contact Material: Sillver Alloy Current: 10A
Name: Electromagnetic Relay Certification: CE, UL, TUV, CQC

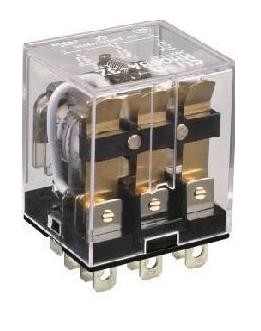

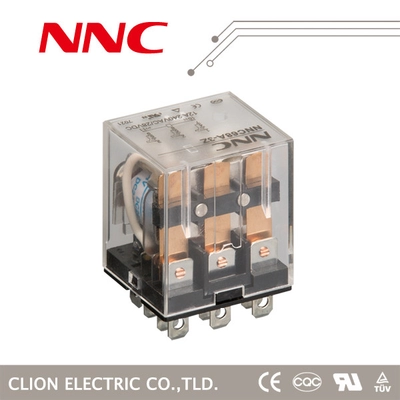

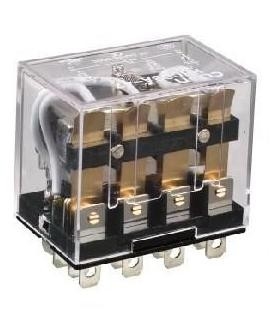

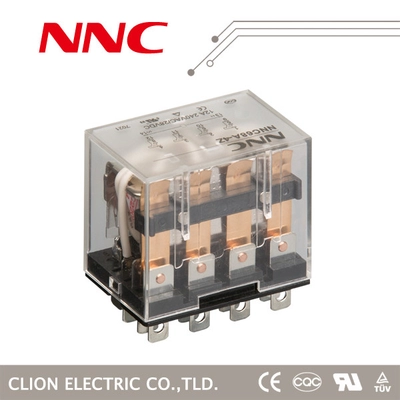

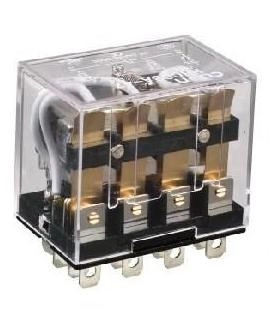

general purpose relay HHC68A(JQX-13F) , LY2, LY3,LY4 , 10A ,dpdt electromagnetic relay manufacturer

general purpose relay HHC68A(JQX-13F) , LY2, LY3,LY4 , 10A ,dpdt electromagnetic relay manufacturer

general purpose relay HHC68A(JQX-13F) , LY2, LY3,LY4 , 10A ,dpdt electromagnetic relay manufacturer

Part NO.
HHC68A(JQX-13F)
Dimension
28*21*36
28*21*36
28*31*36
28*41*36
Contact Feature
Form
1A,1B,1C
2A,2B,2C
3A,3B,3C
4A,4B,4C
Rated load
15A/240VAC 28VDC
10A/240VAC 28VDC
Contact resistance
≤100mΩ
Material
Silver Alloy
Electrical life
≥1*105
Mechanical life
≥1*107
Operate voltage (23℃)
DC:≤75%*Rated voltage
AC:≤80%*Rated voltage
Release voltage (23℃)
DC:≥10%*Rated voltage
AC:≥30%*Rated voltage
Maximum voltage (23℃)
110%*Rated voltage
Normal coil voltage
DC
6-220V
AC
6-380V
Normal coil power
DC
0.9W
0.9W
1.4W
1.5W
AC
1.2VA
1.2VA
2.0VA
2.5VA
Pick-up time
≤20ms
Release time
≤20ms
Dielectric strength
Between Same-pole contacts
1000VAC/1min(leakage current 1mA)
Between Opposite-pole contacts
1500VAC/1min(leakage current 1mA)
Between contacts and coil
1500VAC/1min(leakage current 1mA)
Insulation resistance
≥100mΩ(500VDC)
Ambient temperature
-25℃ ~55℃
Ambient humidity
45%-75%RH
Atmospheric pressure
86-106KPa
Shock resistance
10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance
10-55Hz (double amplitude: 1.0mm)
Installation
PCB,SOCKET,SCREW
