LAN38 Series Push Button Switch

China LAN38 Series Push Button Switch supplier

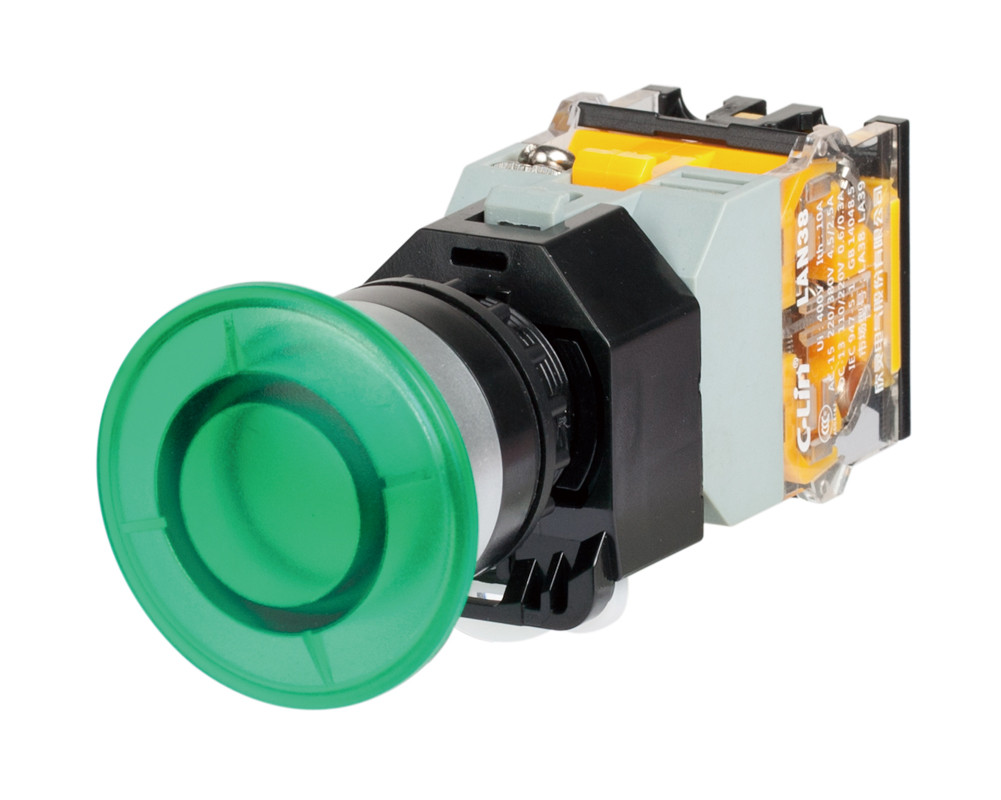

Large Image :  LAN38 Series Push Button Switch

Product Details:

Place of Origin: China
Brand Name: Clin
Certification: CE
Model Number: LAN38-22D-11MD

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Get Latest Price
Packaging Details: Export packing
Delivery Time: 30 days
Payment Terms: TT
Detailed Product Description



Model LAN38-22D-11MD;   LAN38-22D-11MTD
Description   LAN38-22D-11MD: Mushroom  head  pushbutton  switch  with  pilot  light
LAN38-22D-11MTD: Latching  mushroom  head  pushbutton  switch  with  pilot  light
Power  frequency  withstand  voltage 2.5kV  1min
Mechanical  life equal  to  or  greater  than  3*106
Electrical  life equal  to  or  greater  than  60*104
Rated  thermal  current lth  10A
Rated  insulation  voltage Ui  AC660V
Contact  capacity AC-15  220V/6A  380V/4A  660V/2A
DC-13  24V/6A  48V/3A  110V/1A  220V/0.5A  440V/0.25A
Mounting  dimension 22.3mm(diameter)
Ambient  temperature minus  25  centigrade  to  55  centigrade
Protection  grade IP65
Contact  resistance Silver  alloy  contact:   less  than  or  equal  to  50mΩ
Colors  available red,   green,   yellow,   blue,   white
