general purpose relay HHC68B(HH52P,HH53P,HH54P)

China general purpose relay HHC68B(HH52P,HH53P,HH54P) supplier
general purpose relay HHC68B(HH52P,HH53P,HH54P) supplier general purpose relay HHC68B(HH52P,HH53P,HH54P) supplier general purpose relay HHC68B(HH52P,HH53P,HH54P) supplier general purpose relay HHC68B(HH52P,HH53P,HH54P) supplier general purpose relay HHC68B(HH52P,HH53P,HH54P) supplier

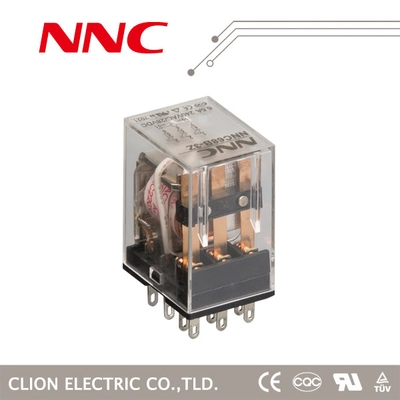

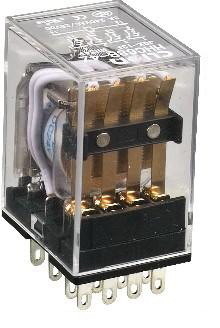

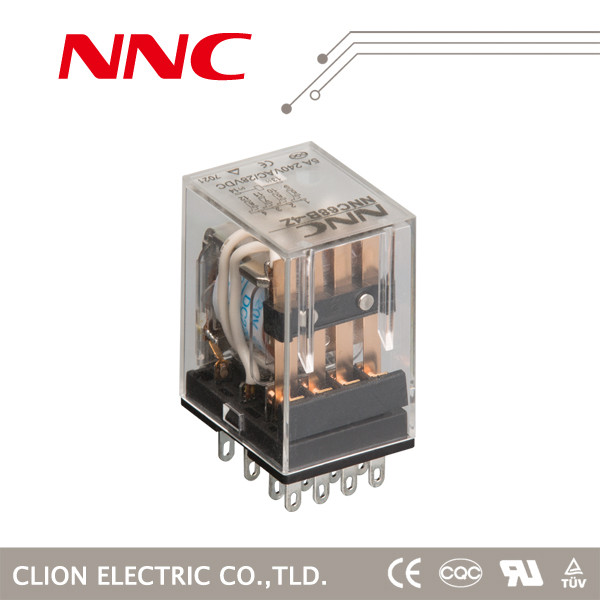

Large Image :  general purpose relay HHC68B(HH52P,HH53P,HH54P)

Product Details:

Place of Origin: China
Brand Name: NNC, CLION
Certification: CE, CQC,UL
Model Number: HHC68B(HH52P,HH53P,HH54P)

Payment & Shipping Terms:

Minimum Order Quantity: 5000PCS
Price: Get Latest Price
Packaging Details: Export packing
Delivery Time: 10-30 days
Payment Terms: TT
Supply Ability: 100,000 pieces per month
Minimum Order Quantity: 5000 pieces
Port: SHANGHAI&NINGBO
Protect Feature: Sealed
Usage: General Purpose
Size: Miniature
Theory: Electromagnetic Relay
Category: Relays
Contact Now
Detailed Product Description

Part NO.
HHC68B(HH52P,HH53P,HH54P)
Dimension
27*21*35
Contact Feature
Form
2A,2B,2C
3A,3B,3C
4A,4B,4C
Rated load
5A/240VAC 28VDC
3A/240VAC 28VDC
Contact resistance
≤100mΩ
Material
Silver Alloy
Electrical life
≥1*105
Mechanical life
≥1*107
Operate voltage (23℃)
DC:≤75%*Rated voltage
AC:≤80%*Rated voltage
Release voltage (23℃)
DC:≥10%*Rated voltage
AC:≥30%*Rated voltage
Maximum voltage (23℃)
110%*Rated voltage
Normal coil voltage
DC
3-220V
AC
3-380V
Normal coil power
DC
0.9W
AC
1.2VA
Pick-up time
≤15ms
Release time
≤10ms
Dielectric strength
Between Same-pole contacts
1000VAC/1min(leakage current 1mA)
Between Opposite-pole contacts
1000VAC/1min(leakage current 1mA)
Between contacts and coil
1500VAC/1min(leakage current 1mA)
Insulation resistance
≥100mΩ(500VDC)
Ambient temperature
-25℃ ~55℃
Ambient humidity
45%-75%RH
Atmospheric pressure
86-106KPa
Shock resistance
10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance
10-55Hz (double amplitude: 1.0mm)
Installation
PCB,SOCKET
Packing
Inner box
Paper box(pcs)
20
Foam box(pcs)
50
Outer box
Paper box(pcs)
600
Foam box(pcs)
500
Dimension of the carton
600PCS CTN
330*310*345MM
500PCS CTN
440*310*345MM
Weight
1PC
Approximate 35g
600PCS CTN
G.W:22KG N.W:21KG
500PCS CTN
G.W:19KG N.W:18KG
