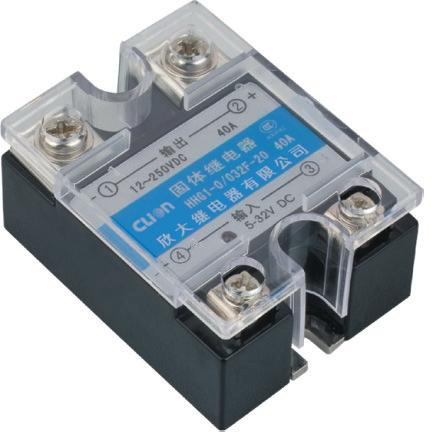

HHG1 Single-phase SSR DC

China HHG1 Single-phase SSR DC supplier
HHG1 Single-phase SSR DC supplier HHG1 Single-phase SSR DC supplier

Large Image :  HHG1 Single-phase SSR DC

Product Details:

Place of Origin: China
Brand Name: clion
Certification: CE
Model Number: HHG1 Single-phase SSR DC
Contact Now
Detailed Product Description

Part NO.
HHG1-0/032F-20 10-40A

DC---DC
Description
Single-phase SSR
Control Voltage
032:5-32VDC
Control Current
6-25mA
Turn-on Voltage
5VDC
Turn-off Voltage
1VDC
Reverse Voltage
32VDC
Load Voltage
20:12-250VDC
Load Current
10A,15A,20A,25A,30A,40A
Transient Voltage
20:400VDC
On-state Voltage Drop
<1.2VDC
ON-OFF Time
≤5mS
Off-state Leakage Current
≤5mA
Dielectrics Voltage-resistance
≥2500VAC
Insulation Resistance
500MΩ 500VDC testing
Ambient temperature
-30~80℃
Dimensions
57.2L*43.5W*29H
Indicated Methods
LED
Installation
Screw fixing
Packing
Inner Box (PCS)
1PCS/small box,10pcs/1 inner box
Outer CTN (PCS)
100
CTN Size
380*215*175mm
Weight
10A≤110g/PCS G.W:12kg N.W:11kg
20A≤140g/PCS G.W:15kg N.W:14kg
40A≤145g/PCS G.W:15.5kg N.W:14.5kg
Radiator
HH060,HH061
Remarks
1.Load current>10A ,a radiator is necessary,Load current>80A, fan is necessary.
2.When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage
