HHG3E-1 Series Single Phase SSR

China HHG3E-1 Series Single Phase SSR supplier

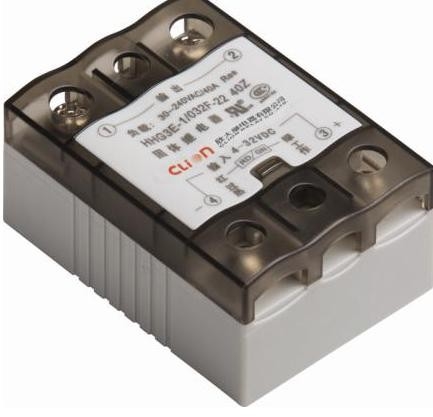

Large Image :  HHG3E-1 Series Single Phase SSR

Product Details:

Place of Origin: China
Brand Name: Clion
Model Number: HHG3E-1/032F-38 40A HHG3E-1/250F-38 40A

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Get Latest Price
Packaging Details: Export packing
Delivery Time: 30 days
Payment Terms: TT
Detailed Product Description
Theory: Solid State Relay

https://clion.en.alibaba.com/product/60666408041-804655096/NNC_Clion_solid_state_relay_HHG3E_1_032F_38_10_80A_New_Single_phase_SSR_DC_AC.html?spm=a2700.8304367.0.0.3Xev5i

Dimension:  67mm*48mm*32mm Model
HHG3E-1/032F-38 40A  Single phase SSR( Input DC, Output AC )
HHG3E-1/250F-38 40A   Single phase SSR( Input AC, Output AC )
Control voltage:  032: 3-32VDC
                              250: 90-250VAC
Control current
5-20mA
5-20mA
Turn-on voltage
4VDC
90VAC
Turn-off voltage
2VDC
10VAC
Reverse voltage
32VDC
/Load voltage
22:30-240VAC 38:40-440VAC
Load current: 10A, 15A, 20A, 25A, 30A, 40A, 60A, 80A
 Indicate methods:  LED with red and green colour Installation
Screw Remarks:
1. Load current>10A ,a radiator is necessary, Load current>80A, fan is necessary.
2. When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage Packing
Inner box
1 PCS/Small paper box, 10 PCS/Paper box Outer box
100 PCS CTN size
380mm*215mm*175mm
Weight
10A≈110g, 1CTN/100PCS G.W: 12KG, N.W: 11KG, 40A≈145g, 1CTN/100PCS G.W: 15.5KG, N.W: 14.5KG, 80A≈150g, 1CTN/100PCS G.W: 16KG, N.W:15KG
Radiator (Optional):
HH061
HH062
HH063
