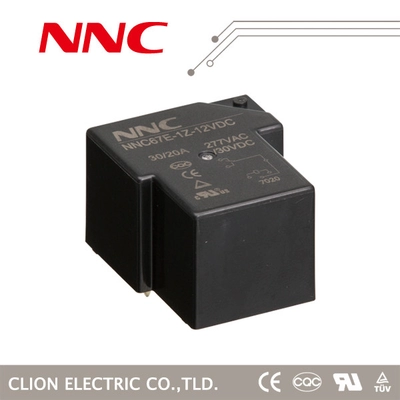

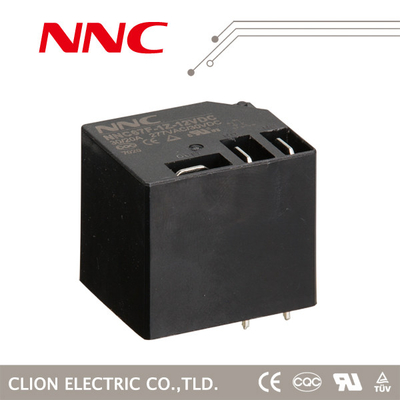

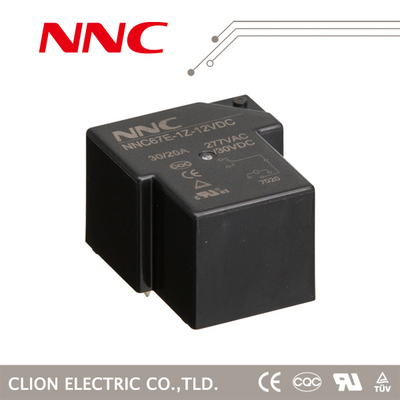

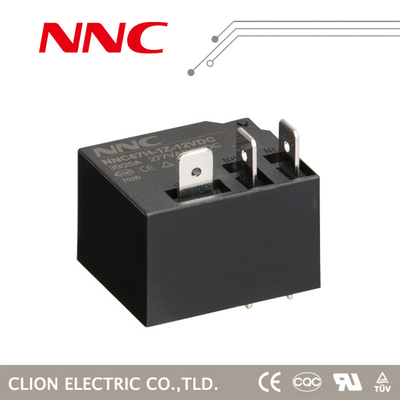

NNC miniature electromagnetic PCB Relay NNC67E T90 12v 24v voltage relay

5000
MOQ
Get Latest Price
Price
NNC miniature electromagnetic PCB Relay NNC67E T90 12v 24v voltage relay
Features Gallery Product Description Request A Quote
Features
Specifications
Theory: Electromagnetic Relay
Usage: PCB
Size: Miniature
Protect Feature: Sealed
Contact Load: Low Power
Highlight:

Mini relay

,

PCB relay

,

T series
Basic Infomation
Place of Origin: China
Brand Name: clion
Certification: CE, CQC,UL,TUV

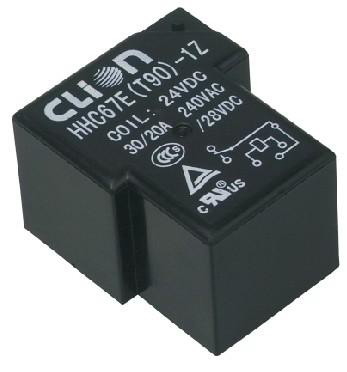

Model Number: HHC67E(T90)
Payment & Shipping Terms
Packaging Details: Export packing
Delivery Time: 15 days
Payment Terms: TT
Supply Ability: 500,000 pieces
Port: Shanghai&Ningbo
Product Description

https://clion.en.alibaba.com/product/60591018550-804149855/NNC_miniature_electromagnetic_PCB_Relay_NNC67E_T90_12v_24v_voltage_relay.html?spm=a2700.8304367.cunta628ec.4.2e0fa124COvMgm


Detailed Images

Related Products

NNC miniature electromagnetic PCB Relay NNC67E T90 12v 24v voltage relay 0



Product Description

 Model Description

NNC miniature electromagnetic PCB Relay NNC67E T90 12v 24v voltage relay 1



Specification

Part NO. NNC67E(T90)
Dimension 32.5*27.6*20.2
Contact Feature Form 1A,1B,1C
Rated load A:30A/240VAC 28VDC Z:20A/240VAC 28VDC A:40A/240VAC 28VDC Z:30A/240VAC 28VDC
Contact resistance ≤100mΩ
Material Silver Alloy
Electrical life ≥1*105
Mechanical life ≥1*107
Operate voltage (23℃) DC:≤75%*Rated voltage
AC:≤80%*Rated voltage
Release voltage (23℃) DC:≥10%*Rated voltage
AC:≥30%*Rated voltage
Maximum voltage (23℃) 110%*Rated voltage
Normal coil voltage DC 3-11OV
AC 6-220V
Normal coil power DC 0.93W
AC 1.2VA
Pick-up time ≤15ms
Release time ≤10ms
Dielectric strength Between Same-pole contacts 1500VAC/1min(leakage current 1mA)
Between Opposite-pole contacts
Between contacts and coil 1500VAC/1min(leakage current 1mA)
Insulation resistance ≥100mΩ(500VDC)
Ambient temperature -55℃ ~70℃
Ambient humidity 35%-80%RH
Atmospheric pressure 86-106KPa
Shock resistance 10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance 10-55Hz (double amplitude: 1.5mm)
Installation PCB
Packing Inner box Paper box(PCS) 50
Outer box Paper box(PCS) 500
Dimension of the carton CTN 360*210*325mm
Weight 1PC Approximate: 33g
1CTN G.W:16.7KG N.T:15.7KG


Wiring Diagram

 NNC miniature electromagnetic PCB Relay NNC67E T90 12v 24v voltage relay 2

Packaging & Shipping

 NNC miniature electromagnetic PCB Relay NNC67E T90 12v 24v voltage relay 3



 NNC miniature electromagnetic PCB Relay NNC67E T90 12v 24v voltage relay 4

Shipping

NNC miniature electromagnetic PCB Relay NNC67E T90 12v 24v voltage relay 5




Company Information

 NNC miniature electromagnetic PCB Relay NNC67E T90 12v 24v voltage relay 6

OUR PRODUCTS

NNC miniature electromagnetic PCB Relay NNC67E T90 12v 24v voltage relay 7

CERTIFICATION

NNC miniature electromagnetic PCB Relay NNC67E T90 12v 24v voltage relay 8



PRPDUCTION EQUIPMENT

NNC miniature electromagnetic PCB Relay NNC67E T90 12v 24v voltage relay 9

SHOW ROOM

NNC miniature electromagnetic PCB Relay NNC67E T90 12v 24v voltage relay 10

Exhibition

 NNC miniature electromagnetic PCB Relay NNC67E T90 12v 24v voltage relay 11



OUR TEAM

NNC miniature electromagnetic PCB Relay NNC67E T90 12v 24v voltage relay 12

FAQ

 1.How do you control the quality?

100% Auto inspection machine and manul testing together before packing.

2.What's your payment terms?

We usual accept 30% T/T payment in advance, and the balance payment before shipment,

Samples cost can be paid by west union ,because it's fast and convient.

3.Would you accept to USE our LOGO?

If you have good quality,we can make OEM and ODM,custiomized specification.

4.Can I get a sample for reference?

we are gald to send samples for your testing, but you need to pay the express cost.

5.What is your delivery time?

Usually, 1-3days for samples, 10-20 days for bulk goods.

6.What is your warranty time of the products?

One year from the shipment date,we will offer replacement if you receive the defective or wrong items.
