PCB relay ,HHC66A(T73)

China PCB relay ,HHC66A(T73) supplier

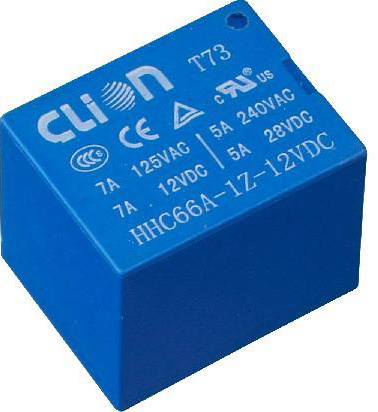

Large Image :  PCB relay ,HHC66A(T73)

Product Details:

Place of Origin: China
Brand Name: Clion
Certification: CE, CQC,UL,TUV
Model Number: HHC66A(T73)

Payment & Shipping Terms:

Price: Get Latest Price
Packaging Details: Export packing
Delivery Time: 15 days
Payment Terms: TT
Supply Ability: 500,000 pieces
Minimum Order Quantity: 50000 pieces
Port: SHANGHAI&NINGBO
Protect Feature: Sealed
Size: Miniature
Usage: PCB
Theory: Electromagnetic Relay
Category: relays
Detailed Product Description
Contact Load: Low Power

https://clion.en.alibaba.com/product/60617437201-804149855/NNC_miniature_PCB_Electromagnetic_relay_HHC66A_T73_sugar_cube_relay_5A_7A_10A_12V.html?spm=a2700.8304367.0.0.gjtptu

Part NO.
HHC66A(T73)
Dimension
19*15.5*16
Contact Feature
Form
1A,1B,1C
Rated load
5A/240VAC 28VDC
7A/250VAC 28VDC
10A/250VAC 28VDC
Contact resistance
≤100mΩ
Material
Silver Alloy
Electrical life
≥1*105
Mechanical life
≥1*107
Operate voltage (23℃)
DC:≤75%*Rated voltage
/
Release voltage (23℃)
DC:≥10%*Rated voltage
/
Maximum voltage (23℃)
110%*Rated voltage
Normal coil voltage
DC
3-48V
AC
/
Normal coil power
DC
0.36W(0.45W,0.54W)
AC
/
Pick-up time
≤10ms
Release time
≤5ms
Dielectric strength
Between Same-pole contacts
750VAC/1min(leakage current 1mA)
Between Opposite-pole contacts

Between contacts and coil
1500VAC/1min(leakage current 1mA)
Insulation resistance
≥100mΩ(500VDC)
Ambient temperature
-55℃ ~70℃
Ambient humidity
35%-80%RH
Atmospheric pressure
86-106KPa
Shock resistance
10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance
10-55Hz (double amplitude: 1.5mm)
Installation
PCB
Packing
Inner box
Plastic pipe
25PCS
Foam box
100PCS
Outer box
Plastic pipe
2000PCS
Foam box
1000PCS
Dimension of the carton
2000PCS CTN
420*235*230MM
1000PCS CTN
295*205*300MM
Weight
1PC
Approximate 10g
2000PCS CTN
G.W:21KG N.W:20KG
1000PCS CTN
G.W:10.5KG N.W:10KG
