Product Details:
Payment & Shipping Terms:
|
| Color: | White | Certification: | CE, UL TUV |
|---|---|---|---|
| Contact Material: | Sillver Alloy | Current: | 5A |
PRODUCT DETAIL
Related Products
Model Description
Specification

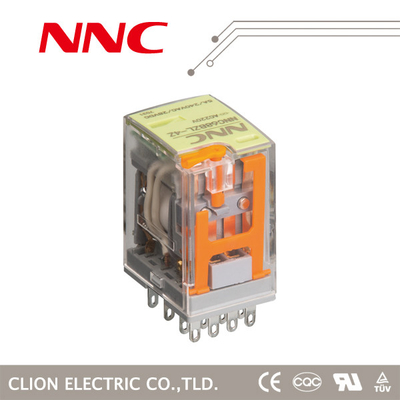

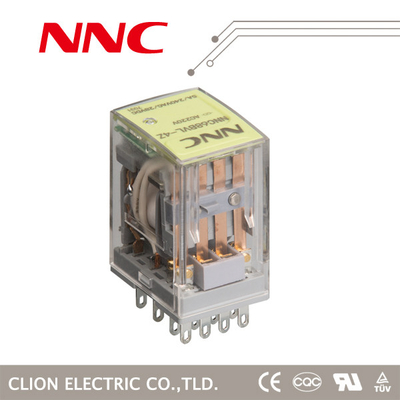

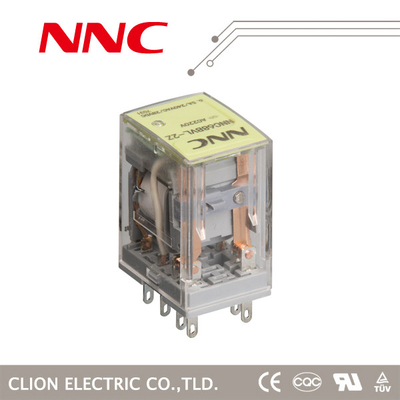

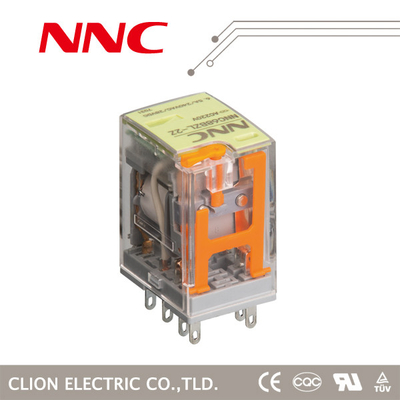

| Part NO. | NNC68BVL(HH52P, HH54P) | ||||
| Dimension | 27.3*21*36.2 | ||||
| Contact Feature | Form | 2A,2B,2C | 4A,4B,4C | ||
| Rated load |
6.5A/240VAC 28VDC 10A/240VAC 28VDC |
5A/240VAC 28VDC | |||
| Contact resistance | ≤100mΩ | ||||
| Material | Silver Alloy | ||||
| Electrical life |
≥1*105
|
||||
| Mechanical life |
≥1*107
|
||||
| Operate voltage (23℃) | DC:≤75%*Rated voltage | ||||
| AC:≤80%*Rated voltage | |||||
| Release voltage (23℃) | DC:≥10%*Rated voltage | ||||
| AC:≥30%*Rated voltage | |||||
| Maximum voltage (23℃) | 110%*Rated voltage | ||||
| Normal coil voltage | DC | 3-220V | |||
| AC | 3-380V | ||||
| Normal coil power | DC | 0.9W | |||
| AC | 1.2VA | ||||
| Pick-up time | ≤15ms | ||||
| Release time | ≤10ms | ||||
| Dielectric strength | Between Same-pole contacts | 1000VAC/1min(leakage current 1mA) | |||
| Between Opposite-pole contacts | 1000VAC/1min(leakage current 1mA) | ||||
| Between contacts and coil | 1500VAC/1min(leakage current 1mA) | ||||
| Insulation resistance | ≥100mΩ(500VDC) | ||||
| Ambient temperature | -25℃ ~55℃ | ||||
| Ambient humidity | 45%-75%RH | ||||
| Atmospheric pressure | 86-106KPa | ||||
| Shock resistance | 10G (sinusoidal half-wave pulse: 11ms) | ||||
| Vibration resistance | 10-55Hz (double amplitude: 1.0mm) | ||||
| Installation | PCB,SOCKET | ||||
| Packing | Inner box | Paper box(pcs) | 20 | ||
| Foam box(pcs) | 50 | ||||
| Outer box | Paper box(pcs) | 600 | |||
| Foam box(pcs) | 500 | ||||
| Dimension of the carton | 600PCS CTN | 330*310*345MM | |||
| 500PCS CTN | 440*310*345MM | ||||
| Weight | 1PC | Approximate 35g | |||
| 600PCS CTN | G.W:22KG N.W:21KG | ||||
| 500PCS CTN | G.W:19KG N.W:18KG | ||||
Shipping
OUR PRODUCTS
CERTIFICATION
PRPDUCTION EQUIPMENT
SHOW ROOM
OUR TEAM
1.How do you control the quality?
100% Auto inspection machine and manul testing together before packing.
2.What's your payment terms?
We usual accept 30% T/T payment in advance, and the balance payment before shipment,
Samples cost can be paid by west union ,because it's fast and convient.
3.Would you accept to USE our LOGO?
If you have good quality,we can make OEM and ODM,custiomized specification.
4.Can I get a sample for reference?
we are gald to send samples for your testing, but you need to pay the express cost.
5.What is your delivery time?
Usually, 1-3days for samples, 10-20 days for bulk goods.
6.What is your warranty time of the products?
One year from the shipment date,we will offer replacement if you receive the defective or wrong items.
