LX-K1 Series Limit Switch

China LX-K1 Series Limit Switch supplier

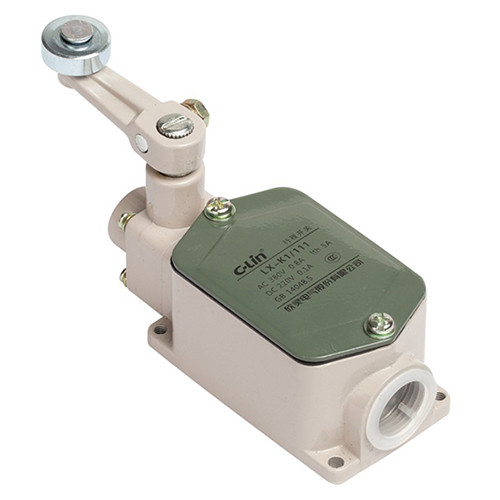

Large Image :  LX-K1 Series Limit Switch

Product Details:

Place of Origin: China
Brand Name: Clin
Certification: CE
Model Number: LX-K1 Series Limit Switch

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Get Latest Price
Packaging Details: Export packing
Delivery Time: 30 days
Payment Terms: TT
Detailed Product Description

Operating speed:0.5mm~0.5m/s
Operating frequency:Mechanical: 120 operations/minute
             Electrical: 30 operations/minute
Contact resistance:50mΩ max.(Initial value)
Insulation resistance:100mΩ min.(at DC500V)
Conventional thermal current:5A
Electric Parameter:AC380V/0.8A   DC220V/0.1A
Dielectric strength:1890VAC, 50/60Hz 1min between terminals of the same polarity
             2500VAC, 50/60Hz 1min between each terminal and non-current-carrying metal parts
             2500VAC, 50/60Hz 1min between current-carrying metal parts and ground
Vibration resistance:Malfunction: 10Hz~55Hz, 1.5mm double amplitude
Shock resistance:Destruction: 1000m/S²     Malfunction: 300m/S²
Ambient temperature:Ambient operation temperature: -5℃~+60℃ with no icing
Ambient humidity:Ambient operation humidity: 90% max.
Life expectancy:Mechanical: 6,000,000 operations min.
         Electrical: 300 000 operations min.
