LX-WL Series Limit Switch

China LX-WL Series Limit Switch supplier

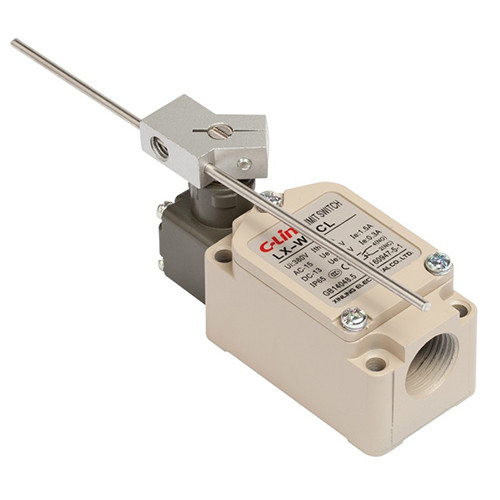

Large Image :  LX-WL Series Limit Switch

Product Details:

Place of Origin: China
Brand Name: Clin
Certification: CE
Model Number: LX-WL Series

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Get Latest Price
Packaging Details: Export packing
Delivery Time: 30 days
Payment Terms: TT
Supply Ability: 50,000 pieces per month
Contact Now
Detailed Product Description

Operating speed:0.5mm~0.5m/s
Operating frequency:Mechanical: 120 operations/minute
             Electrical: 30 operations/minute
Contact resistance:20mΩ max.(Initial value)
Insulation resistance:100mΩ min.(at DC500V)
Conventional thermal current:10A
Electric Parameter:AC220V/1.5A   DC220V/0.3A
Dielectric strength:1890VAC, 50/60Hz 1min between terminals of the same polarity
             2500VAC, 50/60Hz 1min between each terminal and non-current-carrying metal parts
             2500VAC, 50/60Hz 1min between current-carrying metal parts and ground
Vibration resistance:Malfunction: 10Hz~55Hz, 1.5mm double amplitude
Shock resistance:Destruction: 1000m/S²     Malfunction: 300m/S²
Ambient temperature:Ambient operation temperature: -5℃~+80℃ with no icing
Ambient humidity:Ambient operation humidity: 90% max.
Life expectancy:Mechanical: 15,000,000 operations min.
         Electrical: 750 000 operations min.
Degree of protection:IP65
