general purpose relay NNC68AZ(JQX-13FZ)

China general purpose relay NNC68AZ(JQX-13FZ) supplier
general purpose relay NNC68AZ(JQX-13FZ) supplier general purpose relay NNC68AZ(JQX-13FZ) supplier general purpose relay NNC68AZ(JQX-13FZ) supplier general purpose relay NNC68AZ(JQX-13FZ) supplier general purpose relay NNC68AZ(JQX-13FZ) supplier general purpose relay NNC68AZ(JQX-13FZ) supplier

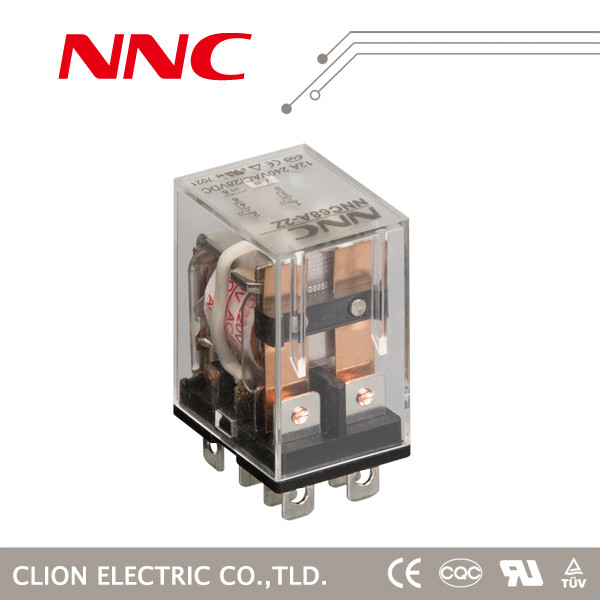

Large Image :  general purpose relay NNC68AZ(JQX-13FZ)

Product Details:

Place of Origin: China
Brand Name: NNC
Certification: CE, CQC,UL
Model Number: NNC68AZ(JQX-13FZ)

Payment & Shipping Terms:

Minimum Order Quantity: 1000
Price: Get Latest Price
Packaging Details: Export packing
Delivery Time: 15-30 days
Payment Terms: TT
Supply Ability: 500000 pieces per month
Contact Now
Detailed Product Description



Part NO.
NNC68AZ(JQX-13FZ)
Dimension
28*21.5*36/27.3*31*35/27.3*41*35
Contact Feature
Form
2A,2B,2C,3A,3B,3C,4A,4B,4C
Rated load
10A/240VAC 28VDC
Contact resistance
≤100mΩ
Material
Silver Alloy
Electrical life
≥1*105
Mechanical life
≥1*107
Operate voltage (23℃)
DC:≤75%*Rated voltage
AC:≤80%*Rated voltage
Release voltage (23℃)
DC:≥10%*Rated voltage
AC:≥30%*Rated voltage
Maximum voltage (23℃)
110%*Rated voltage
Normal coil voltage
DC
6-220V
AC
6-380V
Normal coil power
DC
0.9W
AC
1.2VA
Pick-up time
≤20ms
Release time
≤20ms
Dielectric strength
Between Same-pole contacts
1000VAC/1min(leakage current 1mA)
Between Opposite-pole contacts
1500VAC/1min(leakage current 1mA)
Between contacts and coil
1500VAC/1min(leakage current 1mA)
Insulation resistance
≥100mΩ(500VDC)
Ambient temperature
-25℃ ~55℃
Ambient humidity
45%-75%RH
Atmospheric pressure
86-106KPa
Shock resistance
10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance
10-55Hz (double amplitude: 1.0mm)
Installation
PCB,SOCKET
