Electric power relay JQX-62F-1Z

China Electric power relay JQX-62F-1Z supplier
Electric power relay JQX-62F-1Z supplier Electric power relay JQX-62F-1Z supplier

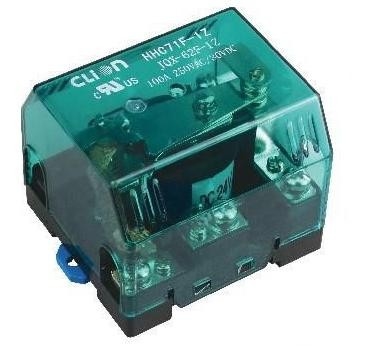

Large Image :  Electric power relay JQX-62F-1Z

Product Details:

Place of Origin: China
Brand Name: clion
Model Number: HHC71F(JQX-62F-1Z)

Payment & Shipping Terms:

Minimum Order Quantity: 100
Price: Get Latest Price
Packaging Details: Export packing
Delivery Time: 30 days
Payment Terms: TT/LC
Supply Ability: 50,000 pieces per month
Port: Shanghai&Ningbo
Contact Now
Detailed Product Description
Theory: Electromagnetic Relay Usage: General Purpose
Size: Miniature Protect Feature: Sealed
Contact Load: High Power

https://clion.en.alibaba.com/product/60602959652-804346879/NNC_power_relay_HHC71F_JQX_62F_1Z_100A_24v_relay_UL_hot_selling_products.html?spm=a2700.8304367.0.0.yRRMuU

Detailed Product Description



1)UL/C-UL approved

2)Big Switching capability

3)Screw mounting

(Power Relay, general purpose relay, Electric Relay )

General Purpose Power Relay :JQX-62F-1Z

Relay Dimension (mm):  64X59X62

Contact arrangement:  1A/1B/1C

Contact capacity:  80A 250VAC/30VDC

Nominal voltage:  6~220VDC, 6~380VAC

Operate/Release time: ≤25ms/15ms

Coil power:  DC: 2.0W, AC: 17.5VA

Contact resistance: ≤100mΩ (1A 24VDC)

Insulation resistance:  ≥500MΩ 500VDC

Dielectric strength  (1mA)

Between contacts:  1500VAC

Between coil & contact:  2500VAC
